Description
The NMB 2410RL-05W-B79 is a high-performance 24V DC axial fan, measuring 60mm x 60mm x 25mm, manufactured by NMB Technologies Corporation. This fan is specifically engineered for robust and reliable cooling in critical electronic systems. It features durable double ball bearings for exceptional longevity, with a Mean Time Between Failure of up to 180,000 hours. Drawing 0.13A of current, it consumes 3.12W of power, operating at 5300 RPM to deliver a strong 28.5 CFM of airflow and generate 0.277 inches of H2O static pressure, with a moderate 38 dBA noise level. Equipped with 3-wire leads that provide speed detection and incorporate a specialized IC design, the NMB 2410RL-05W-B79 is an excellent choice for applications demanding powerful, reliable, and intelligent thermal management.

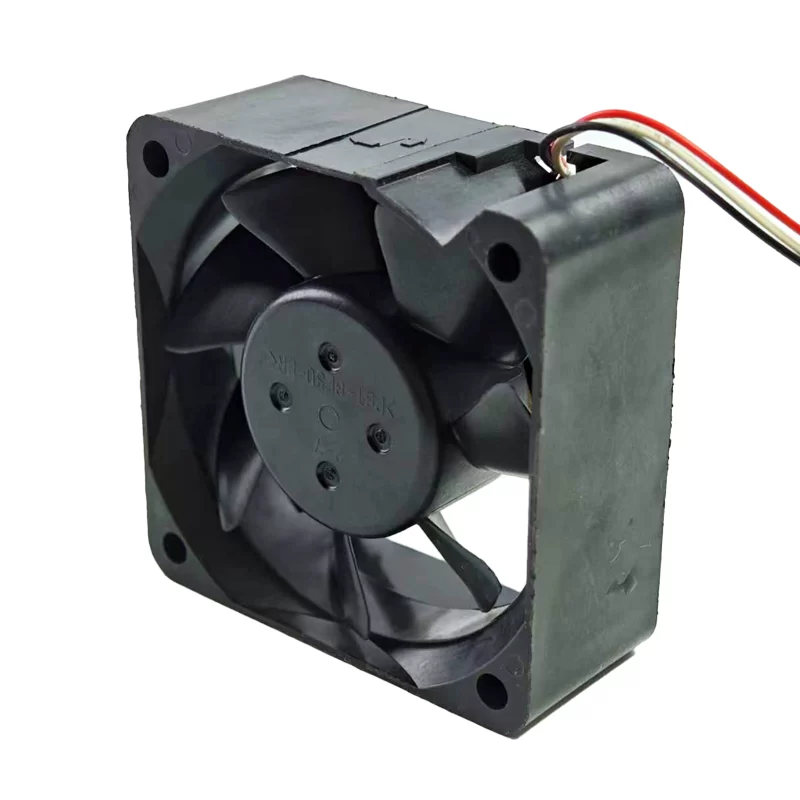

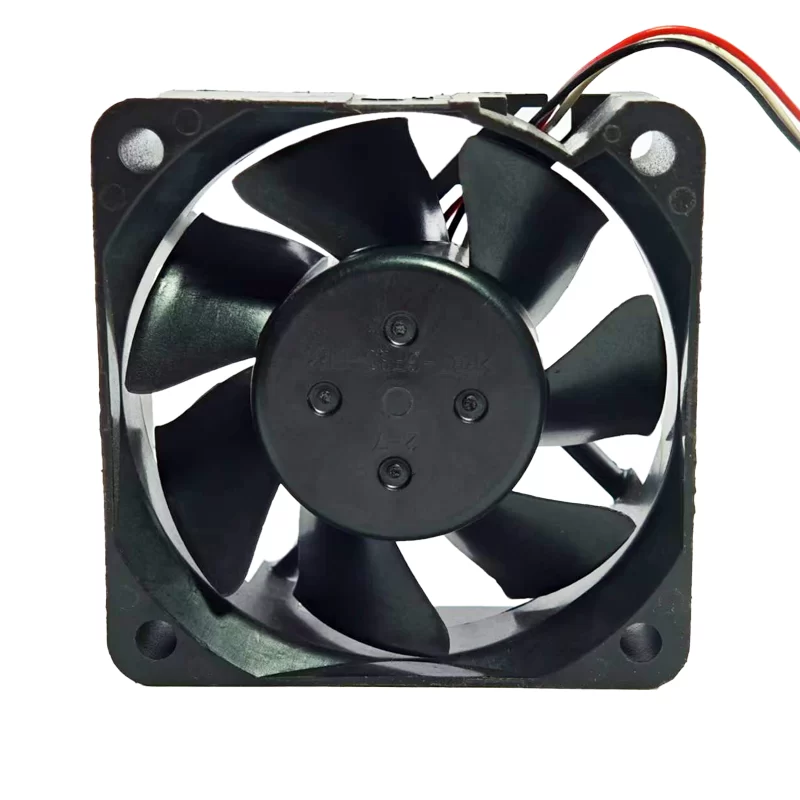

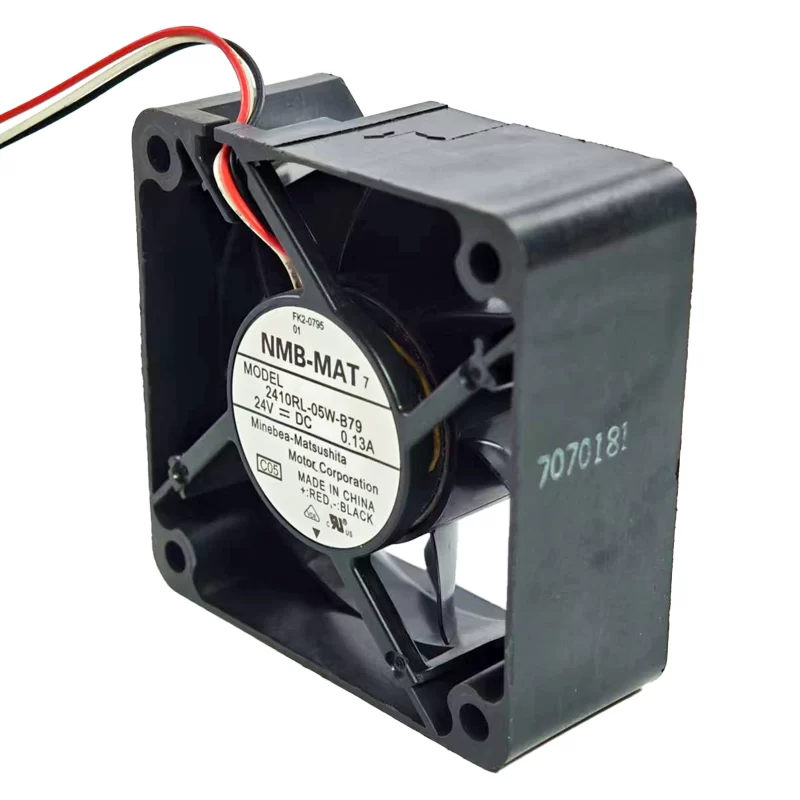

NMB brand new original 2410RL-05W-B79 24V 0.13A 6025 6CM ball cooling fan
Model: 2410RL-05W-B79
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Nominal Voltage: 24V DC
Operating Voltage Range: 15V to 25V DC
Current: 0.13A
Power Consumption: 3.12W
Speed: 5300 RPM
Airflow: 28.5 CFM
Static Pressure: 0.277 In H2O
Noise Level: 38 dBA
Bearing Type: Double Ball Bearing
Life Expectancy: 180,000 Hours
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart, Locked Rotor Sensor / Speed detection, specially designed IC inside.
