Description

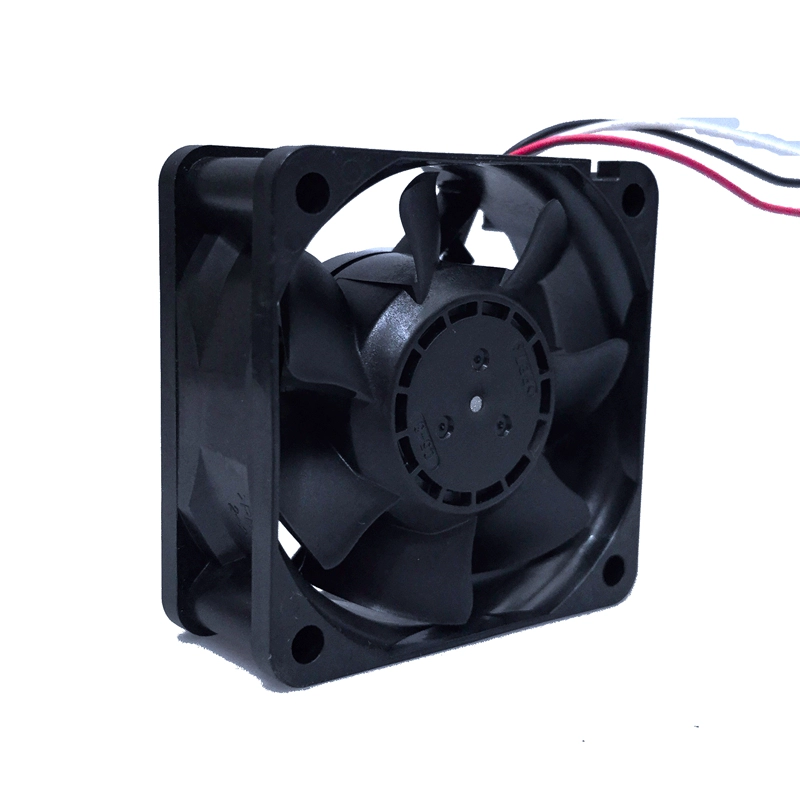

The NMB 2410SB-04W-B59 is a compact and efficient 12V DC axial fan, measuring 60mm x 60mm x 25mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in various electronic applications that require balanced performance and moderate noise. It features durable ball bearings, contributing to an extended operational lifespan of 100,000 hours at 25°C. Drawing 0.2A of current, it consumes 2.4W of power. This fan operates at a speed of 5200 RPM, delivering 26.5 CFM of airflow and generating 0.30 inches of H2O static pressure, with a moderate 36 dBA noise level. Equipped with 3-wire leads, it commonly includes a locked rotor sensor or a speed sensor for monitoring. The NMB 2410SB-04W-B59 is an excellent choice for cooling components in power supplies, smaller computer systems, networking equipment, and other electronic enclosures that require effective and reliable thermal management in a compact form factor.
New NMB fan 2410SB-04W-B59 6025 DC12V ball 3-line alarm 6CM cooling fan
Model: 2410SB-04W-B59
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Nominal Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Current: 0.2A
Power Consumption: 2.4W
Speed: 5200 RPM
Airflow: 26.5 CFM
Static Pressure: 0.30 In H2O
Noise Level: 36 dBA
Bearing Type: Ball Bearing
Life Expectancy: 100,000 Hours (at 25°C, L10)
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, locked rotor sensor (or Tachometer/Speed Sensor output).
