Description

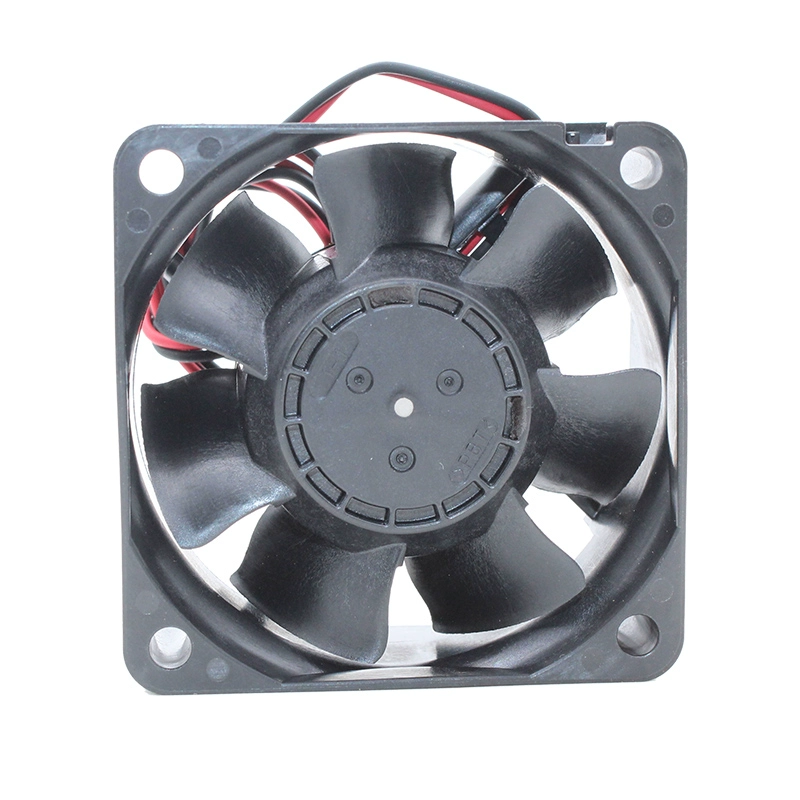

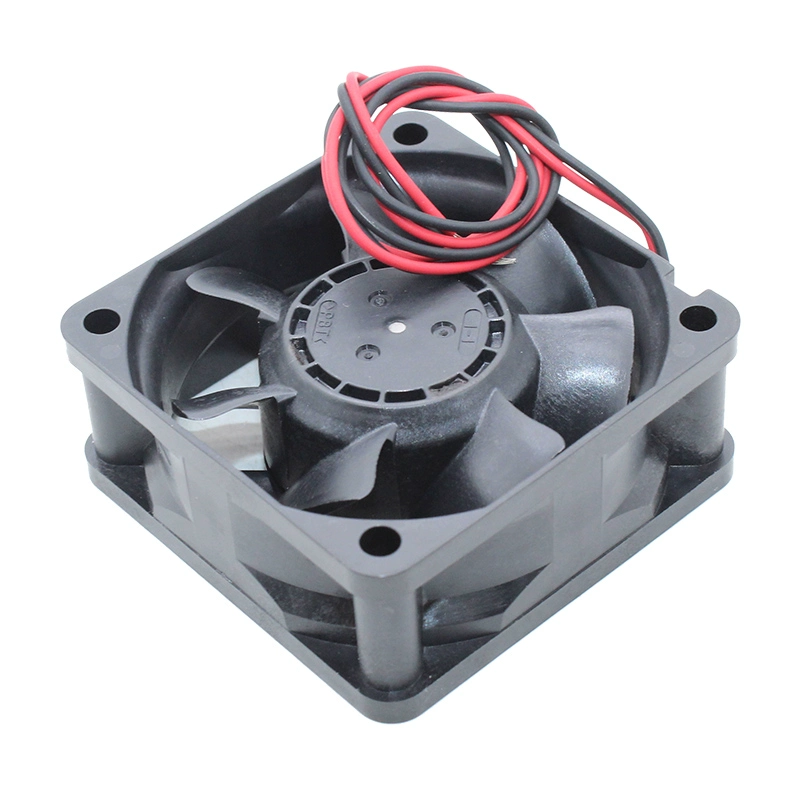

Model:2410SB-04W-B60
Manufacturer: NMB Technologies
Series: 2410SB
Dimensions: 60x60x25mm
Bearing Type: Dual Ball Bearing
Termination Style: Wire Leads (2 wires)
Electrical Parameters:
Rated Voltage: 12 VDC
Operating Voltage Range: 6 VDC ~ 13.8 VDC
Rated Current: 0.17 A
Input Power: 2.04 W
Maximum Airflow:
24 CFM (Cubic Feet per Minute)
0.68 m³/min (Cubic Meters per Minute)
Maximum Static Pressure:
0.27 in H2O (Inches of Water)
68 Pa (Pascals)
Fan Speed: 4900 RPM (Revolutions Per Minute)
Noise Level: 33.0 dB (Decibels) – relatively quiet.
Life Expectancy: Typically 100,000 hours (L10) at 25°C, and 40,000 hours at 60°C.
Weight: 56 g (grams)
RoHS Compliance: Compliant with RoHS directives.
Protection Features: Auto Restart/Polarity Protection
Operating Temperature Range: -10°C to +70°C (Operation)
Storage Temperature Range: -40°C to +70°C (Storage)
Housing: Plastic (black) 94V-0 (flame retardant rating)
Impeller: Plastic (black) 94V-0 (flame retardant rating)
Lead Wires: UL1007, AWG24, Red wire for positive (+), Black wire for negative (-)
Rotation Direction: Clockwise (viewed from the front of the fan)
Airflow Direction: Air flows out over the struts.
Application Areas:
DC axial fans of this size and performance are commonly used in:
Computer and server cooling
Industrial control cabinet cooling
Medical equipment
Communication equipment
Localized cooling for various electronic devices
2410SB-04W-B60 NMB fan 6025 12V 0.22A 6 cm silent high wind cooling fan
Type: DC Tubeaxial Fan
The NMB 2410SB-04W-B60 is a compact 60x60x25mm 12V DC axial fan, offering efficient cooling with its high rotation speed of up to 4900 RPM and a powerful 24 CFM airflow, while keeping noise levels at 33 dB. Its ball bearing design ensures a long lifespan and high reliability, complemented by auto-restart and reverse polarity protection, making it an ideal choice for compact devices requiring high-performance and stable cooling.
