Description

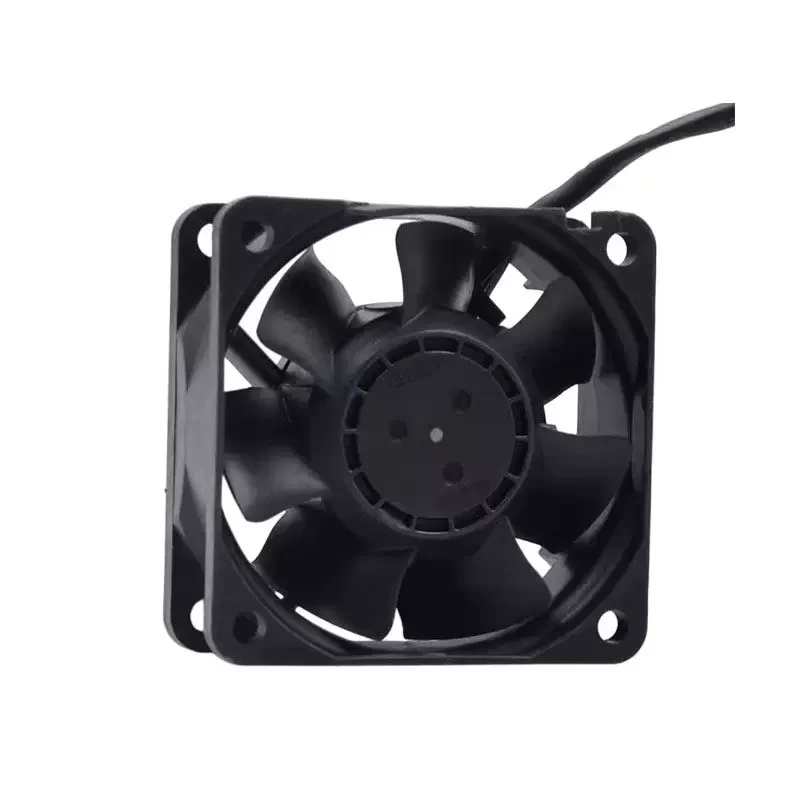

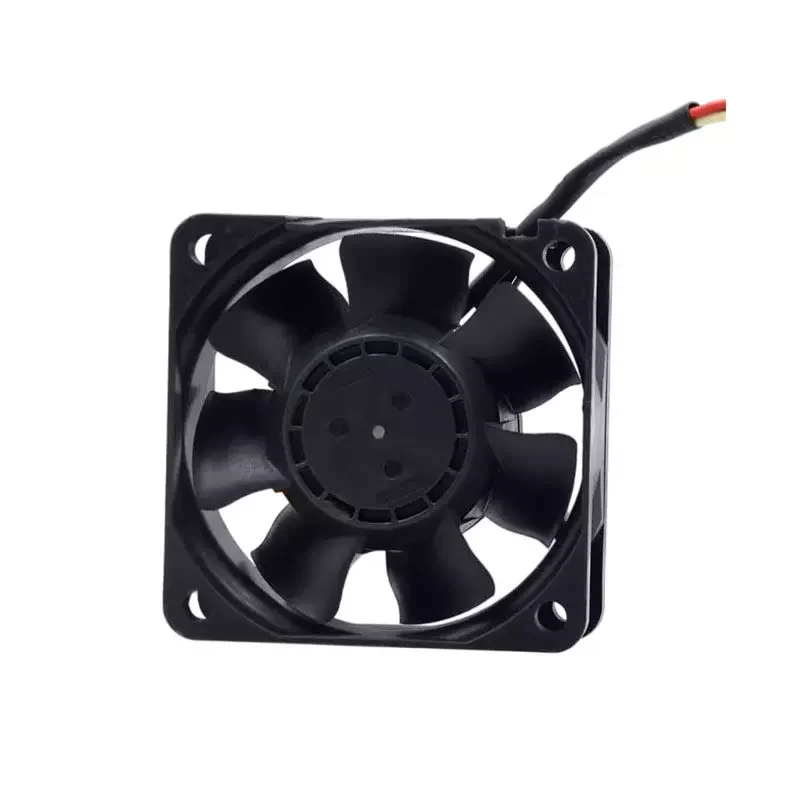

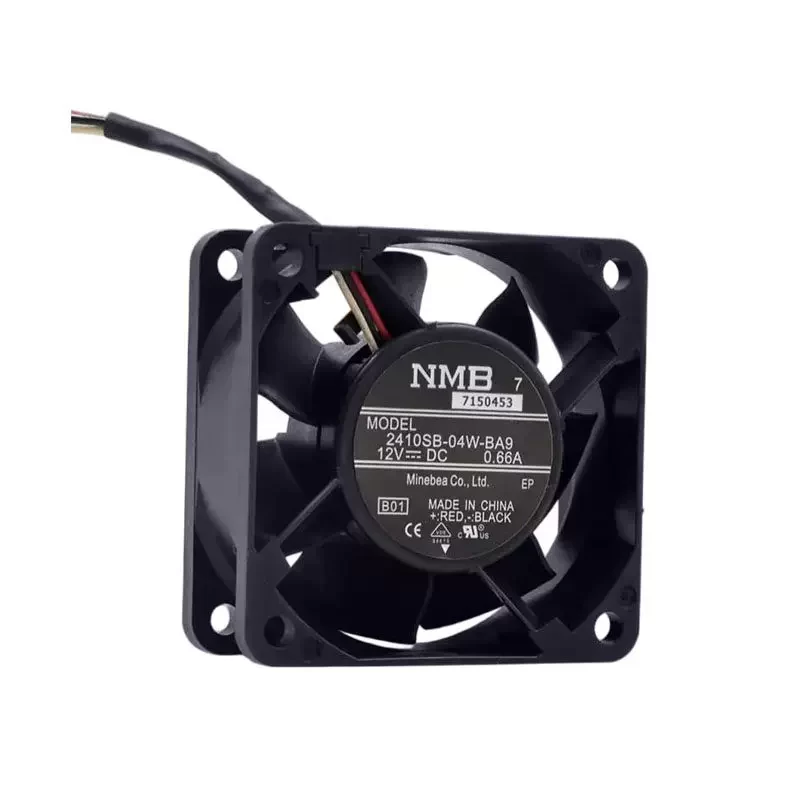

The NMB 2410SB-04W-BA9-B01 is a high-performance 12 VDC DC Axial Fan with dimensions of 60 x 60 x 25 mm, specifically engineered for precision thermal management in industrial frequency converters and electrical control cabinets. Driven by a high-output brushless motor with a nominal current of 0.66 A and a power consumption of 7.92 W, this unit operates at an elevated rated speed to deliver maximum airflow for efficient heat extraction. Constructed with a reinforced UL94V-0 plastic housing and a 7-blade high-velocity impeller system featuring high-precision NMB dual ball bearings and a 3-wire speed monitoring interface, this 65 g unit provides a dependable and energy-efficient air-moving solution with locked rotor protection, ensuring maximum cooling performance and long-term mechanical stability for high-power inverters, variable frequency drives (VFD), and integrated electrical switchgear systems at the end.
2410SB-04W-BA9-B01 Fan Parameters
Model Number: 2410SB-04W-BA9-B01
Manufacturer: NMB Technologies Corporation
Series: 2410SB
Type: DC Axial Fan
Impeller Size: 55 mm
Dimensions: 60 x 60 x 25 mm
Weight: 65 g
Bearing Type: Dual Ball Bearing
Nominal Voltage: 12 VDC
Voltage Range: 6.0 – 13.8 VDC
Power Consumption: 7.92 W
Nominal Current: 0.66 A
Speed: 6800 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 38.5 CFM (65.4 m³/h)
Actual Static Pressure: 0.48 inAq (120.0 Pa)
Noise Level: 45.0 dB(A)
Motor Protection: Auto Restart / Polarity Protection
Insulation Class: Class E
Electrical Hookup: 3 Lead wires (Red/Black/White)
Number of Blades: 7
Direction of Rotation: Counter-clockwise, viewed toward rotor
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Installation Position: Any
Operating Temperature: -10 – +70 °C
Storage Temperature: -40 – +70 °C
Standard Compliance: UL; CSA; VDE; CE
Application
The NMB 2410SB-04W-BA9-B01 DC fan is primarily utilized in industrial frequency converters, power inverters, and electrical control cabinet heat dissipation systems.
