Description

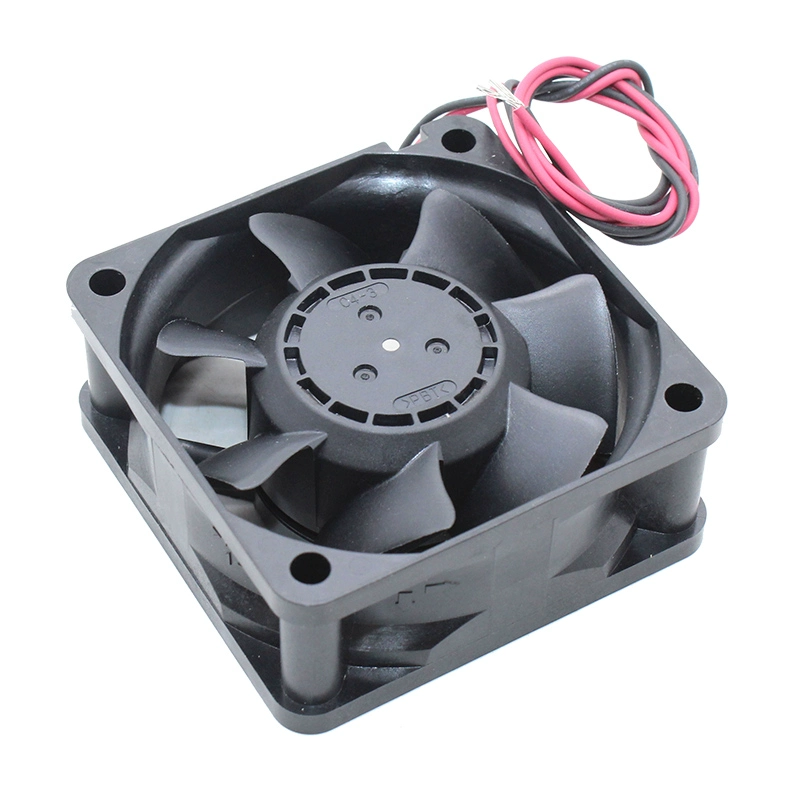

The NMB 2410SB-05W-B70-B02 is a compact 24V DC axial cooling fan. Measuring 60mm x 60mm x 25mm, this fan is well-suited for cooling applications in various electronic devices, network equipment, and small industrial controls where reliable airflow is needed in a confined space. It operates at a rated voltage of 24V DC and draws a current of 0.13A, resulting in a power consumption of 3.12W. This allows it to achieve a rotational speed of 5300 RPM, delivering an airflow of 26.8 CFM and a static pressure of 0.32 inch-H2O. Its noise level is 35 dBA. The fan features durable ball bearings for an extended operational lifespan of 40,000 hours at 60°C. It commonly comes with 2-wire leads for power connection and offers auto-restart and polarity protection.
Model Number: 2410SB-05W-B70-B02
Manufacturer: NMB Technologies Corporation
Series: 2410SB Series
Type: DC Axial Cooling Fan (Tubeaxial)
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 27.6V DC
Rated Current: 0.13A
Rated Power: 3.12W (calculated: 24V * 0.13A)
Speed: 5300 RPM
Airflow: 26.8 CFM (0.76 m³/min)
Static Pressure: 0.32 inch-H2O (80 Pa)
Noise Level: 35 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (L10 Life)
Frame Material: Plastic
Impeller (Blade) Material: Plastic
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
Weight: 56g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
