Description

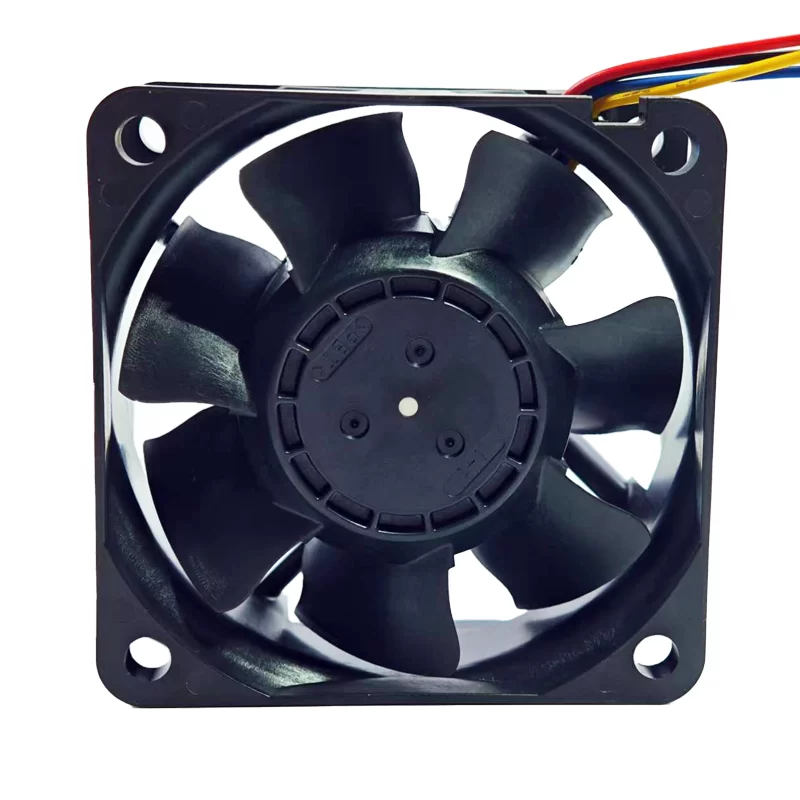

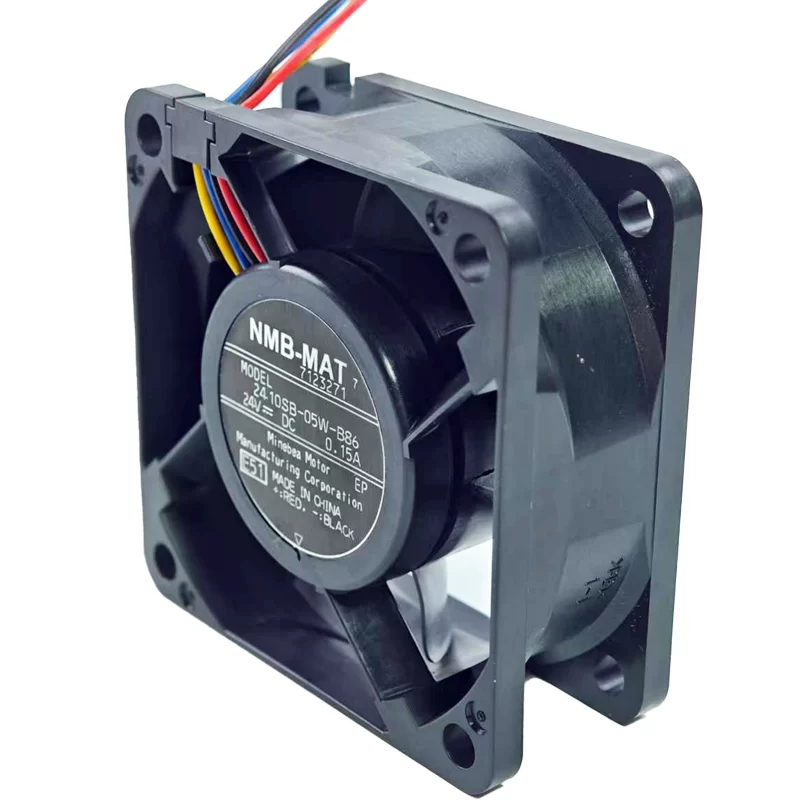

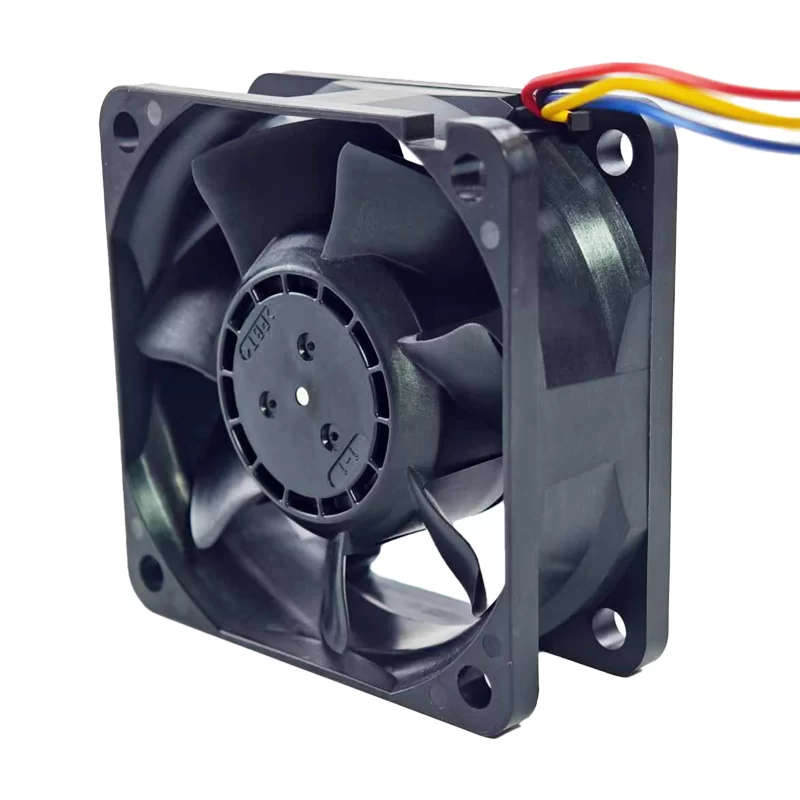

The NMB 2410SB-05W-B86 is a versatile 24V DC axial fan, measuring 60mm x 60mm x 25mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable and efficient cooling in various electronic systems. It features durable ball bearings, contributing to a long operational lifespan of 60,000 hours at 40°C. Drawing 0.15A of current, it consumes 3.6W of power. This fan operates at 4800 RPM, delivering 25 CFM of airflow and generating 0.22 inches of H2O static pressure, with a moderate 35 dBA noise level. Equipped with 4-wire leads, it commonly offers capabilities for speed control via PWM or speed sensing via a tachometer output, making it suitable for applications requiring dynamic thermal management. The NMB 2410SB-05W-B86 is an excellent choice for cooling components in servers, industrial equipment, power supplies, and other electronic enclosures that require effective and dependable airflow.
2410SB-05W-B86 NMB 24V 0.15A DC axial fan
Model: 2410SB-05W-B86
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Nominal Voltage: 24V DC
Operating Voltage Range: 10V to 27.6V DC
Current: 0.15A
Power Consumption: 3.6W
Speed: 4800 RPM
Airflow: 25 CFM
Static Pressure: 0.22 In H2O
Noise Level: 35 dBA
Bearing Type: Ball Bearing
Life Expectancy: 60,000 Hours (at 40°C, L10)
Termination: 4-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart, often includes speed sensing or PWM control.
