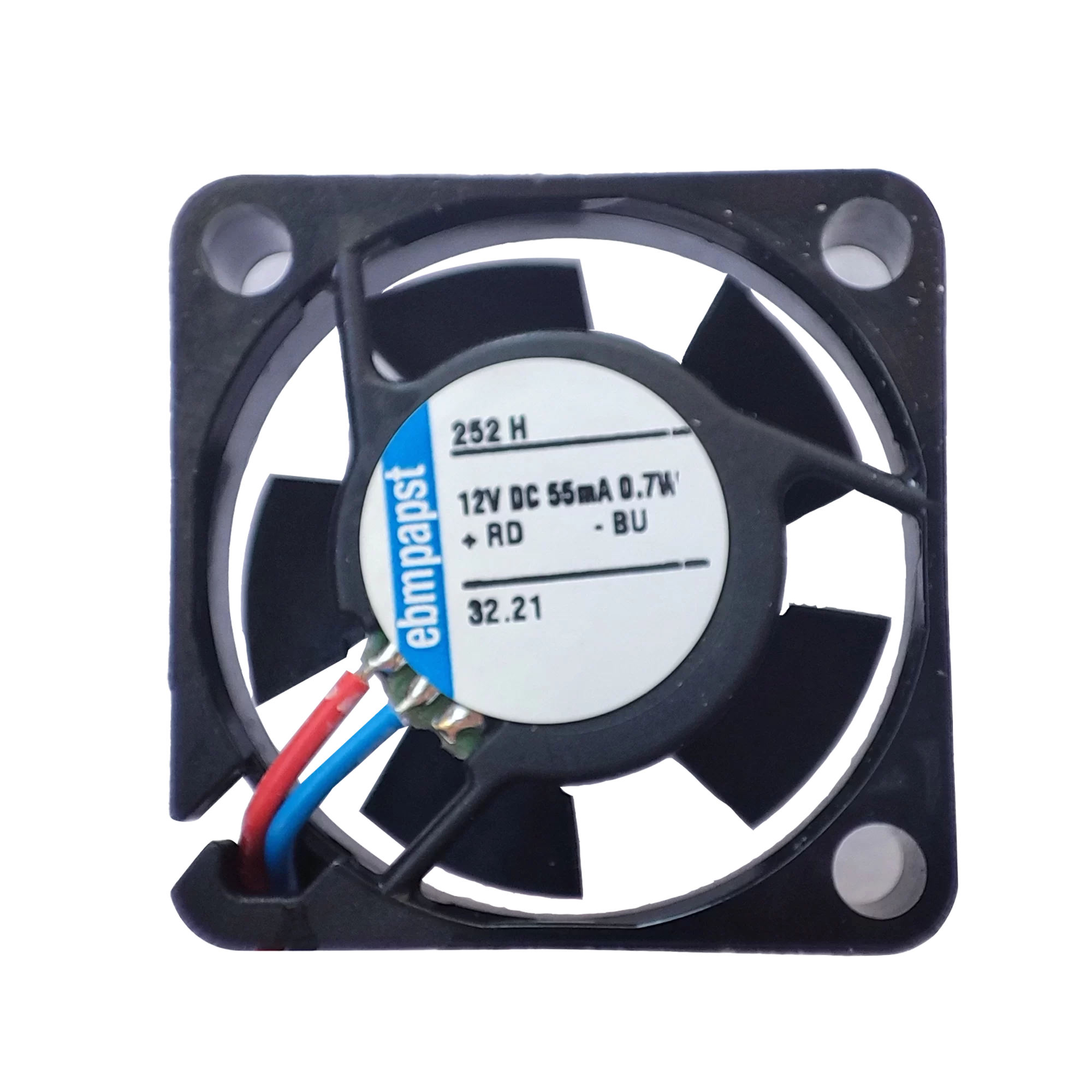

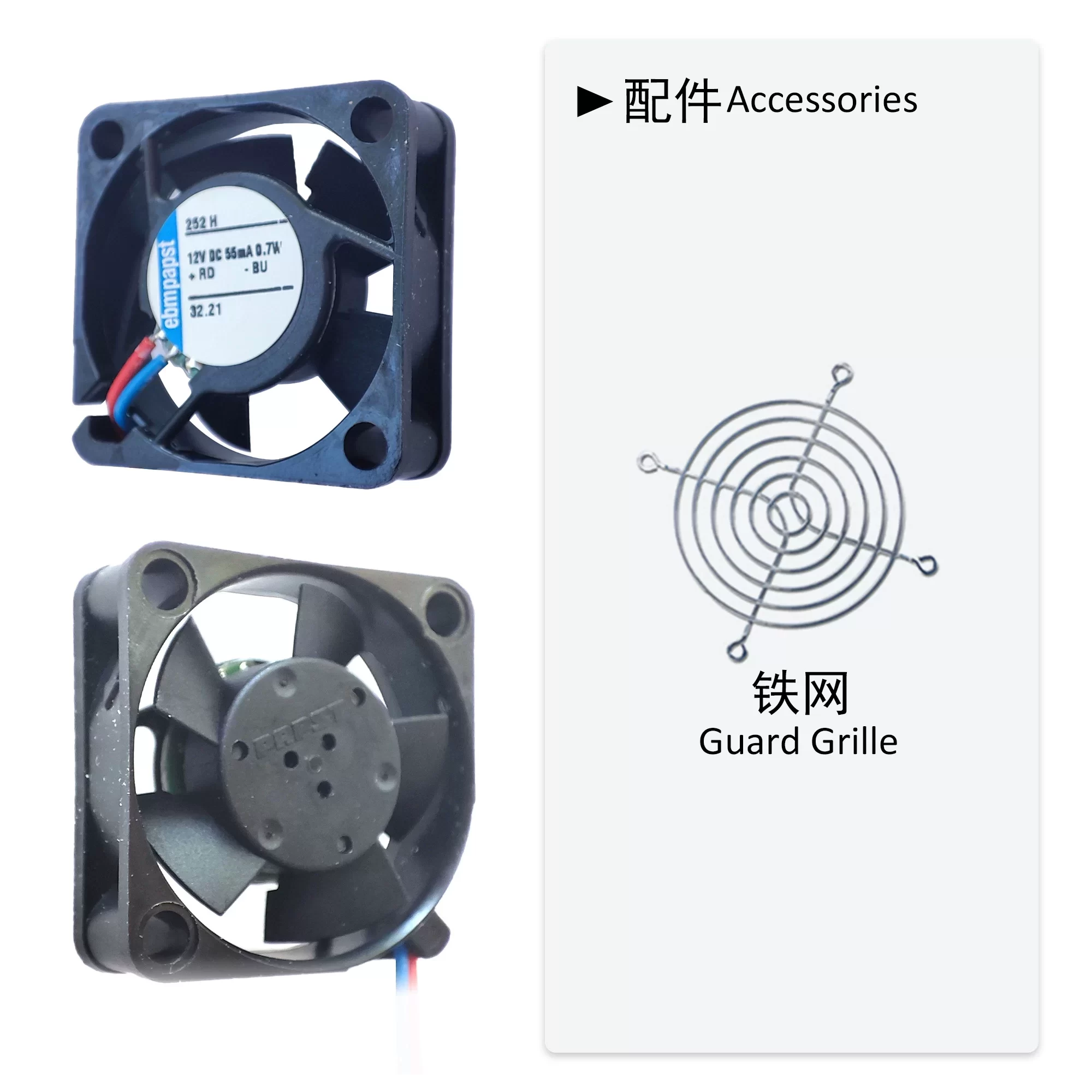

252H ebmpapst 12V DC Axial Fan

Description

The ebmpapst 252H is a 12VDC axial fan with dimensions of 25x25x8mm. Operating within a 10-14VDC range, it draws 55mA of current and consumes 0.7W of power. This fan delivers an airflow of 4.6m³/h (2.7CFM) and operates at a high speed of 12000RPM, with a low noise level of 23dB(A). Featuring 2 wire leads, it is constructed with a glass-fiber reinforced PBT plastic housing and a glass-fiber reinforced PA plastic impeller. It is suitable for reliable operation within an ambient temperature range of -10 to 55°C and has a typical service life of 35,000hours at 20°C and 15,000hours at 60°C.

252H Fan Parameters
Manufacturer: ebmpapst
Model: 252H
Fan Type: DC Axial Fan
Dimensions: 25 x 25 x 8 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10 ~ 14 VDC
Current Rating: 55 mA
Power Consumption: 0.7 W
Airflow: 4.6 m³/h (2.7 CFM)
Speed: 12000 RPM
Noise Level: 23 dB(A)
Termination: 2 Wire Leads
Operating Temperature: -10 ~ 55°C
Lifetime @ Temp: 35,000 Hours (at 20°C), 15,000 Hours (at 60°C)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Weight: 0.005 kg
Approval Agency: VDE, CSA, UL
Application: This ebmpapst DC axial fan is suitable for compact cooling solutions in sensitive electronic devices, small enclosures, and applications where precise and quiet airflow is required within a confined space.
