Description

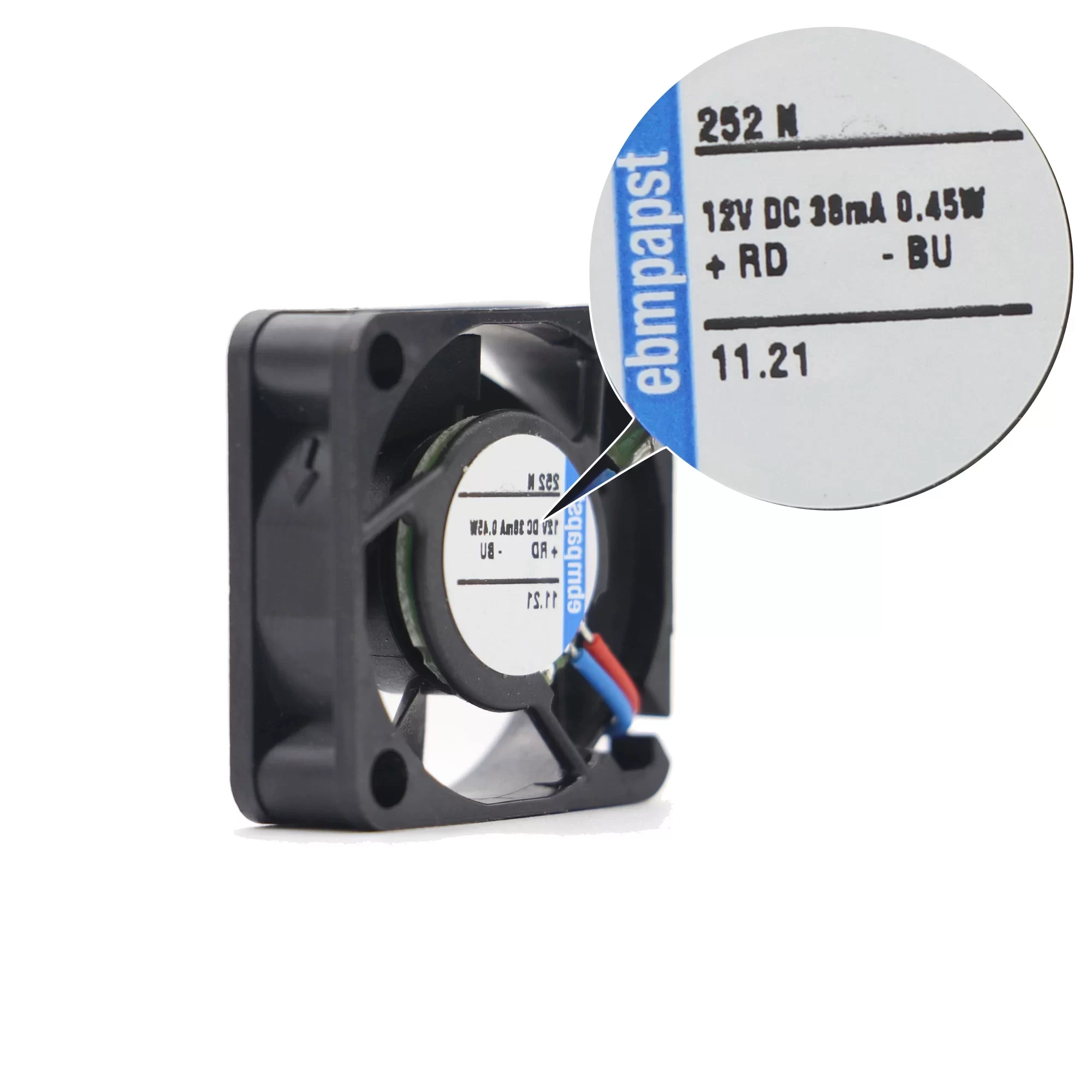

The ebmpapst 252N is a miniature 12V DC axial fan, measuring 25x25x8mm, designed for cooling in extremely compact applications. Operating at 12VDC within a 10-14V range, it consumes 0.5W of power. This tiny fan delivers an airflow of 3.4m³/h (2.0CFM) at a speed of 9000RPM, with a low noise level of 15dB(A). Featuring a durable Sintec (sleeve) bearing and 2 wire leads, it’s built with a robust plastic frame and impeller, ensuring reliable performance within an ambient temperature range of -10 to 70°C, and is certified by VDE, CSA, UL, and CE.
252N Fan Parameters
Manufacturer: ebmpapst
Model: 252N
Fan Type: Axial Fan
Dimensions: 25 x 25 x 8 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10 ~ 14 VDC
Current Rating: Not specified
Power Consumption: 0.5 W
Airflow: 3.4 m³/h (2.0 CFM)
Static Pressure: Not specified
Speed: 9000 RPM
Noise Level: 15 dB(A)
Bearing Type: Sintec (Sleeve Bearing)
Termination: 2 Wire Leads
Operating Temperature: -10 ~ 70°C
Lifetime @ Temp: 80,000 Hours (at 20°C)
Frame Material: Plastic (PBT, fiberglass reinforced)
Blade Material: Plastic (PA, fiberglass reinforced)
IP Rating: IP20
Weight: 0.005 kg
Approval Agency: VDE, CSA, UL, CE
Application: This ebmpapst DC axial fan is suitable for cooling very small electronic components, embedded systems, portable devices, and other applications where space is extremely limited and quiet, efficient airflow is required.
