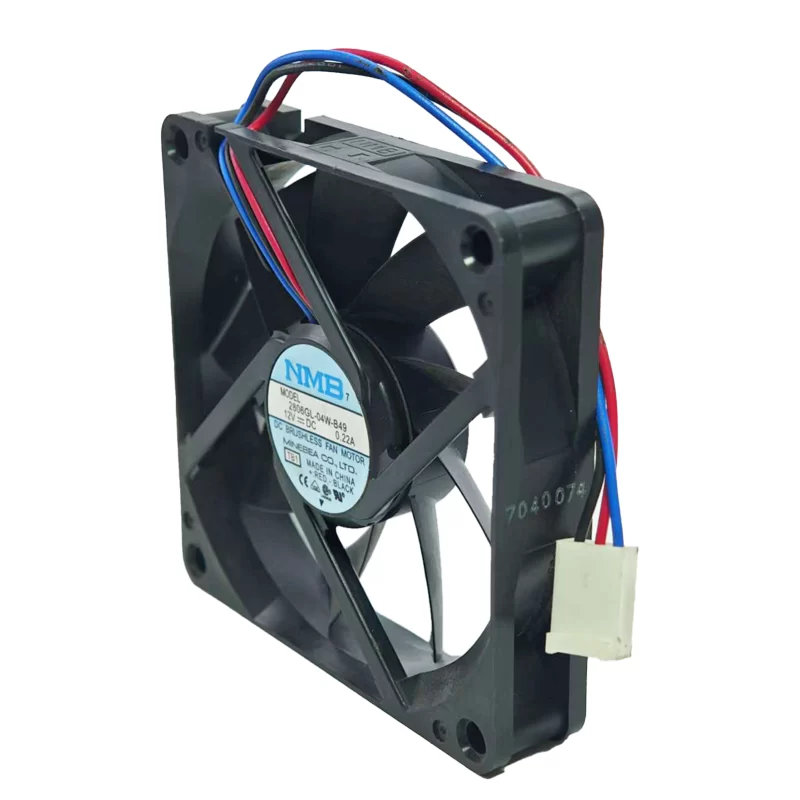

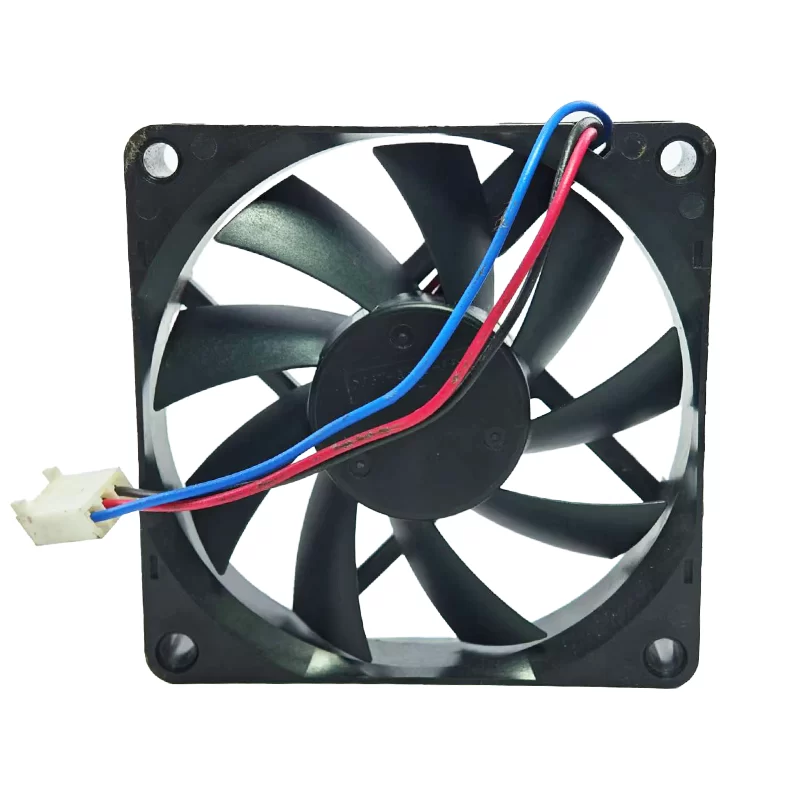

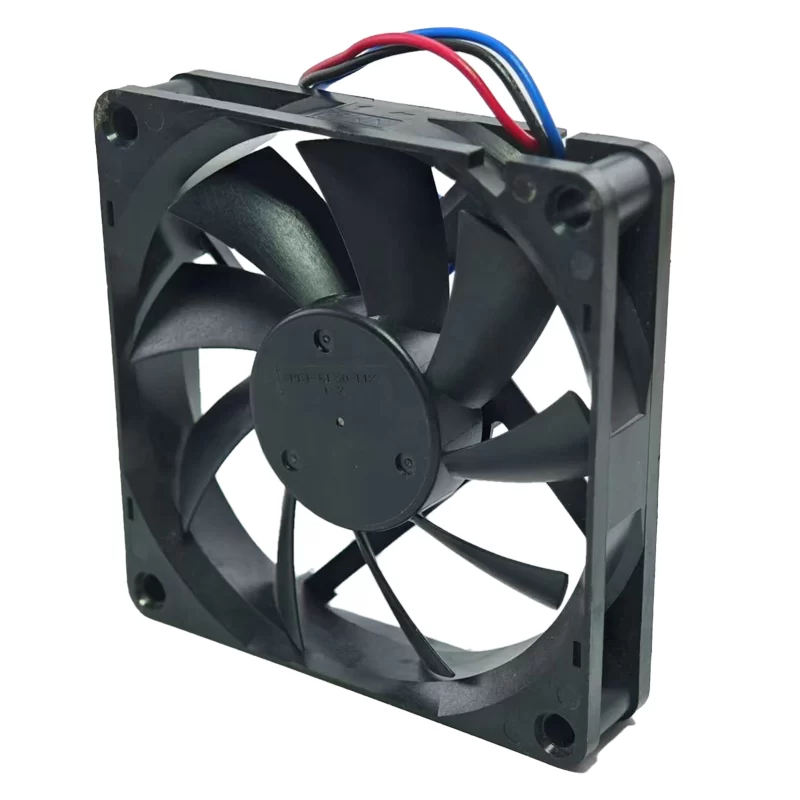

2806GL-04W-B49 NMB 12V 0.22A 3-wire axial fan

Description

The NMB 2806GL-04W-B49 is a compact and efficient 12V DC axial fan, measuring 70mm x 70mm x 15mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in various electronic systems where moderate airflow is needed in a slim profile. It features durable ball bearings, contributing to a long operational lifespan of 70,000 hours at 40°C. Drawing 0.22A of current, it consumes 2.64W of power. This fan operates at 4500 RPM, delivering 30 CFM of airflow and generating 0.18 inches of H2O static pressure, with a moderate 36 dBA noise level. Equipped with 3-wire leads that provide a tachometer output for speed monitoring, the NMB 2806GL-04W-B49 is an excellent choice for cooling components in computer cases, networking devices, industrial control panels, and other electronic enclosures that require effective and dependable thermal management.
Model: 2806GL-04W-B49
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 70mm x 70mm x 15mm
Nominal Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Current: 0.22A
Power Consumption: 2.64W
Speed: 4500 RPM
Airflow: 30 CFM
Static Pressure: 0.18 In H2O
Noise Level: 36 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart, Tachometer (FG) output for speed sensing.
