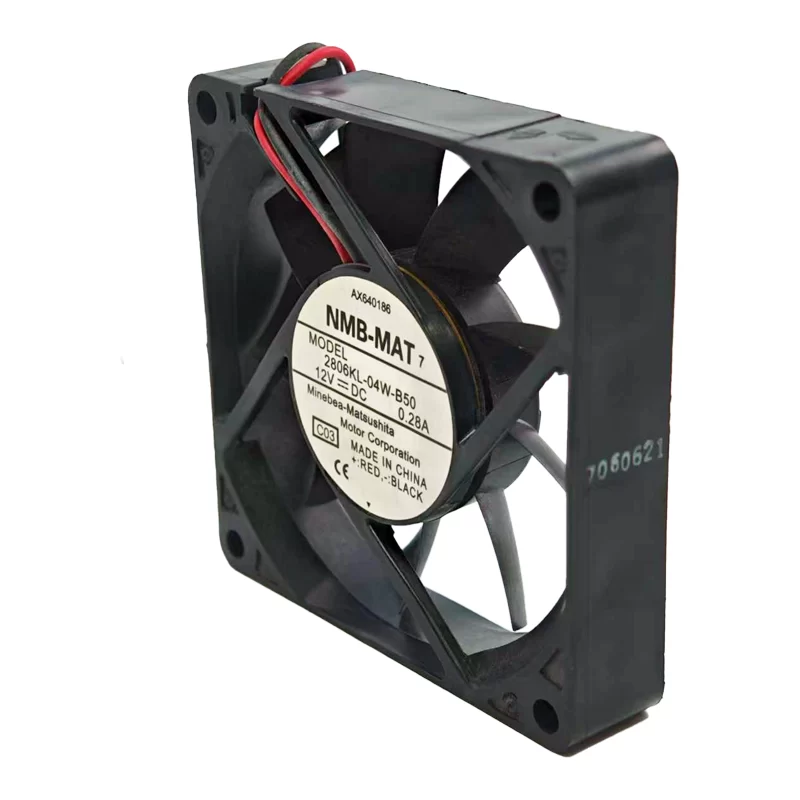

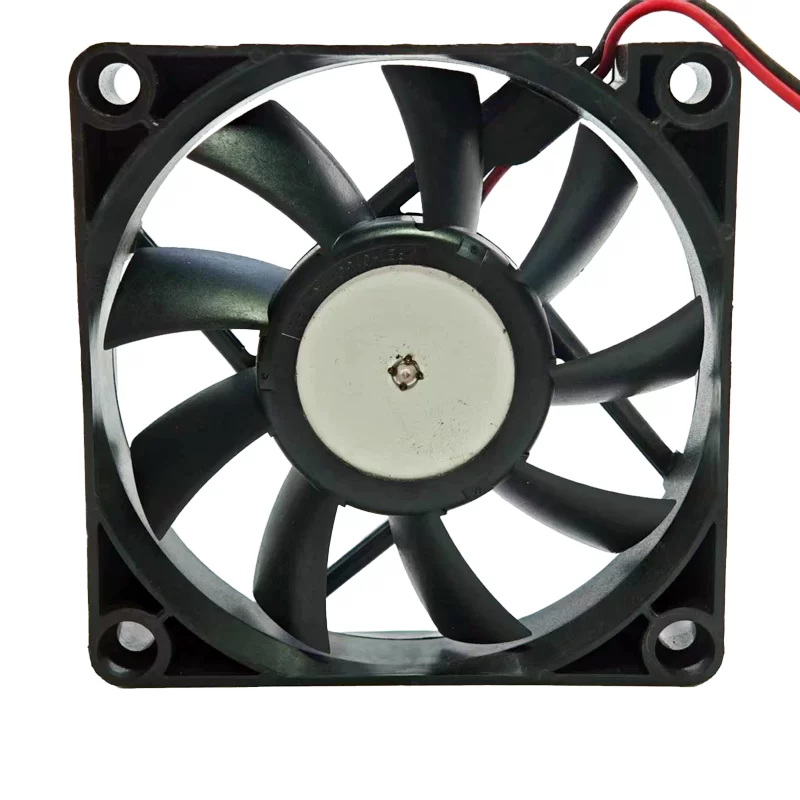

Description
The NMB 2806KL-04W-B50 is a compact and efficient 12V DC axial fan, measuring 70mm x 70mm x 15mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in various electronic systems where moderate airflow is needed in a slim profile. It features durable ball bearings, contributing to a long operational lifespan of 60,000 hours at 40°C. Drawing 0.28A of current, it consumes 3.36W of power. This fan operates at 4200 RPM, delivering 35 CFM of airflow and generating 0.20 inches of H2O static pressure, with a moderate 37 dBA noise level. Equipped with 2-wire leads, the NMB 2806KL-04W-B50 is an excellent choice for cooling components in computer cases, networking devices, industrial control panels, and other electronic enclosures that require effective and dependable thermal management.
Model: 2806KL-04W-B50
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 70mm x 70mm x 15mm
Nominal Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.2V DC
Current: 0.28A
Power Consumption: 3.36W
Speed: 4200 RPM
Airflow: 35 CFM
Static Pressure: 0.20 In H2O
Noise Level: 37 dBA
Bearing Type: Ball Bearing
Life Expectancy: 60,000 Hours (at 40°C, L10)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected.
