Description

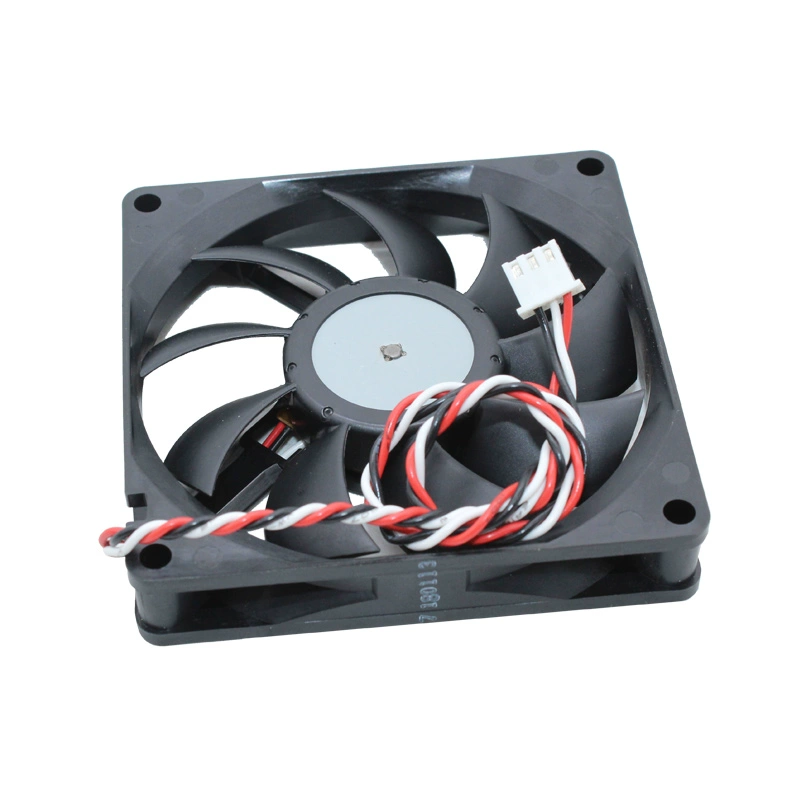

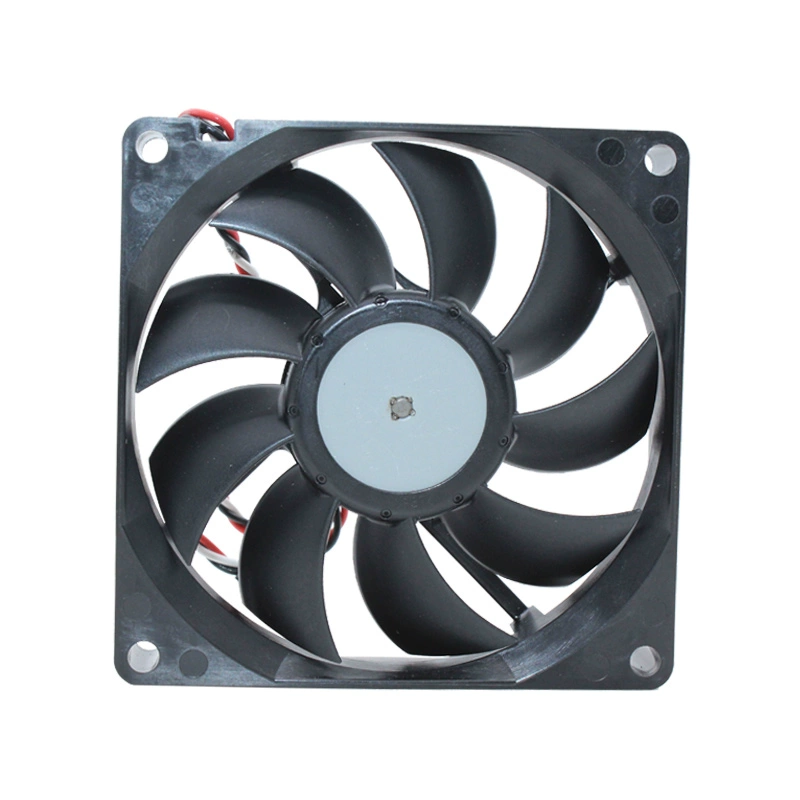

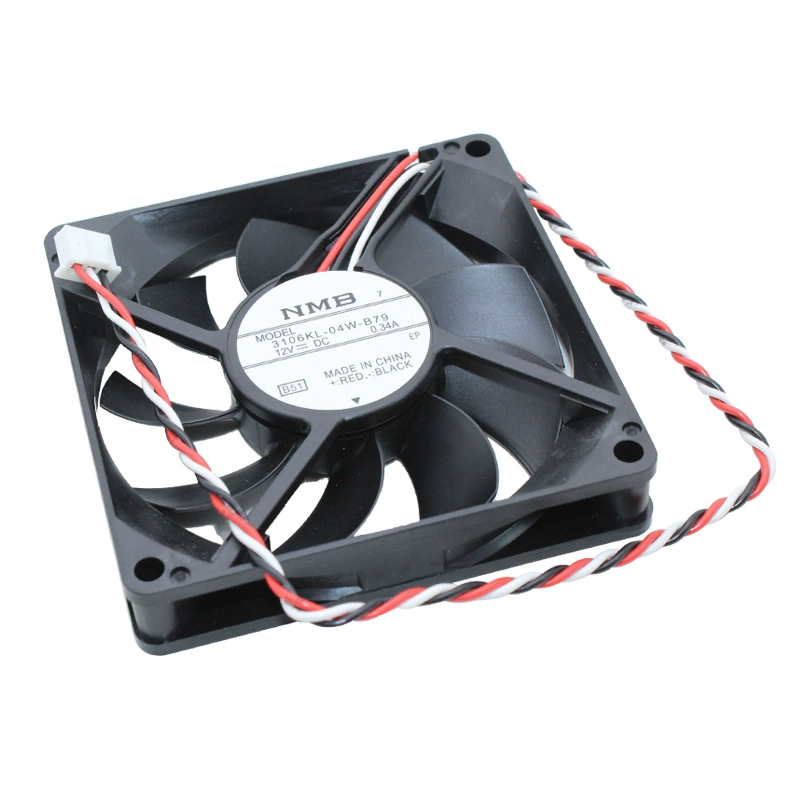

The NMB 3106KL-04W-B79-B51, now specified with a 0.34A current, is an even more powerful 12V DC axial cooling fan from NMB Technologies, maintaining its 80x80x15mm slim profile. This variant is designed for demanding thermal management in confined spaces where high airflow is crucial. It consumes 4.08W to operate at an estimated 3850 RPM, delivering a robust 41.0 CFM of airflow and a static pressure of 0.23 inch-H2O. Equipped with durable ball bearings, it offers a reliable life expectancy of 70,000 hours at 25°C. Its 3-wire configuration includes a speed sensor for monitoring, making it a strong choice for efficient and controlled cooling, at an estimated noise level of 40.0 dBA.
Model Number: 3106KL-04W-B79-B51
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.34A
Rated Power: 4.08W
Speed: 3850 RPM
Airflow: 41.0 CFM / 1.16 m³/min
Static Pressure: 0.23 inch-H2O / 57 Pa
Noise Level: 40.0 dBA
Dimensions: 80mm x 80mm x 15mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor
