Description

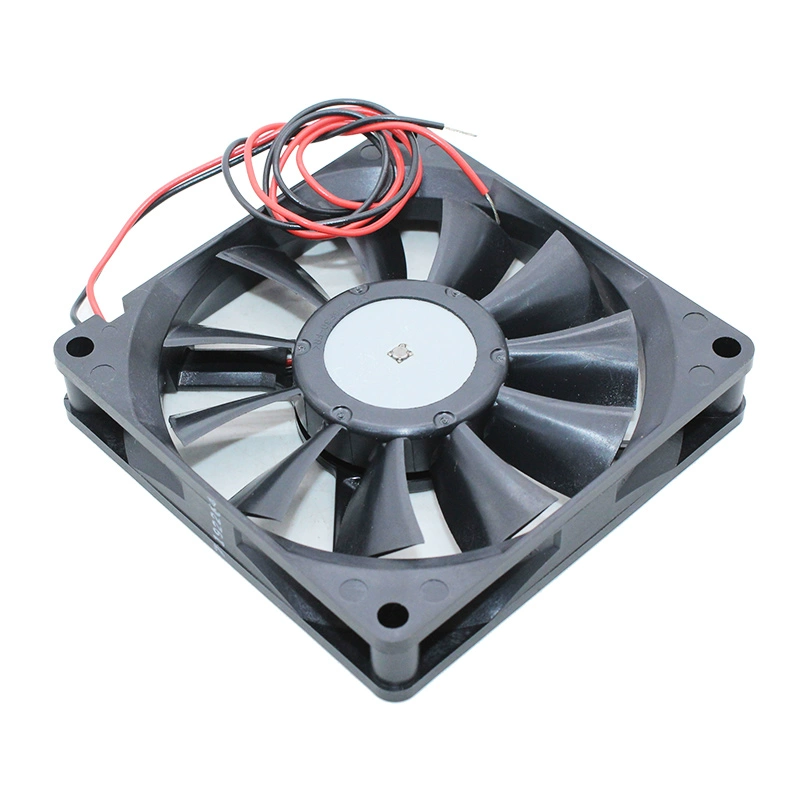

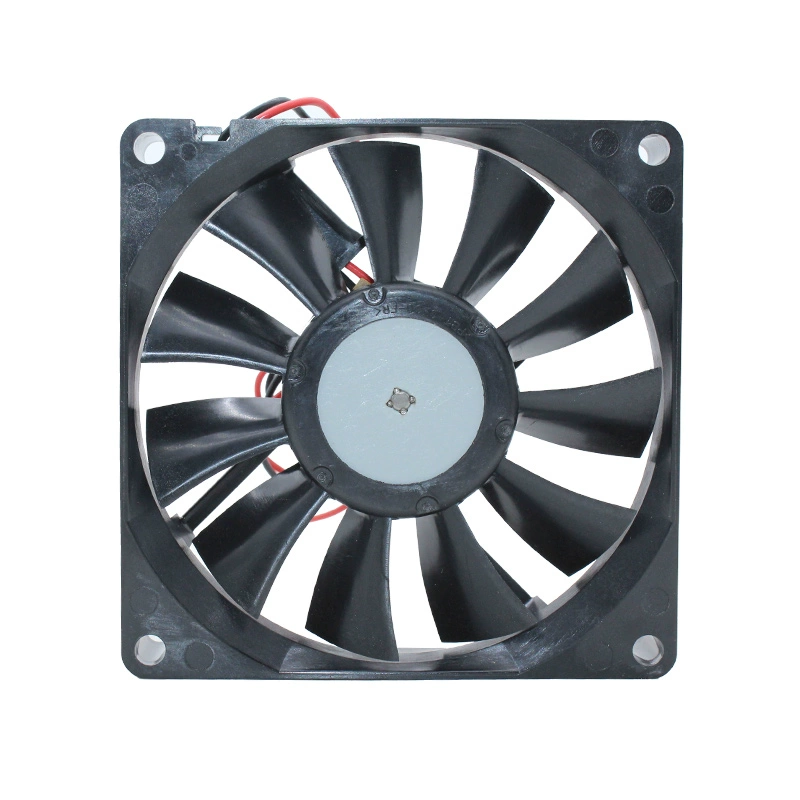

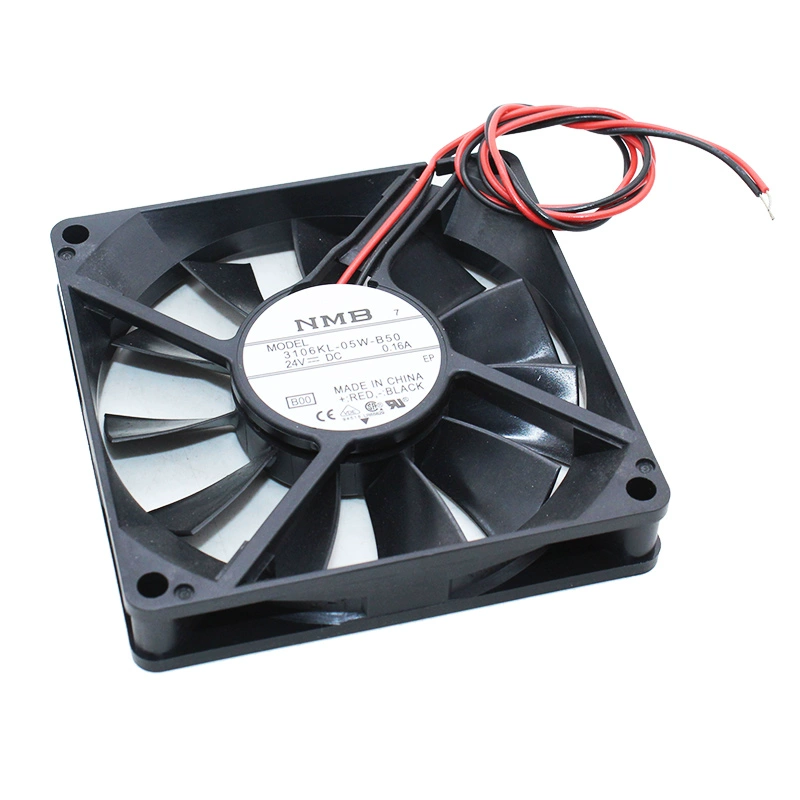

The NMB 3106KL-05W-B50-B00 is a compact DC Axial Cooling Fan from NMB Technologies, designed for efficient thermal management in space-constrained electronic systems. Operating on 24V DC power, it draws 0.16A of current, resulting in a 3.84W power consumption. Measuring 80mm x 80mm x 15mm, this slim fan is suitable for applications requiring effective cooling. It rotates at a speed of 3600 RPM, delivering an airflow of 40.6 CFM and a static pressure of 0.18 inch-H2O. With a noise level of 39 dBA, it provides robust cooling. Equipped with 2-wire leads and durable ball bearings, the fan boasts a long life expectancy of 70,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 50°C and includes essential protective features such as auto restart and polarity protection, ensuring dependable performance.
3106KL-05W-B50-B00 NMB 24V 0.16A DC axial fan
Model Number: 3106KL-05W-B50-B00
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 27.6V DC
Rated Current: 0.16A
Rated Power: 3.84W
Speed: 3600 RPM
Airflow: 40.6 CFM (1.15 m³/min)
Static Pressure: 0.18 inch-H2O (44.8 Pa)
Noise Level: 39 dBA
Dimensions: 80mm x 80mm x 15mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C (L10)
Operating Temperature: -10°C to 50°C
Frame Material: Plastic UL94V-0
Impeller Material: Plastic UL94V-0
Features: Auto Restart, Polarity Protection
