Description

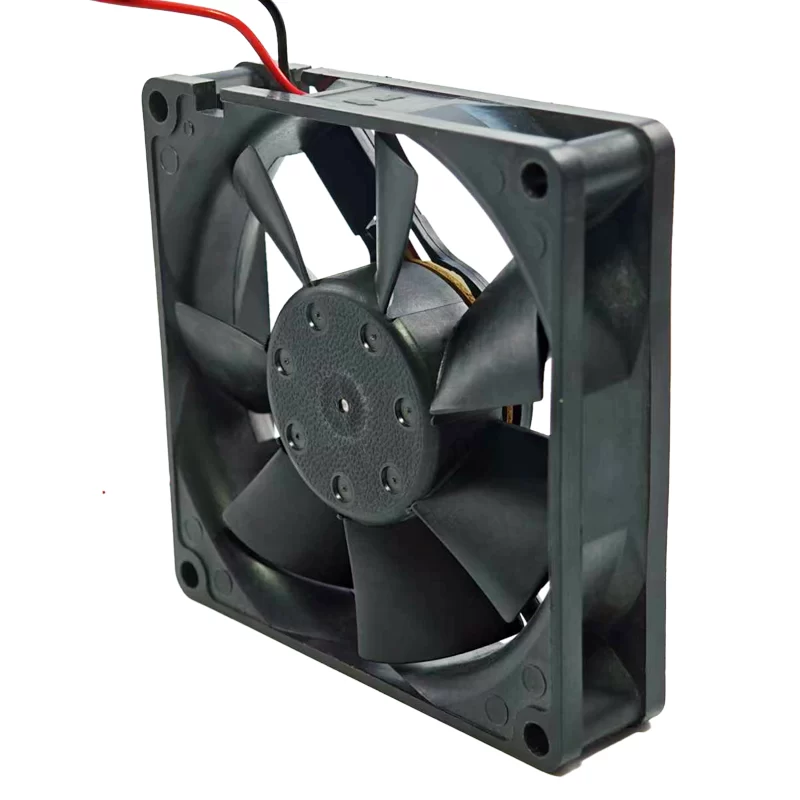

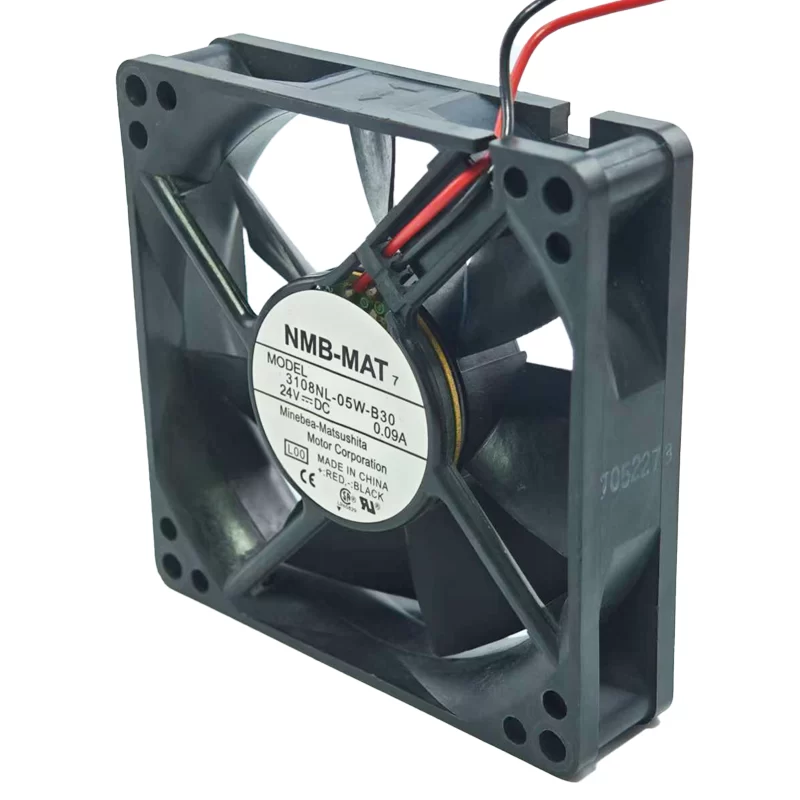

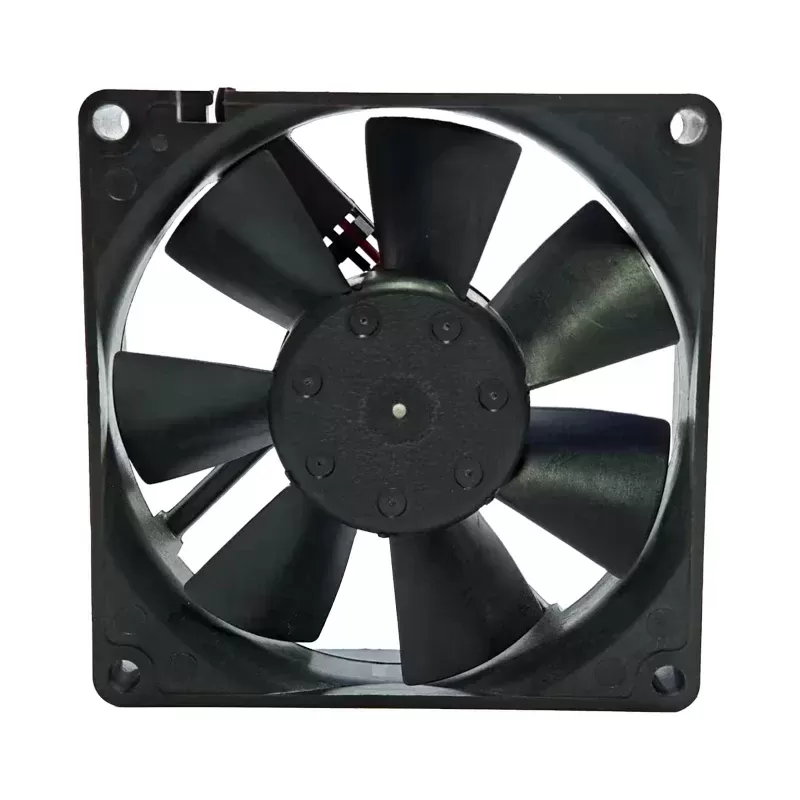

The NMB 3108NL-05W-B30 is a compact and efficient 24V DC axial fan, measuring 80mm x 80mm x 20mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in various electronic systems where a slim profile is required. It features durable dual ball bearings, contributing to a long operational lifespan, with some sources indicating up to 180,000 hours Mean Time To Failure. Drawing 0.09A of current, it consumes 2.16W of power. This fan operates at an estimated 3200 RPM, delivering 38 CFM of airflow and generating 0.15 inches of H2O static pressure, with a moderate 34 dBA noise level. Equipped with 2-wire leads, the NMB 3108NL-05W-B30 is an excellent choice for cooling components in servers, power supplies, industrial controls, and other electronic enclosures that require dependable thermal management within limited space.
Model: 3108NL-05W-B30
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 20mm
Nominal Voltage: 24V DC
Operating Voltage Range: 16V to 25.8V DC
Current: 0.09A
Power Consumption: 2.16W
Speed: 3200 RPM
Airflow: 38 CFM
Static Pressure: 0.15 In H2O
Noise Level: 34 dBA
Bearing Type: Dual Ball Bearing
Life Expectancy: 180,000 Hours
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart.
