Description

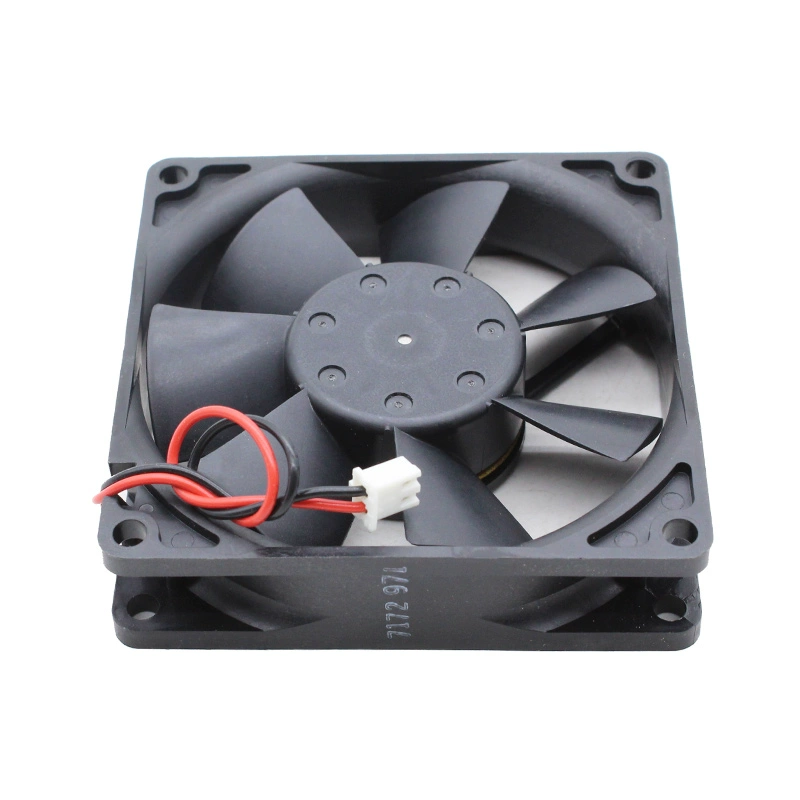

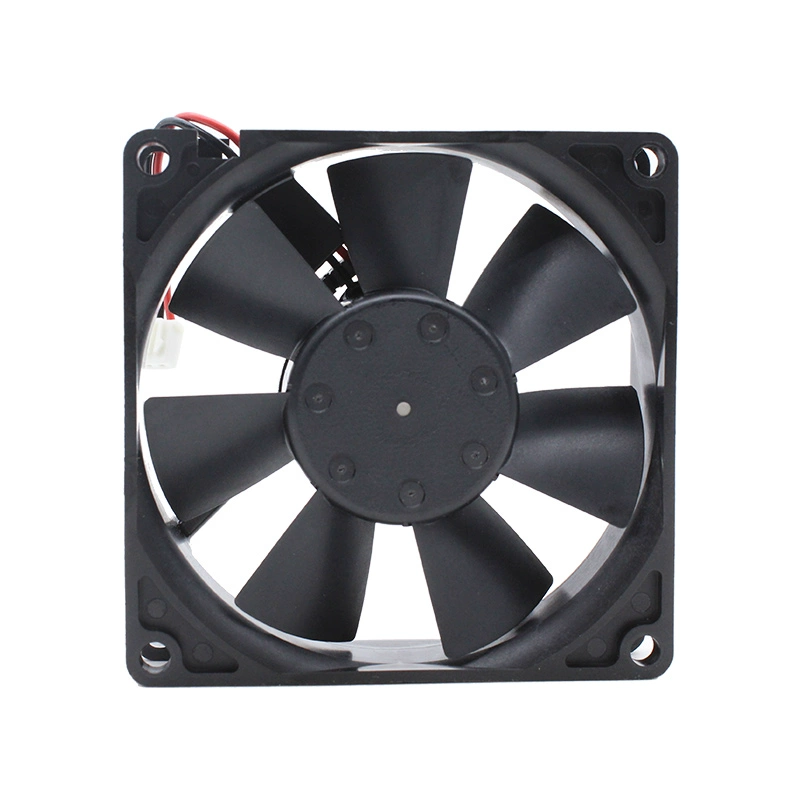

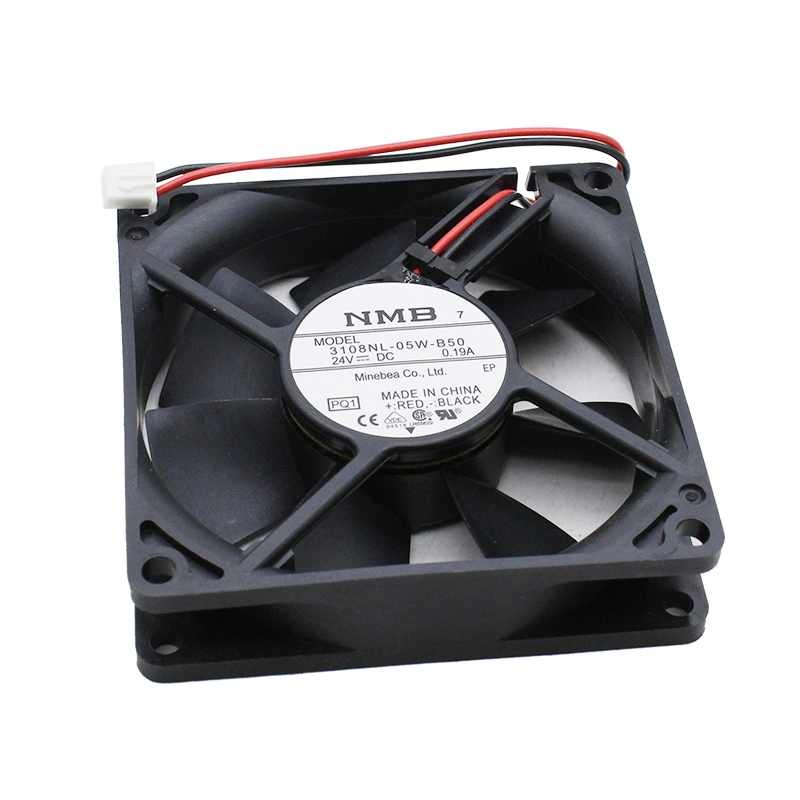

ABB inverter fan 3108NL-05W-B50 NMB 8020 fan 24V 0.19A 8X2CM cm
Model Number: 3108NL-05W-B50
Manufacturer: NMB Technologies Corporation
Series: 3108NL
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 15 VDC to 27.6 VDC
Rated Current: 0.15 A
Input Power: 3.6 W
Wiring: 2 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 3750 RPM
Maximum Airflow: 44 CFM or 1.25 m³/min
Maximum Static Pressure: 0.20 in H2O or 50.1 Pa
Noise Level: 42 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Locked Rotor Burnout Protection, Reverse Polarity Protection (common for NMB fans)
Operating Temperature Range: -10°C to +70°C
Expected Life L10: 40,000 hours at 60°C
Mass: 85 g
The NMB 3108NL-05W-B50 is a reliable 80x80x20mm DC axial fan from NMB Technologies, designed for efficient cooling in various electronic systems. Operating on 24VDC, it consumes 3.6W of power with a current draw of 0.15A. This fan features durable ball bearings for a long expected life of 40,000 hours at 60°C. It delivers 44 CFM of airflow at 3750 RPM, with a noise level of 42 dB. Equipped with essential protection functions like locked rotor burnout protection and reverse polarity protection, it provides a dependable and effective thermal management solution for applications such as control cabinets, power supplies, small inverters, and other industrial or consumer electronics.
