Description
The NMB 3110GL-B4W-B79 is a powerful 12V DC axial fan, measuring 80mm x 80mm x 25mm, manufactured by NMB Technologies Corporation. This fan is designed for high-performance cooling in various electronic systems where reliable and robust airflow is crucial. It features durable double ball bearings, contributing to a long operational lifespan of 70,000 hours at 40°C. Drawing 0.38A of current, it consumes 4.56W of power. This fan operates at 4200 RPM, delivering 49.6 CFM of airflow and generating 0.23 inches of H2O static pressure, with a moderate 45.6 dBA noise level. Equipped with 3-wire leads that provide a tachometer output for speed monitoring, the NMB 3110GL-B4W-B79 is an excellent choice for cooling components in servers, power supplies, industrial control systems, and high-performance computing devices that require effective and dependable thermal management.
NMB brand new original authentic 3110GL-B4W-B79 12V 0.38A 8025 chassis cooling fan

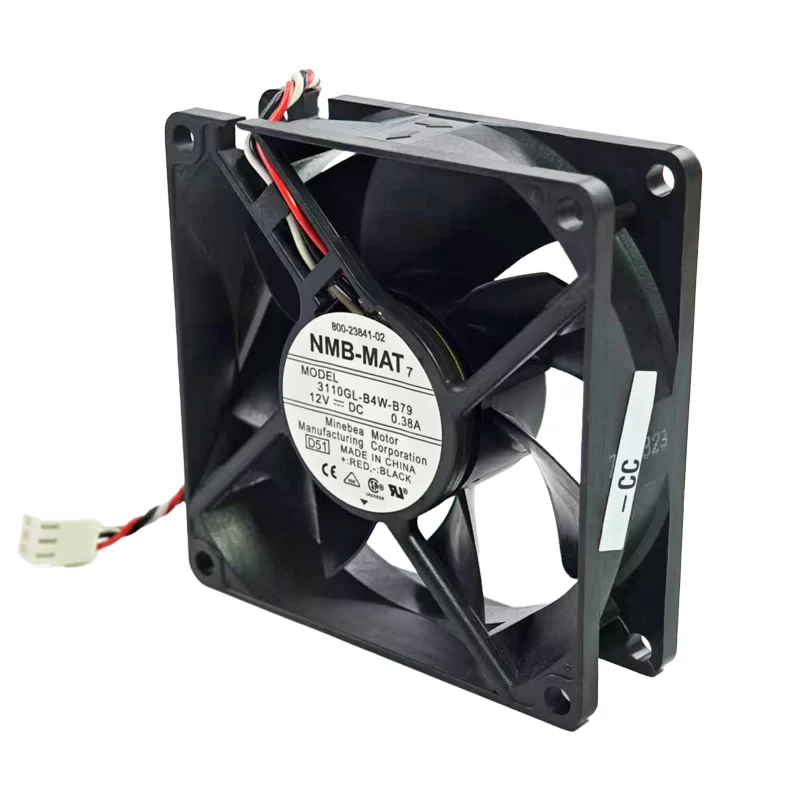

Model: 3110GL-B4W-B79
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Nominal Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Current: 0.38A
Power Consumption: 4.56W
Speed: 4200 RPM
Airflow: 49.6 CFM
Static Pressure: 0.23 In H2O
Noise Level: 45.6 dBA
Bearing Type: Double Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart, Tachometer (FG) output for speed sensing.
