Description

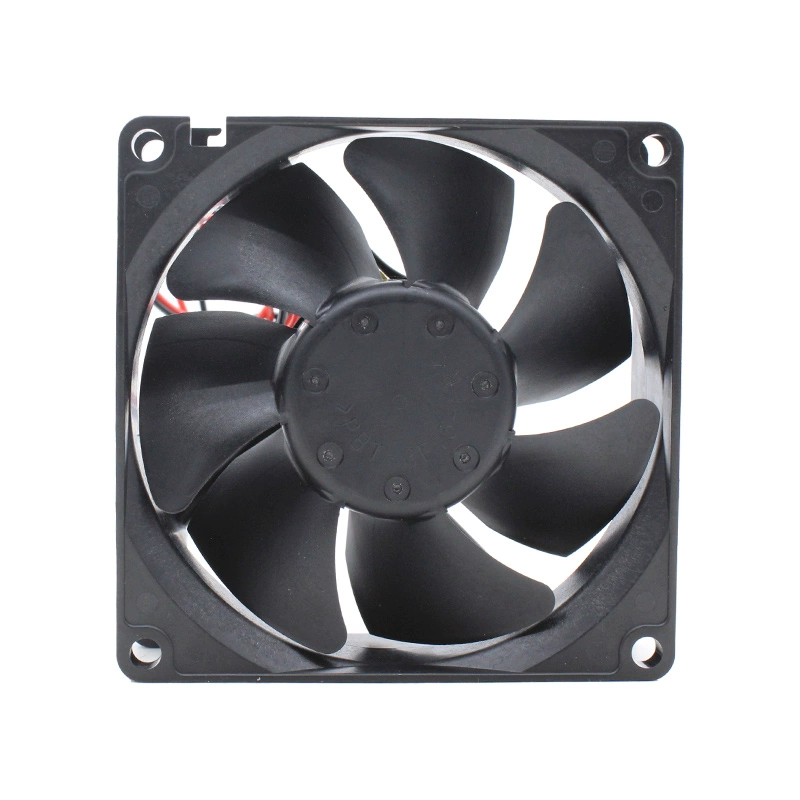

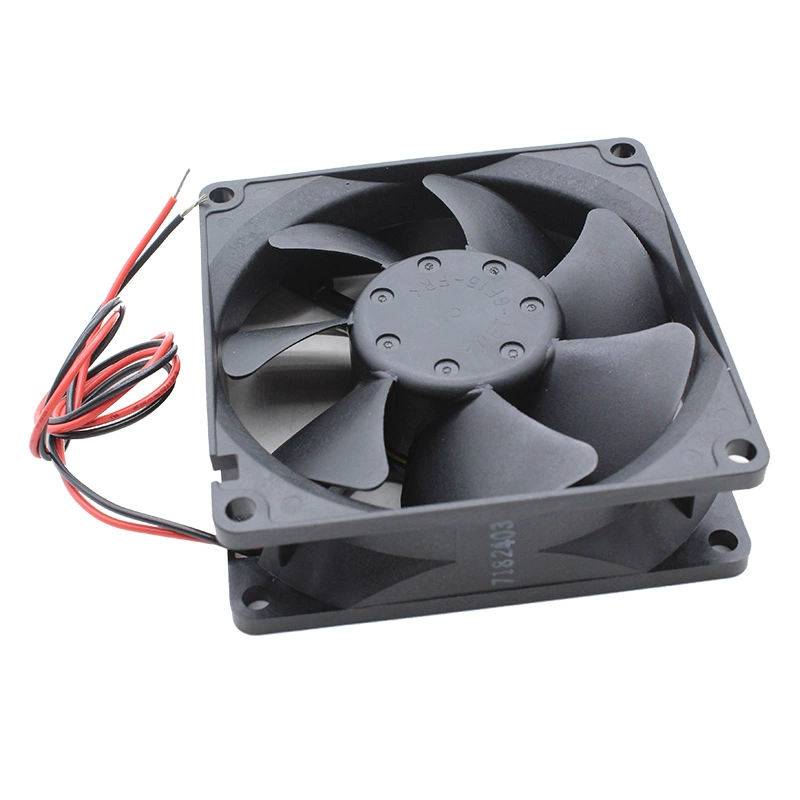

The NMB 3110KL-04W-B50-P00 is a reliable 12V DC axial cooling fan. Measuring 80mm x 80mm x 25mm, this fan is designed for general-purpose cooling in various electronic equipment, power supplies, and control panels where consistent and strong airflow is desired. It operates at a rated voltage of 12V DC and draws a current of 0.30A, resulting in a power consumption of 3.60W. This allows it to achieve a rotational speed of 3800 RPM, delivering an airflow of 45.0 CFM and a static pressure of 0.20 inch-H2O. Its noise level is 39.0 dBA. The fan features durable ball bearings for an operational lifespan of 50,000 hours at 25°C. It comes with 2-wire leads for power connection and includes auto-restart and polarity protection.
Model Number: 3110KL-04W-B50-P00
Manufacturer: NMB Technologies Corporation
Series: KL Series
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.30A
Rated Power: 3.60W
Speed: 3800 RPM
Airflow: 45.0 CFM (1.27 m³/min)
Static Pressure: 0.20 inch-H2O (49.8 Pa)
Noise Level: 39.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
Operating Temperature: -10°C to +70°C
Weight: 95g
Approvals/Certifications: UL, CSA, VDE, RoHS Compliant
