Description

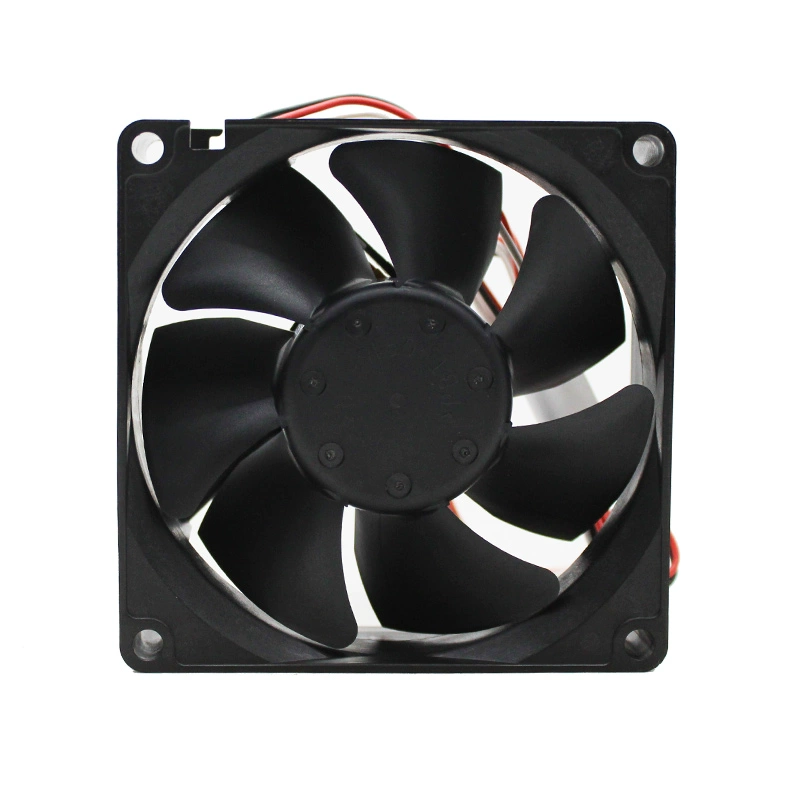

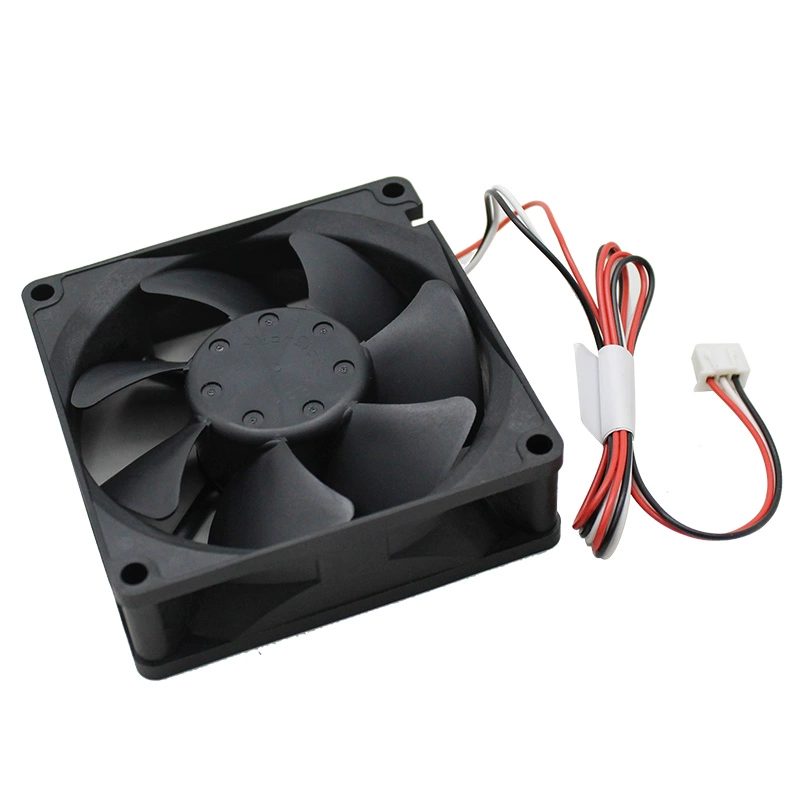

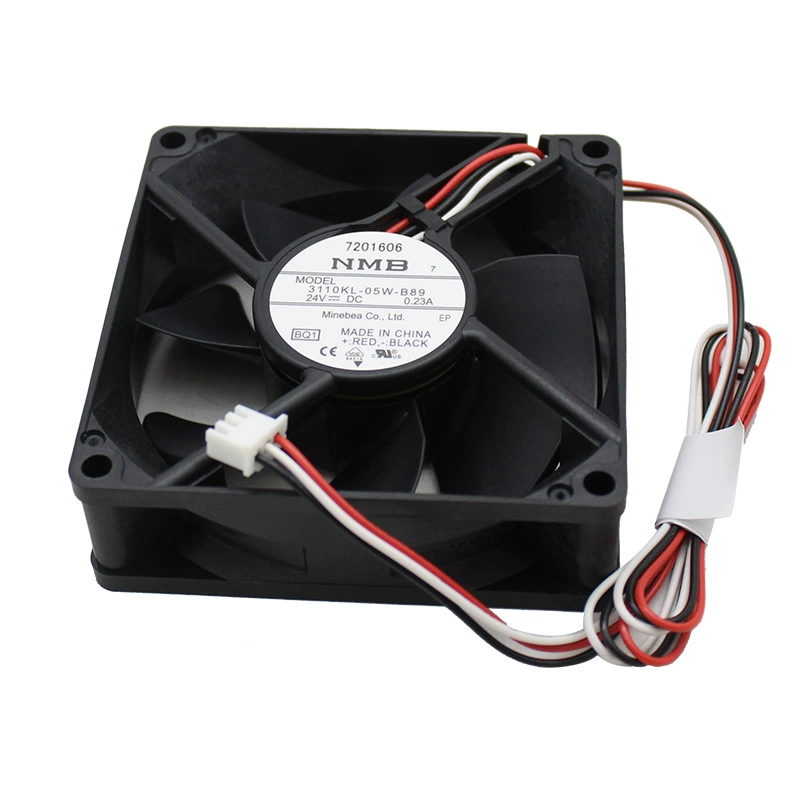

The NMB 3110KL-05W-B89-BQ1 is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 80mm x 80mm x 25mm. Operating at a rated current of 0.23A (5.52W), this fan is engineered for efficient and robust thermal management in various electronic systems, including servers, power supplies, and industrial equipment. It achieves a rotational speed of 4500 RPM, delivering 53.3 CFM of airflow with a noise level of 42.0 dBA. Equipped with durable ball bearings, it offers an extended operational life of 100,000 hours at 25°C. The fan typically utilizes 3-wire leads and includes a locked rotor sensor for monitoring its operational status, ensuring reliable performance in demanding applications.
Model Number: 3110KL-05W-B89-BQ1
Manufacturer: NMB Technologies Corporation (Minebea)
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 10.0V to 26.4V DC
Rated Current: 0.23A
Rated Power: 5.52W
Speed: 4500 RPM
Airflow: 53.3 CFM / 1.51 m³/min
Static Pressure: 0.321 inch-H2O / 79.9 Pa
Noise Level: 42.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10)
Operating Temperature: -20°C to 70°C
Frame Material: Plastic (UL94V-0 rated)
Impeller Material: Plastic (UL94V-0 rated)
Features: Locked Rotor Sensor, Auto Restart, Reverse Polarity Protection
