Description

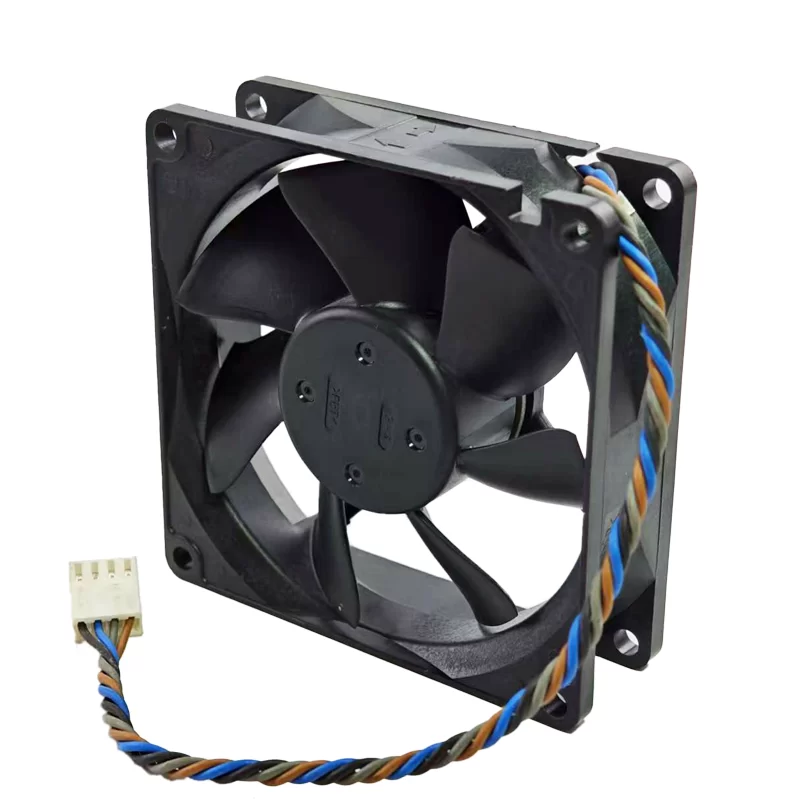

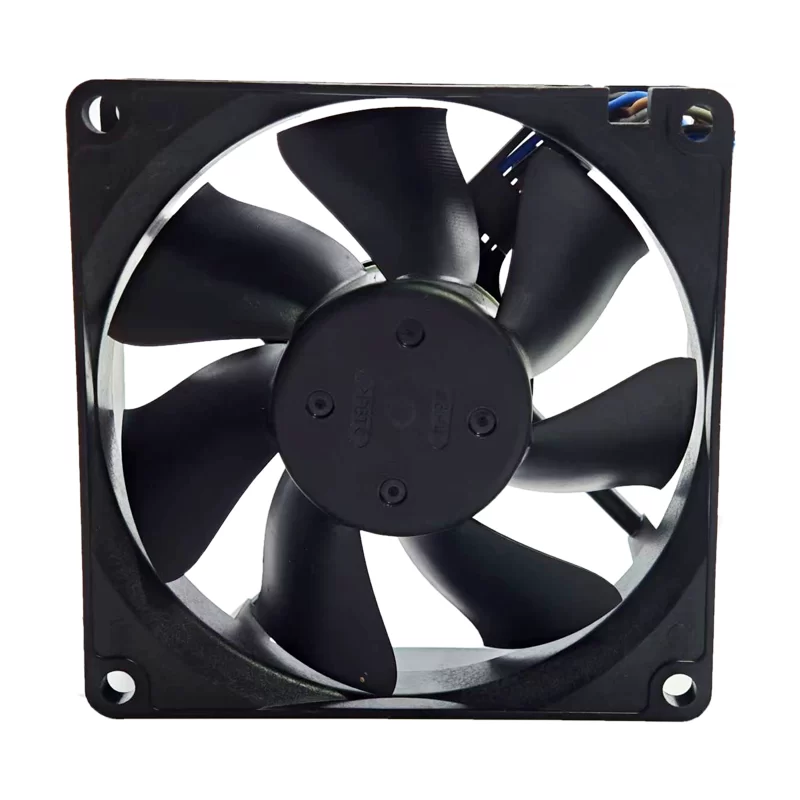

The NMB 3110RL-04W-B86 is a high-performance 12V DC axial fan, precisely measuring 80mm x 80mm x 25mm, manufactured by NMB Technologies Corporation. This fan is widely recognized for its robust cooling capabilities, especially in CPU and case cooling applications. It features durable double ball bearings, which contribute to an extended operational lifespan of 50,000 hours. Drawing a current of 0.65A, it consumes 7.8W of power. This fan operates at a speed of 3800 RPM, delivering a substantial 50.14 CFM of airflow while maintaining a noise level of 39 dBA. Equipped with 4-wire termination, it offers advanced functionalities including PWM temperature control for variable speed operation and a tachometer output for real-time RPM monitoring. The NMB 3110RL-04W-B86 is an excellent choice for demanding thermal management tasks in desktop computers, servers, and other electronic devices where efficient cooling, precise speed control, and long-term reliability are paramount.
NMB brand new original authentic 3110RL-04W-B86 12V 0.65A 8025 4-wire inverter fan
Model: 3110RL-04W-B86
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Nominal Voltage: 12V DC
Current: 0.65A
Power Consumption: 7.8W
Speed: 3800 RPM
Airflow: 50.14 CFM
Noise Level: 39 dBA
Bearing Type: Double Ball Bearing
Life Expectancy: 50,000 Hours
Termination: 4-wire
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Temperature Control, Tachometer Function, Double Ball Bearing, Auto Restart, Polarity Protection.
