Description

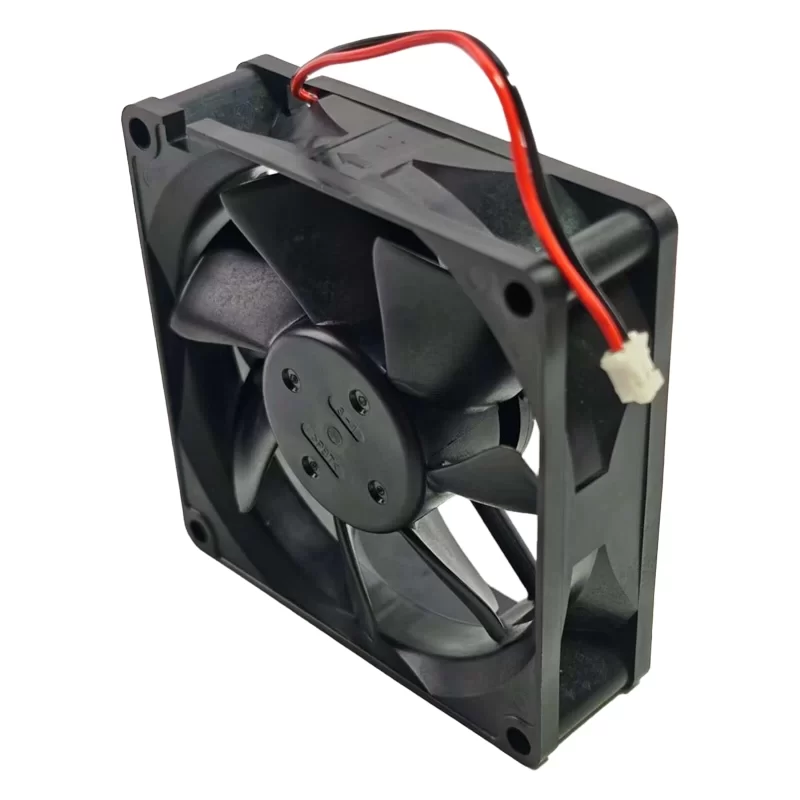

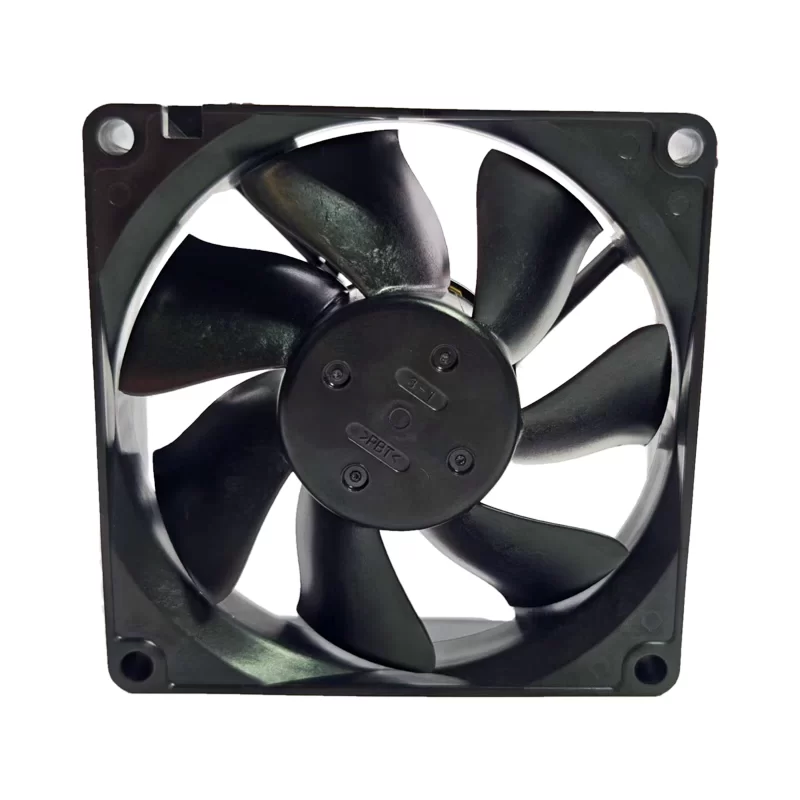

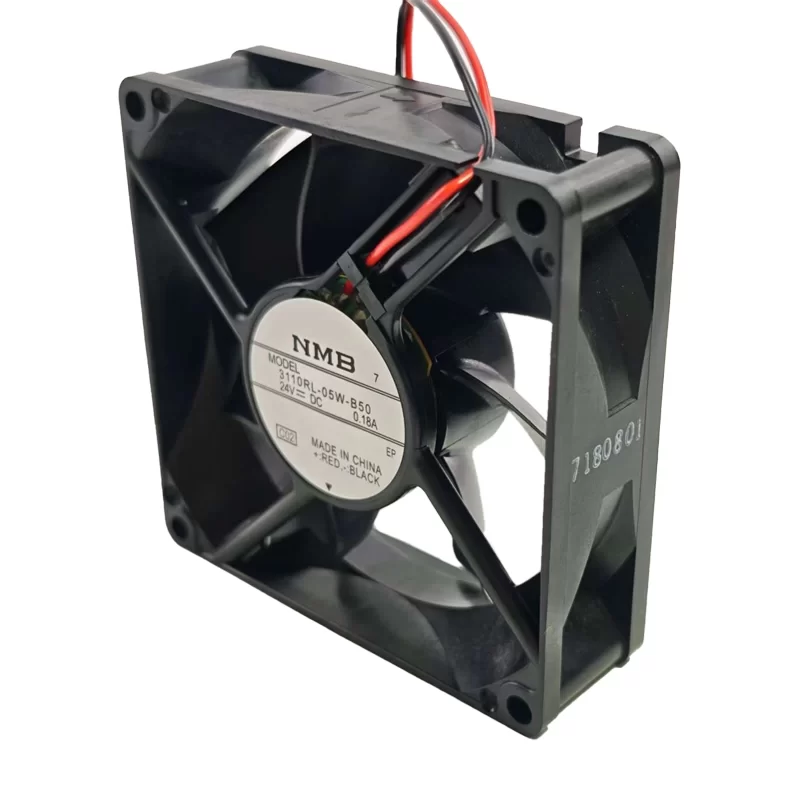

The NMB Technologies Corporation 3110RL-05W-B50-C02 is a DC axial fan measuring 80x80x25mm. It operates on 24 VDC, drawing 0.18 A of current, with a power consumption of 4.32 W. This fan achieves a speed of 3250 RPM, providing an airflow of 38.49 CFM (1.09 m³/min) with a static pressure of 0.15 inch H2O. The noise level is 34 dB(A). It features ball bearings for durable operation and includes Auto Restart and Polarity Protection. It connects via 2-wire Leads. This fan is commonly used in server equipment, power supplies, and various electronic devices requiring efficient and quiet cooling in a compact size.
3110RL-05W-B50-C02 Fan Parameters
Model: 3110RL-05W-B50-C02
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 80x80x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10-27.6 VDC
Rated Current: 0.18 A
Power Consumption: 4.32 W
Speed: 3250 RPM
Airflow: 38.49 CFM (1.09 m³/min)
Static Pressure: 0.15 inch H2O (37.2 Pa)
Noise Level: 34 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Features: Auto Restart, Polarity Protection
Weight: 95 g
Material Frame: Plastic
Material Blade: Plastic
Operating Temperature: -10 to 70°C
Expected Life: 50000 Hrs at 25°C
Application: Server equipment, power supplies, electronic devices.
