Description

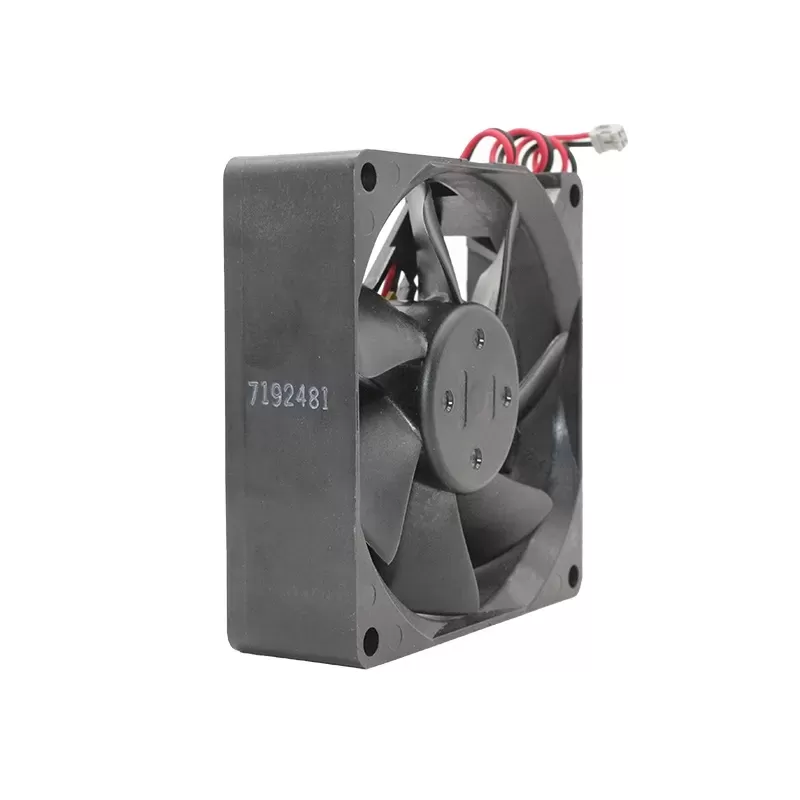

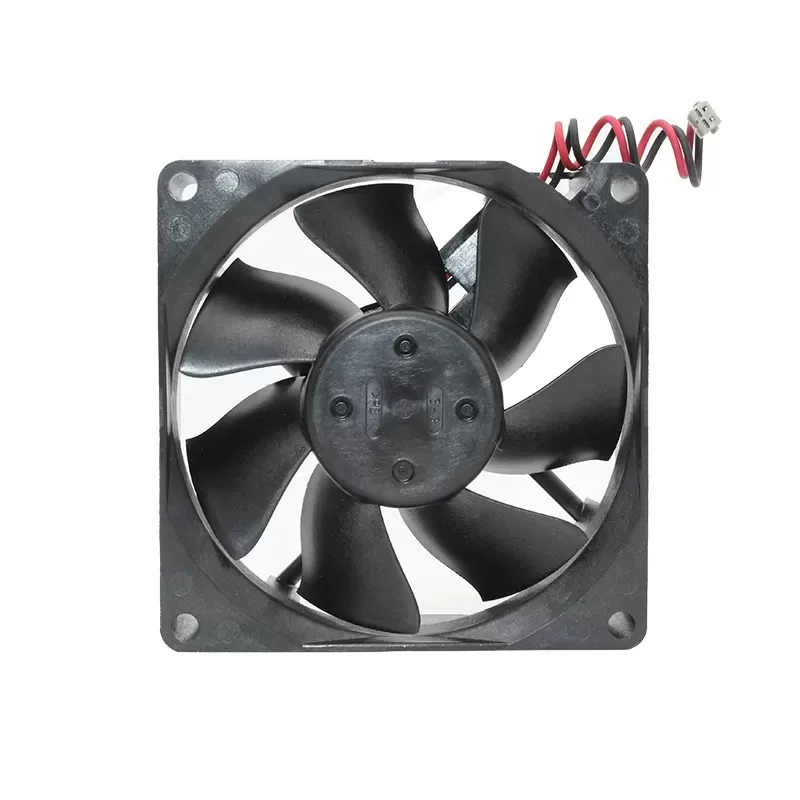

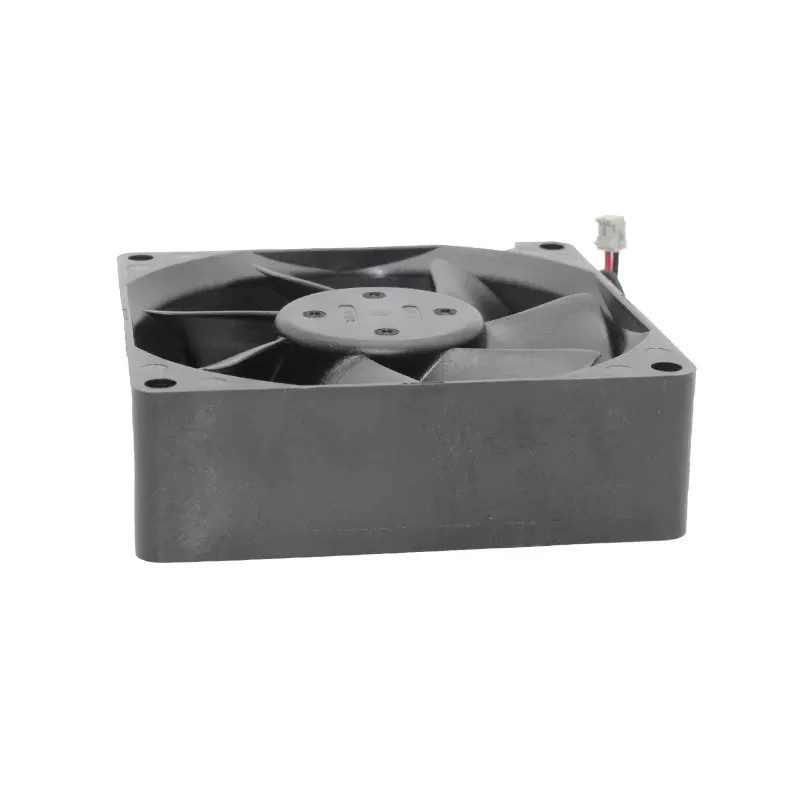

The NMB 3110RL-05W-S20-C01 is a quiet 24V DC axial cooling fan measuring 80mm x 80mm x 25mm. Operating at a rated current of 0.08A (1.92W), this fan is engineered for applications where low noise is a critical requirement alongside effective thermal management. It achieves a rotational speed of 2300 RPM, delivering 32.0 CFM of airflow with a static pressure of 0.09 inch-H2O (22.4 Pa). Its noise output is a very low 18.0 dBA, making it suitable for noise-sensitive environments. The fan typically uses a Rifle bearing (a type of improved sleeve bearing) for a long operational life of 60,000 hours at 60°C. Connectivity is via 2-wire leads, and integrated features include auto-restart and polarity protection, ensuring dependable and discreet performance.
Model Number: 3110RL-05W-S20-C01
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 10.0V to 27.6V DC
Rated Current: 0.08A
Rated Power: 1.92W
Speed: 2300 RPM
Airflow: 32.0 CFM / 0.91 m³/min
Static Pressure: 0.09 inch-H2O / 22.4 Pa
Noise Level: 18.0 dBA
Connector: 2-Wire Leads
Bearing Type: Rifle Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
