Description

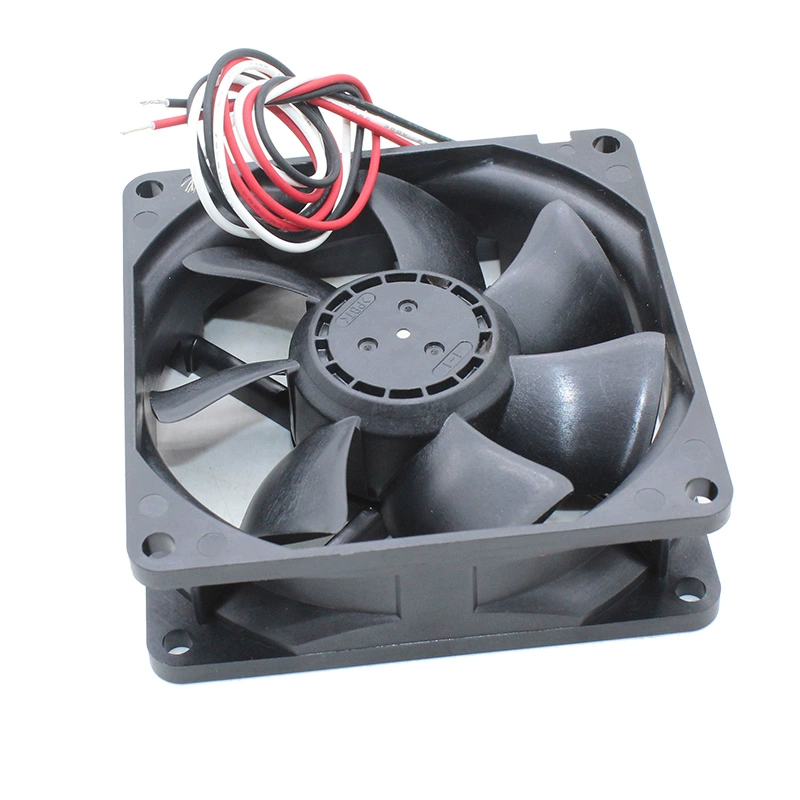

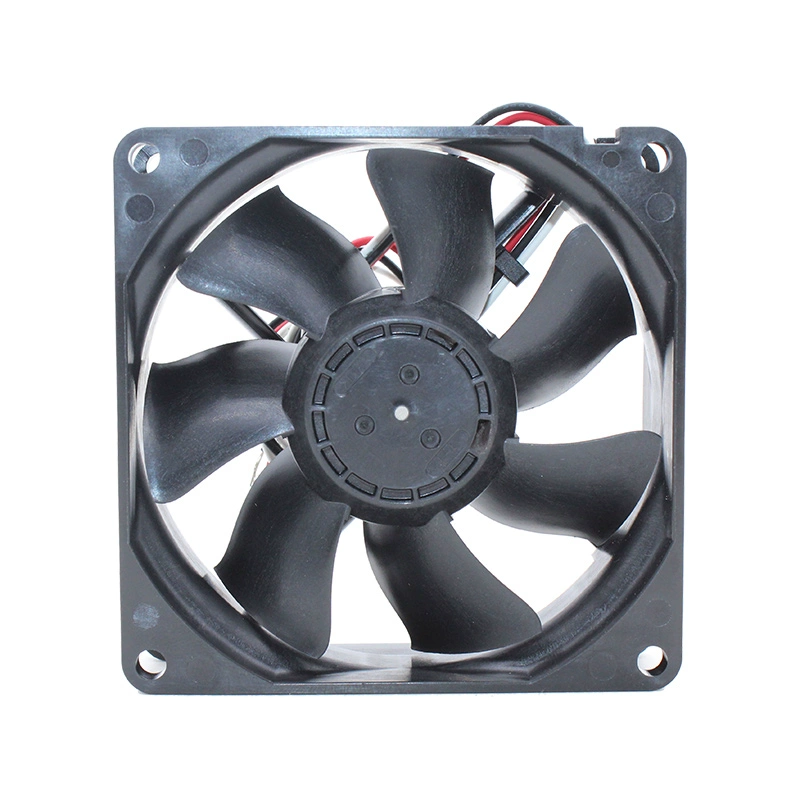

The NMB 3110SB-04W-B69-E00 is a reliable 12V DC axial cooling fan from NMB Technologies, featuring an 80x80x25mm form factor. This fan is designed for effective thermal management in various electronic systems. It operates at 0.30A (3.6W), achieving a speed of 3400 RPM. This generates a robust 46.9 CFM of airflow, suitable for cooling components or small enclosures. Equipped with durable ball bearings, it boasts an impressive life expectancy of 100,000 hours at 25°C. Its 3-wire configuration includes a locked rotor sensor, which provides status feedback for enhanced system reliability, all while operating at a noise level of 38.0 dBA.
Model Number: 3110SB-04W-B69-E00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.30A
Rated Power: 3.6W
Speed: 3400 RPM
Airflow: 46.9 CFM / 1.33 m³/min
Noise Level: 38.0 dBA
Dimensions: 80mm x 80mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor (Tachometer/Alarm Output), Auto Restart, Polarity Protection
