Description

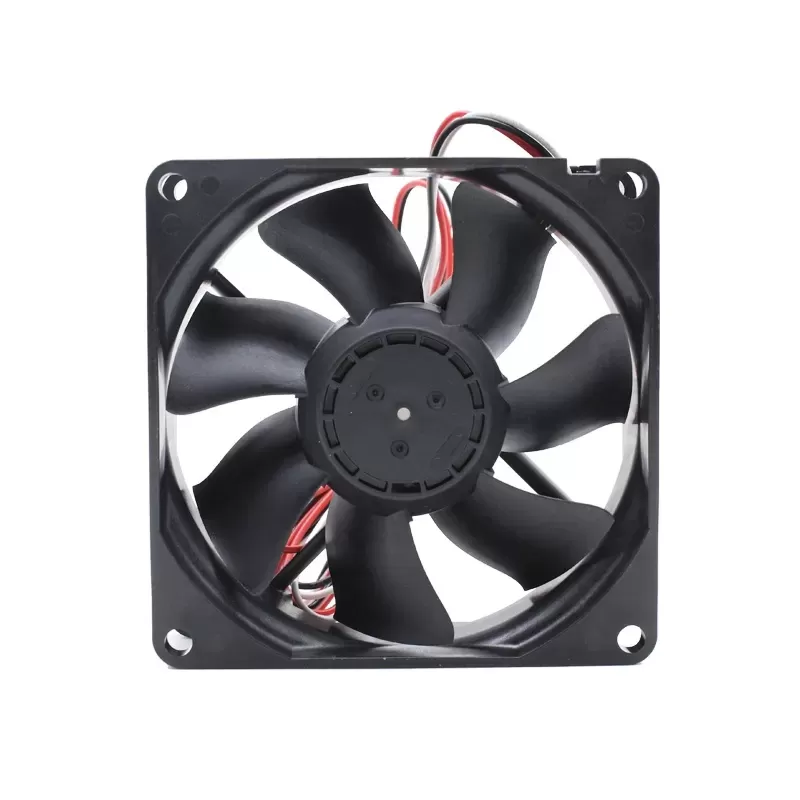

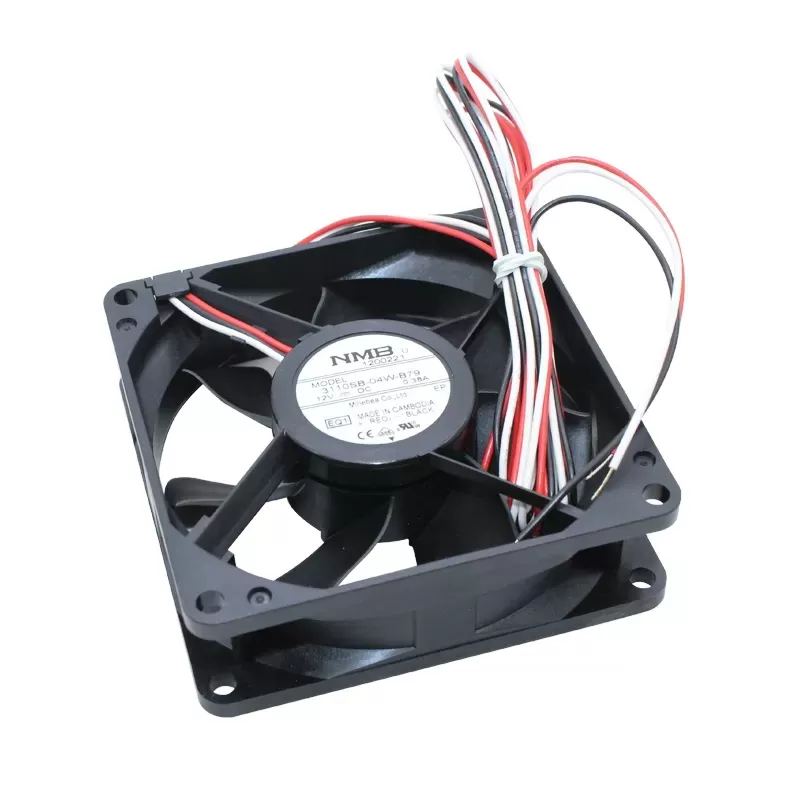

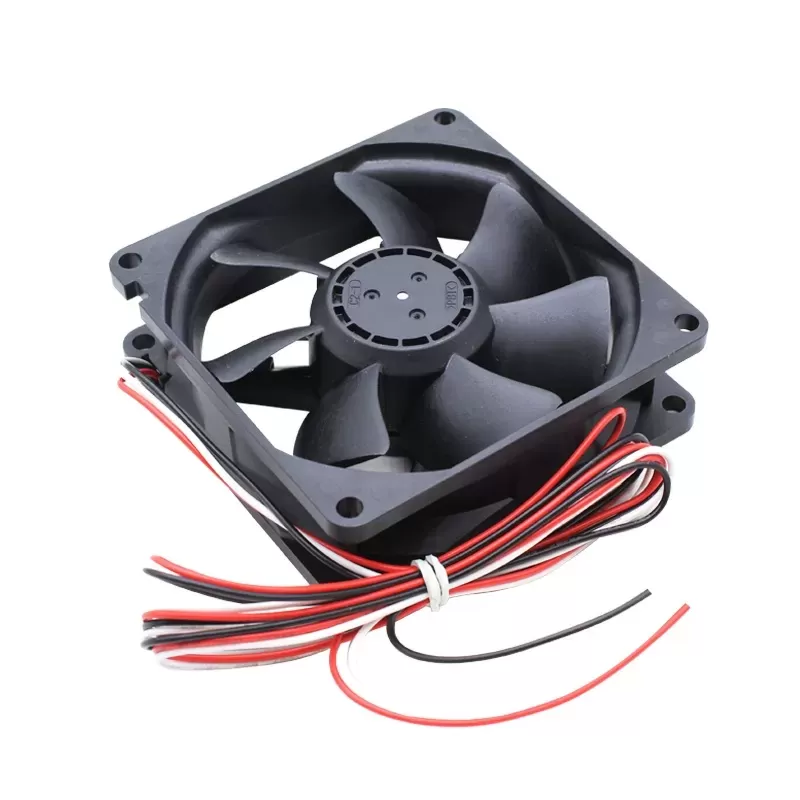

The NMB 3110SB-04W-B79-EQ1 is a reliable DC Axial Cooling Fan from NMB Technologies, designed for effective thermal management in compact electronic systems. Operating on 12V DC power, it draws 0.38A of current, resulting in 4.56W of power consumption. Measuring 80mm x 80mm x 25mm, this fan is well-suited for cooling in computer cases, power supplies, and other equipment where space is limited but efficient airflow is crucial. It rotates at a speed of 3100 RPM, delivering an airflow of 41.3 CFM and generating a static pressure of 0.15 inch-H2O. With a low noise level of 30 dBA, it offers quiet yet effective cooling. Equipped with 3-wire leads, it includes a speed sensor (tachometer) for monitoring fan speed and utilizes durable ball bearings. The fan boasts a long life expectancy of 100,000 hours at 25°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
Model Number: 3110SB-04W-B79-EQ1
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.38A
Rated Power: 4.56W
Speed: 3100 RPM
Airflow: 41.3 CFM
Static Pressure: 0.15 inch-H2O
Noise Level: 30 dBA
Dimensions: 80mm x 80mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), Polarity Protection
