Description

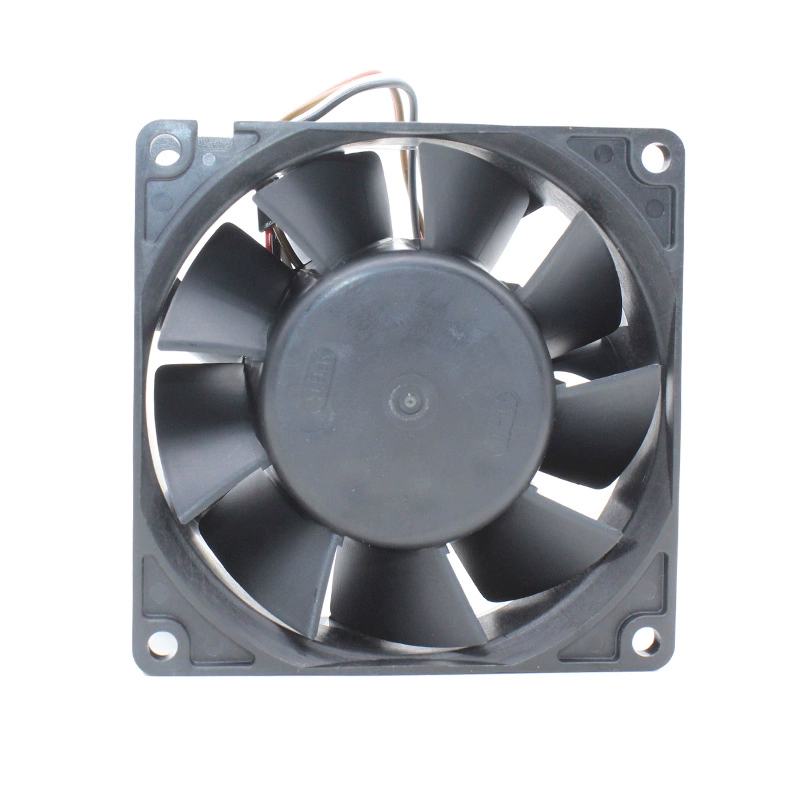

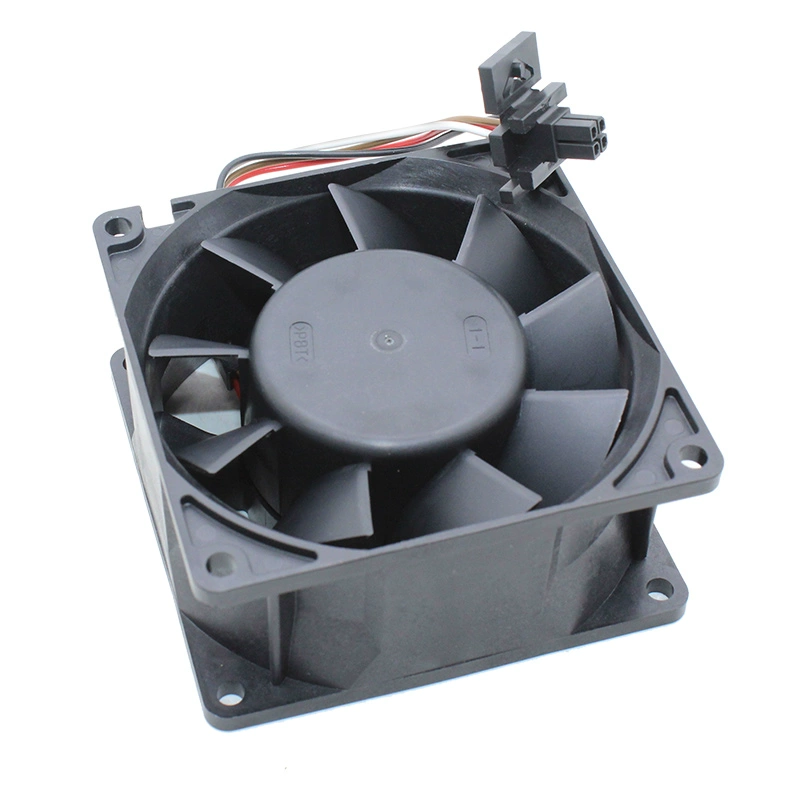

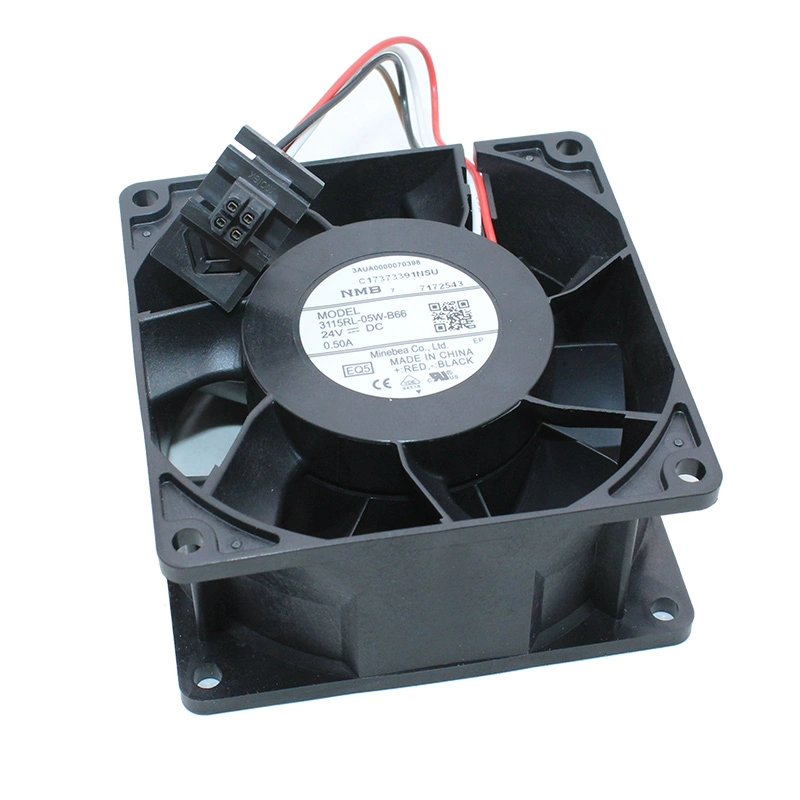

The NMB-MAT 3115RL-05W-B66 is a durable DC Axial Cooling Fan from NMB Technologies, designed for reliable performance in demanding environments. Operating on 24V DC power, it draws 0.50A of current, leading to a substantial 12W power consumption. With dimensions of 80mm x 80mm x 38mm, this fan is a popular choice for its balance of size and cooling capability. It spins at 3100 RPM, providing effective airflow while producing a noise level typically around 40-42 dBA. Featuring a robust 4-wire connector, it often supports PWM for precise speed control and provides RPM feedback. The fan is built with dual ball bearings for enhanced durability and a long operational lifespan, making it widely utilized in inverters, PLCs, and other industrial automation equipment.
Manufacturer: NMB Technologies
Model Number: 3115RL-05W-B66
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Rated Current: 0.50A
Rated Power: 12W (calculated from 24V * 0.50A)
Speed: 3100 RPM
Dimensions: 80mm x 80mm x 38mm
Connector: 4-Wire (typically includes PWM control and tachometer output)
Bearing Type: Dual Ball Bearing
Noise Level: Around 40-42 dBA
3115RL-05W-B66 inverter fan original new 8038 cooling fan 24V 0.5A 8X8X3.8
