Description

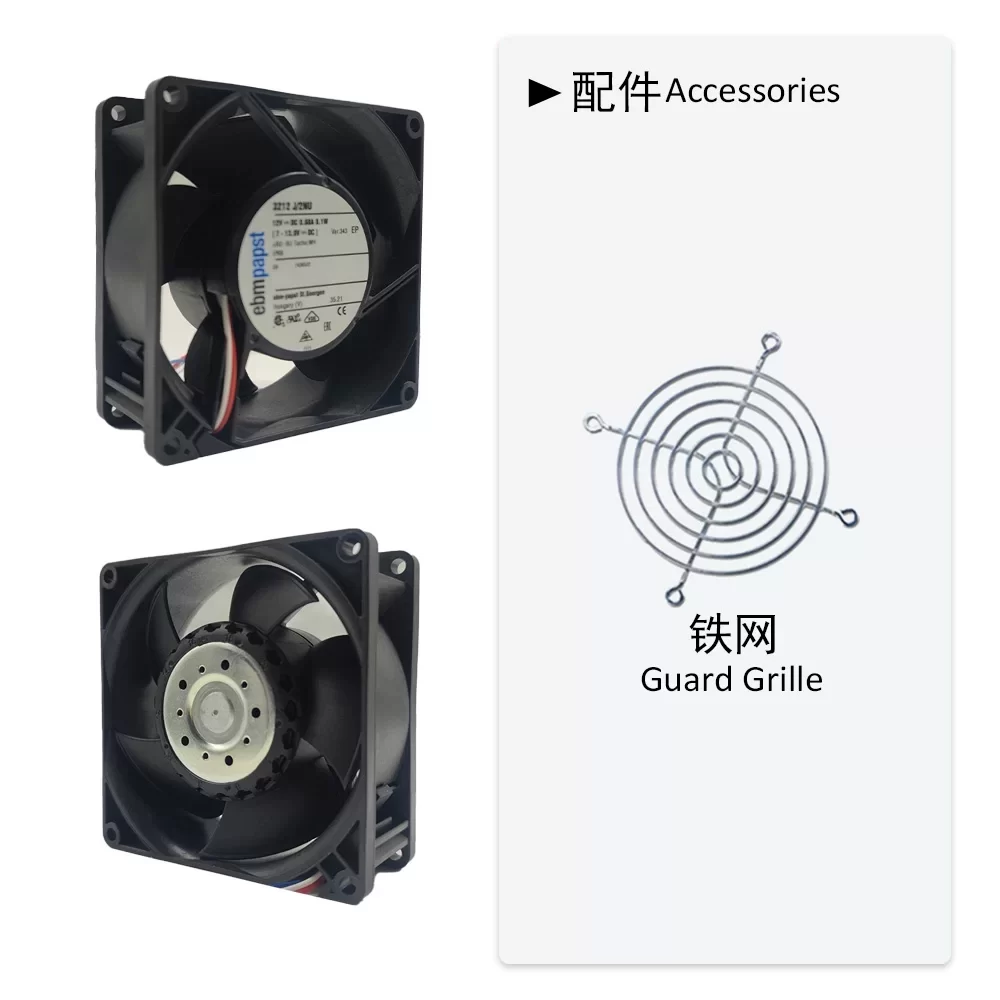

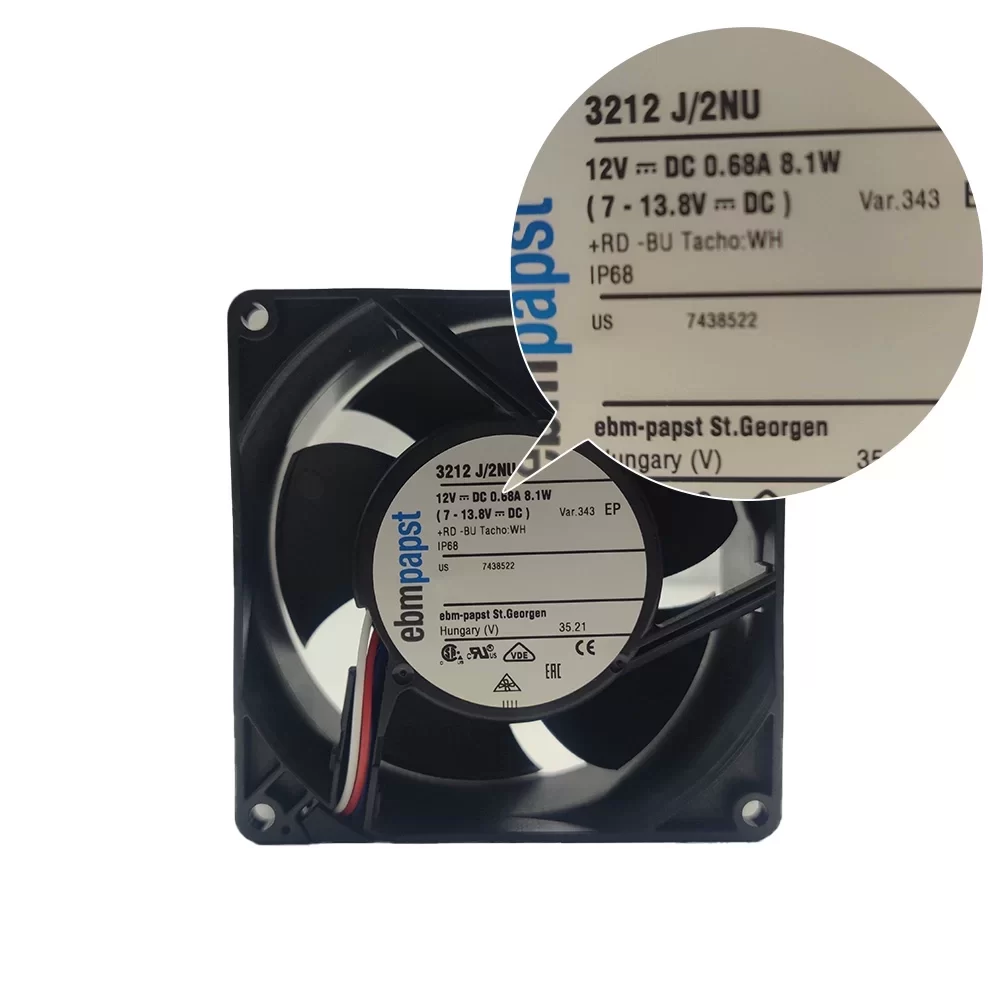

The ebmpapst 3212J/2NU-343 is a powerful DC axial fan, measuring 92x92x32mm, designed for high-performance cooling in various electronic systems. Operating at 12VDC within a 7-13.8V range, it draws 0.68A of current and consumes 8.1W of power. This fan delivers a static pressure of 205Pa at a speed of 6000RPM. It features robust ball bearings and comes with 4 wire leads, incorporating both PWM control for precise speed adjustment and a tachometer output for speed monitoring. Built with a durable plastic frame and impeller, it boasts an IP68 ingress protection rating, ensuring reliable operation within an ambient temperature range of -20 to 70°C, even in demanding environments.
3212J/2NU-343 Fan Parameters
Manufacturer: ebmpapst
Model: 3212J/2NU-343
Fan Type: Axial Fan
Dimensions: 92 x 92 x 32 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 ~ 13.8 VDC
Current Rating: 0.68 A
Power Consumption: 8.1 W
Static Pressure: 205 Pa
Speed: 6000 RPM
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Fan Features: PWM Control, Tachometer Output
Operating Temperature: -20 ~ 70°C
Frame Material: Plastic
Blade Material: Plastic
IP Rating: IP68
Application: This ebmpapst DC axial fan is suitable for various cooling applications in servers, power supplies, telecommunications equipment, and other electronic devices requiring high static pressure, powerful airflow, precise speed control, and environmental protection.
