Description

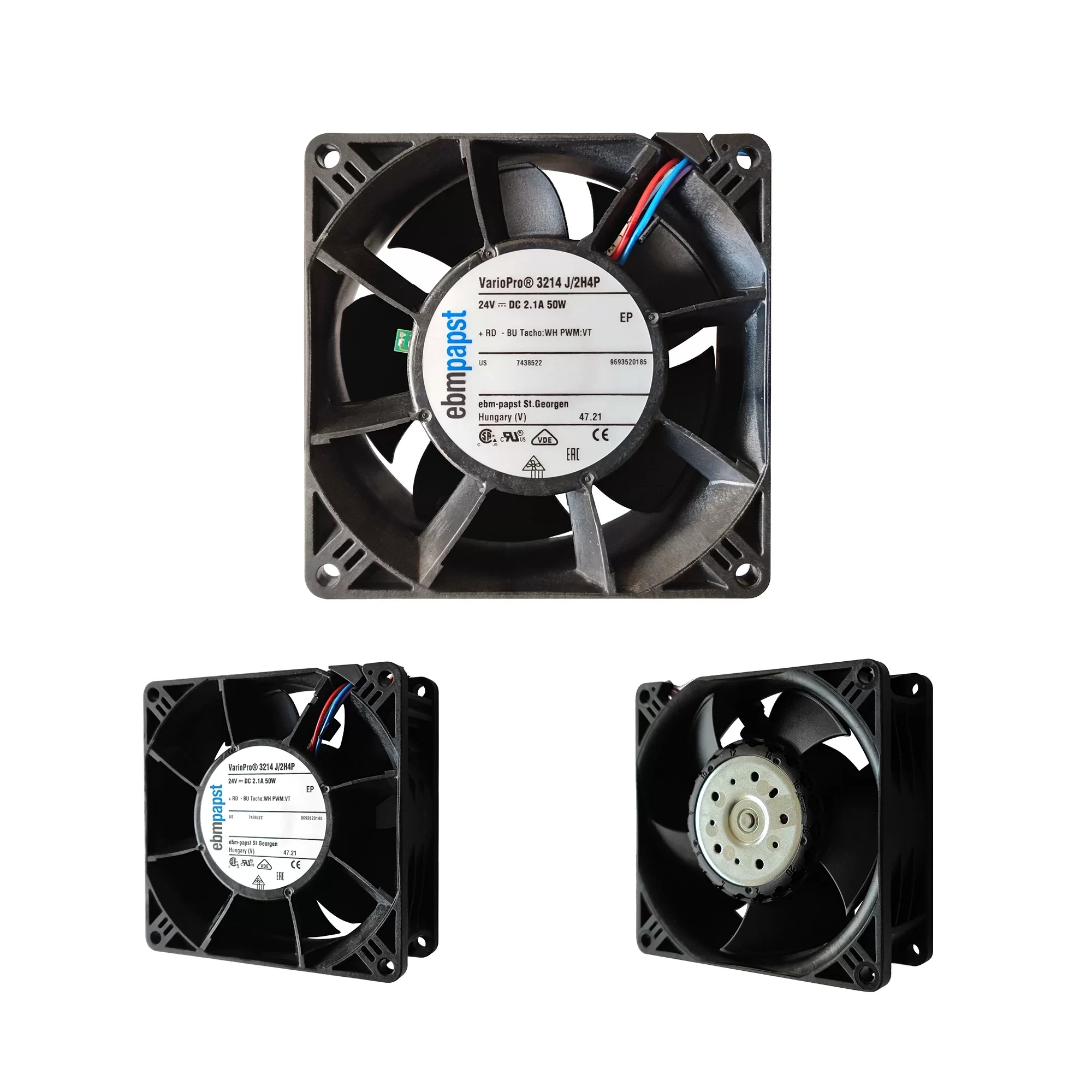

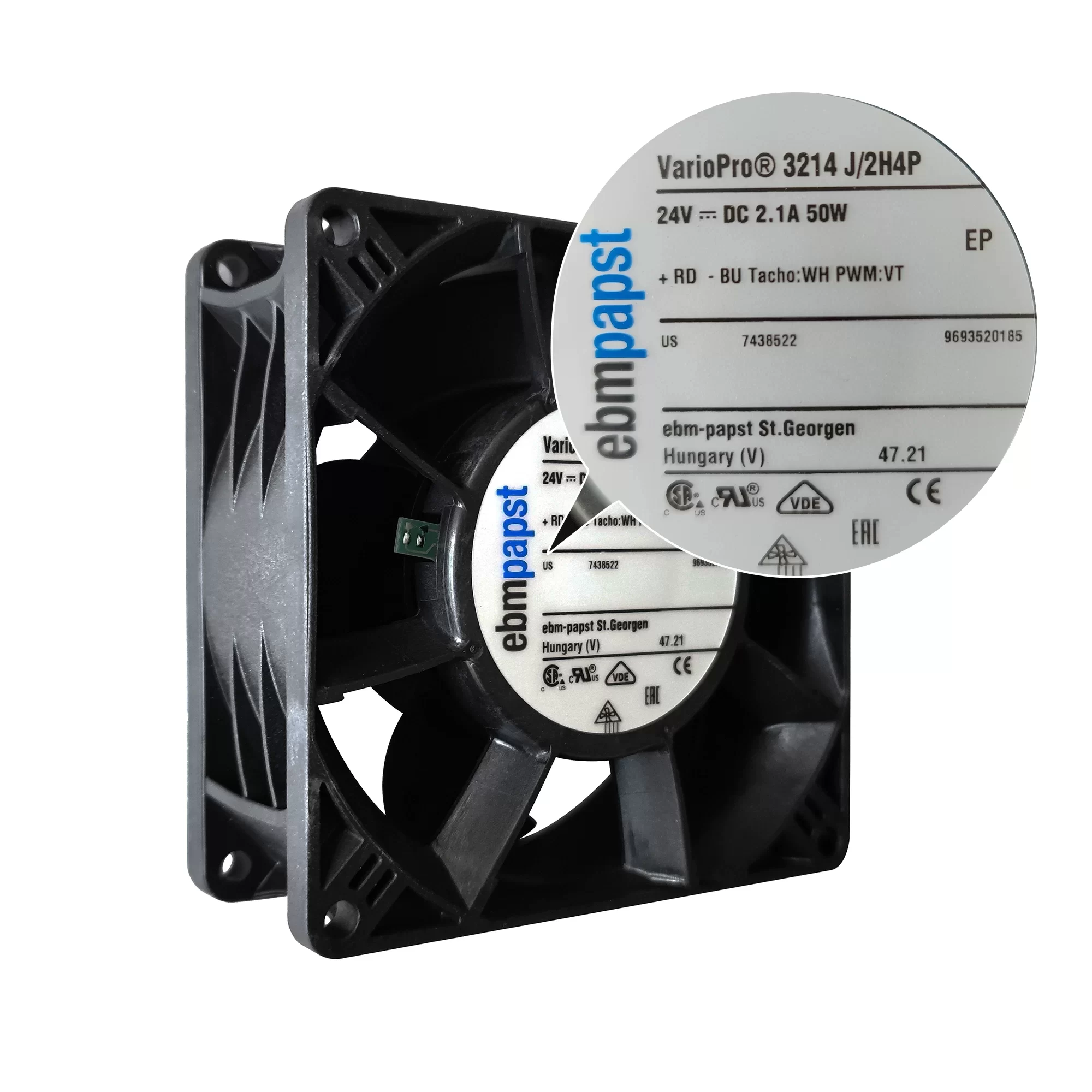

The ebmpapst 3214J/2H4P is a DC Axial Fan measuring 92x92x38mm. It operates on 24VDC with a range of 10 to 28VDC. This fan draws 2.1A of current, consumes 50W of power, and achieves a high speed of 13000 RPM. It provides a static pressure of 800 Pa. It is built with a glass-fiber reinforced PA plastic for both the housing and the impeller. The fan features a durable ball bearing system and includes protection against reverse polarity and a blocked rotor. With an IP20 ingress protection level and a long lifespan of 60000 hours, it is a reliable solution for cooling electronic components in compact equipment and other industrial applications.
3214J/2H4P Fan Parameters
Model: 3214J/2H4P
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 28 VDC
Current Draw: 2.1 A
Power Input: 50 W
Fan Speed: 13000 RPM
Static Pressure: 800 Pa
Noise Level: 60 dB(A)
Bearing Type: Ball Bearing
Protection Level: IP20
Weight: 0.230 kg
Lifespan: 60000 h at 40°C
Termination: 2 Wire Leads
Housing Material: Glass-fiber reinforced PA plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 to 75 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling electronic components in industrial and compact equipment.
