3214J/2N-335 ebmpapst 24V DC Axial Fan

Description

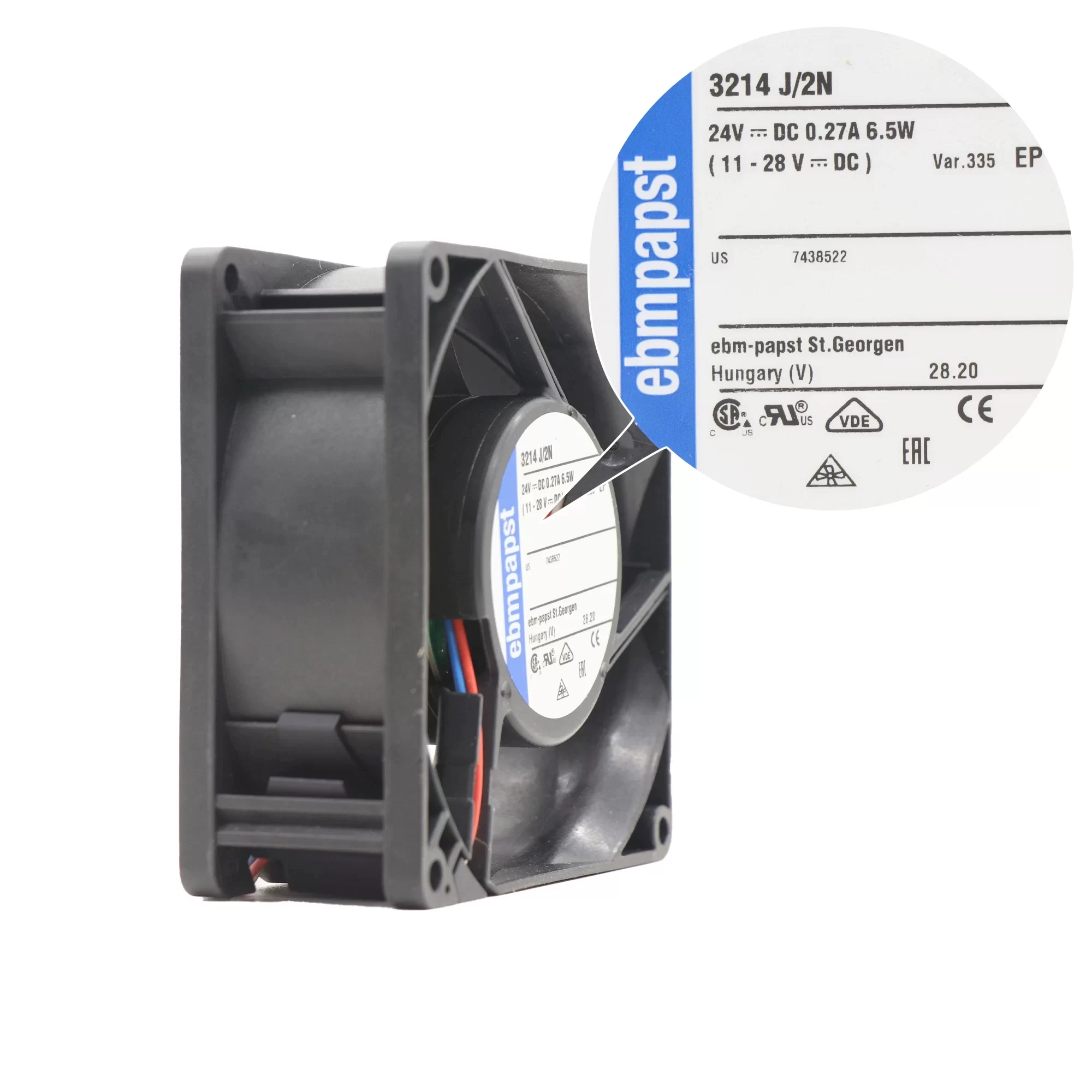

The ebmpapst 3214J/2N-335 is a 24VDC axial fan with dimensions of 92x92x38mm. Operating within an 11-28VDC range, it draws 0.27A of current and consumes 6.5W of power. This fan achieves a high static pressure of 205Pa and operates at a speed of 6000RPM. Featuring durable ball bearings and three wire leads for connection, it is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 60,000hours at 40°C.

3214J/2N-335 Fan Parameters
Manufacturer: ebmpapst
Model: 3214J/2N-335
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 11 ~ 28 VDC
Current Rating: 0.27 A
Power Consumption: 6.5 W
Static Pressure: 205 Pa
Speed: 6000 RPM
Bearing Type: Ball Bearing
Termination: Three Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Housing Material: Plastic (Fiberglass-reinforced PBT plastic)
Impeller Material: Plastic (Fiberglass-reinforced PA plastic)
IP Rating: IP20
Weight: 0.23 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst DC axial fan is suitable for applications requiring high static pressure and high airflow in compact electronic systems, servers, and industrial equipment.
