Description

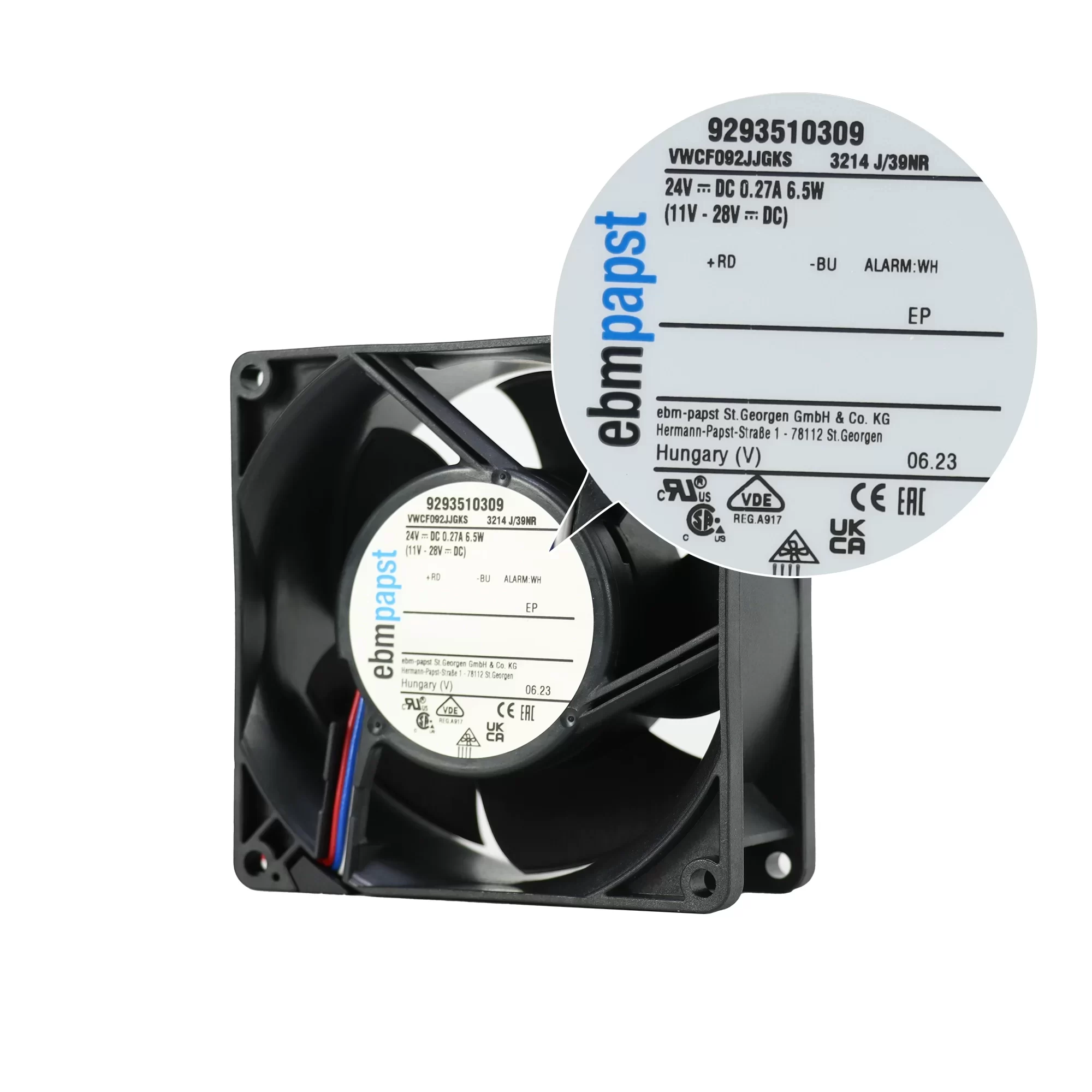

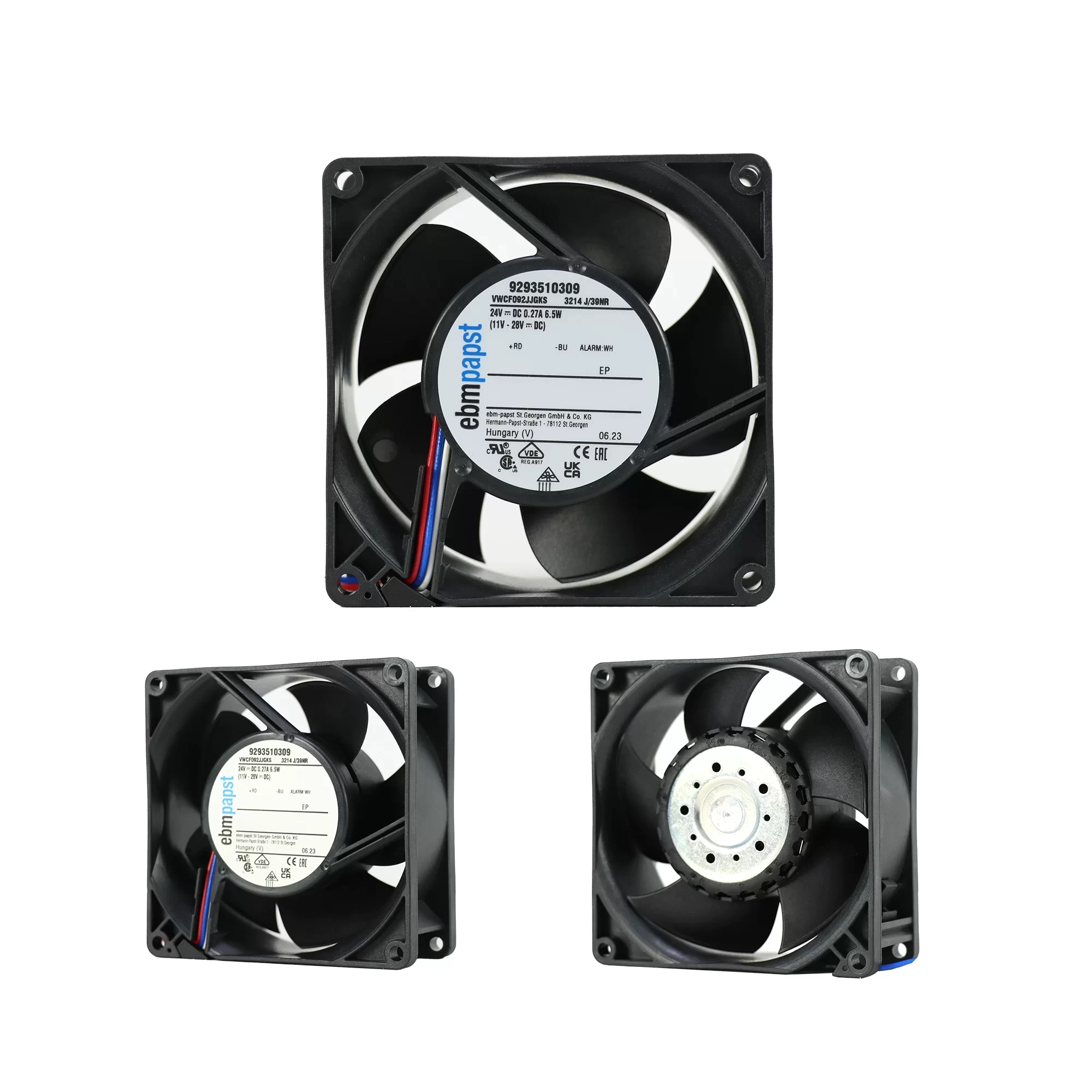

The ebmpapst 3214J/39NR is a DC Axial Fan measuring 92x92x38mm. It operates on 24VDC with a range of 16.8 to 26.4VDC. This fan draws 0.27A of current, consumes 6.5W of power, and achieves a speed of 3000 RPM. It provides an airflow of 120 m³/h (70.6 CFM) with a static pressure of 70 Pa at a noise level of 52 dB(A). It is built with a glass-fiber reinforced PA plastic for both the housing and the impeller. The fan features a durable ball bearing system and includes a tachometer output, along with protection against reverse polarity and a blocked rotor. It is a reliable solution for cooling electronic components in a variety of industrial and telecommunication applications.
3214J/39NR Fan Parameters
Model: 3214J/39NR
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16.8 to 26.4 VDC
Current Draw: 0.27 A
Power Input: 6.5 W
Fan Speed: 3000 RPM
Airflow: 120 m³/h (70.6 CFM)
Static Pressure: 70 Pa
Noise Level: 52 dB(A)
Bearing Type: Ball Bearing
Protection Level: IP20
Weight: 0.230 kg
Termination: 3 Wire Leads with tachometer output
Housing Material: Glass-fiber reinforced PA plastic
Impeller Material: Glass-fiber reinforced PA plastic
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -20 to 75 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling electronic components in industrial and telecommunication applications.
