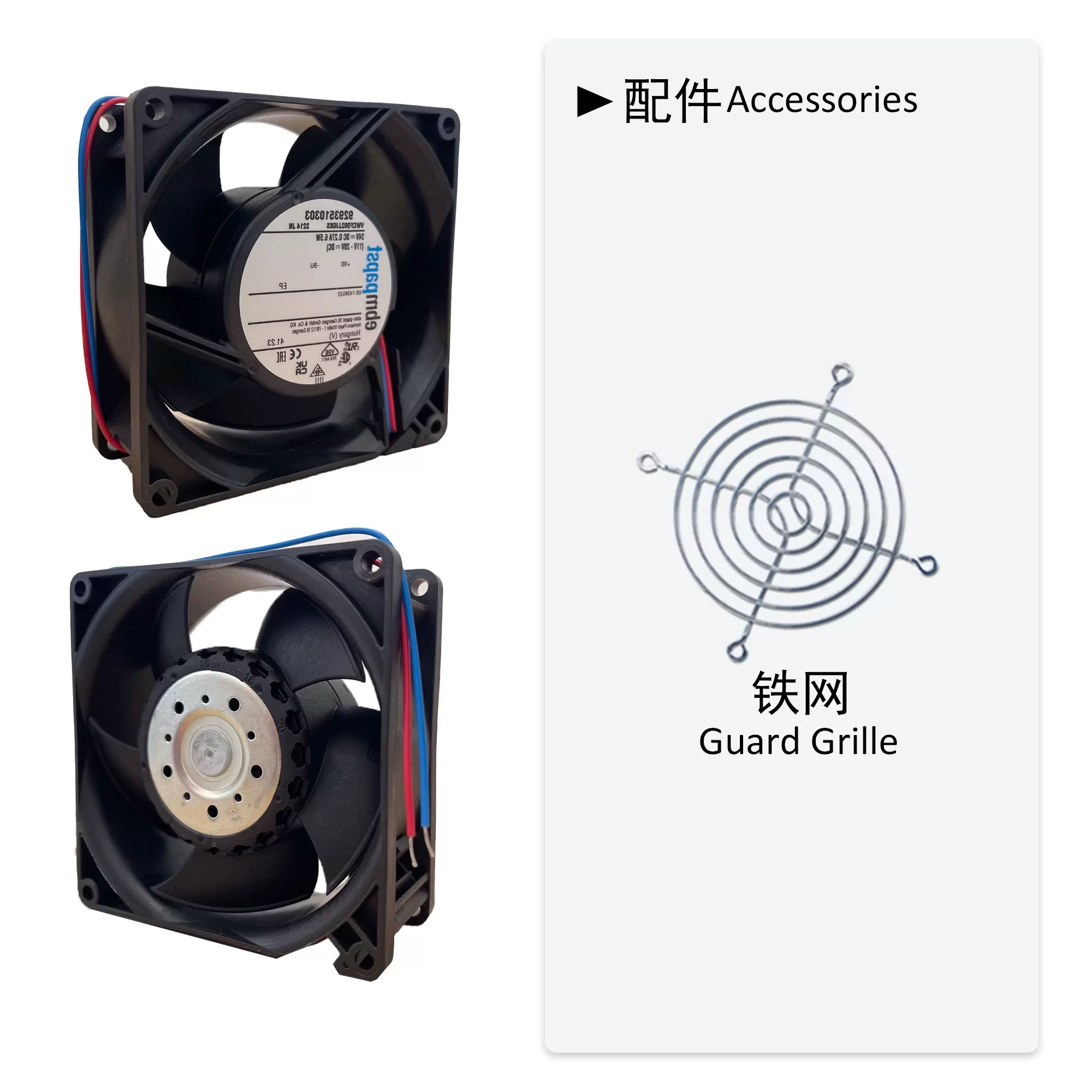

3214JN ebmpapst 24V DC Axial Fan

Description

The ebmpapst 3214JN is a 24VDC axial fan with dimensions of 92x92x38mm. Identified by part number 9293510303 and new model VWCF092JJGKS, it operates within an 11-28VDC range. It draws 0.27A of current and consumes 6.5W of power. This fan delivers an airflow of 130m³/h (76CFM) and operates at a speed of 6000RPM, with a noise level of 51dB(A) and a sound power level of 6.1Bels. Featuring durable ball bearings and two wire leads for connection, it is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 60,000hours at 40°C.

3214JN Fan Parameters
Manufacturer: ebmpapst
Model: 3214JN
Part number: 9293510303
New Model: VWCF092JJGKS
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 11 ~ 28 VDC
Current Rating: 0.27 A
Power Consumption: 6.5 W
Airflow: 130 m³/h (76 CFM)
Speed: 6000 RPM
Noise Level: 51 dB(A)
Sound Power Level: 6.1 Bels
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Housing Material: Plastic (Fiberglass-reinforced PBT plastic)
Impeller Material: Plastic (Fiberglass-reinforced PA plastic)
IP Rating: IP20
Weight: 0.24 kg
Approval Agency: VDE, CSA, UL
Application: This ebmpapst DC axial fan is suitable for cooling applications in electronic enclosures, power supplies, and various compact systems requiring efficient airflow and reliability.
