Description

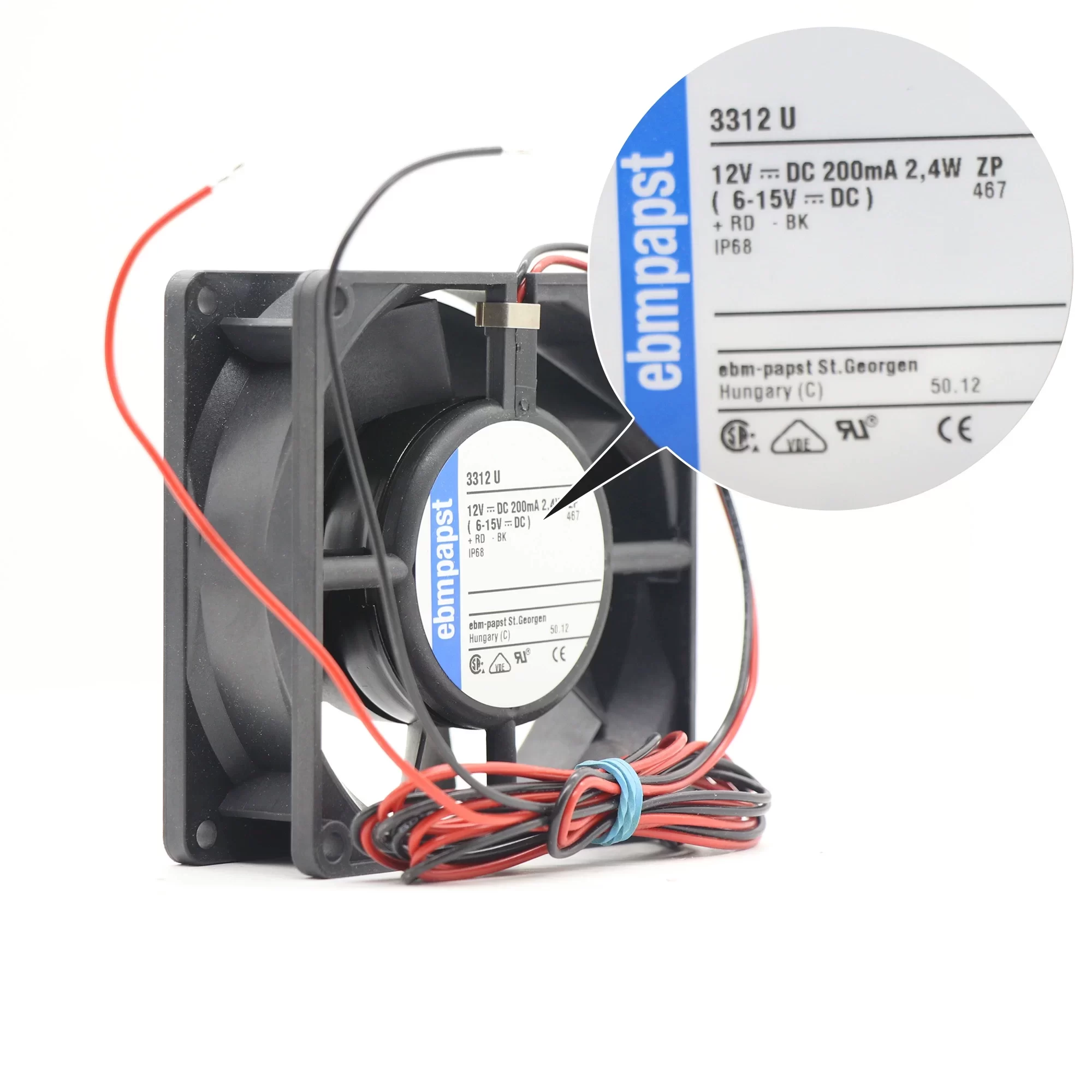

The ebmpapst 3312U-467 is a 12VDC axial fan, measuring 92x92x32mm. Operating within a 6-15V range, it draws 200mA of current and consumes 2.4W of power. This fan delivers a speed of 2950RPM and a static pressure of 62Pa. It features durable ball bearings and 2 wire leads. Built with a plastic frame and impeller, it boasts an IP68 ingress protection rating, ensuring reliable performance in harsh environments with dust and water. It operates efficiently within an ambient temperature range of -20 to 75°C.
3312U-467 Fan Parameters
Manufacturer: ebmpapst
Model: 3312U-467
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 32 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 ~ 15 VDC
Current Rating: 200 mA
Power Consumption: 2.4 W
Static Pressure: 62 Pa
Speed: 2950 RPM
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 75°C
Lifetime @ Temp: 50,000 Hours (at 40°C)
Frame Material: Plastic
Blade Material: Plastic
IP Rating: IP68
Weight: 0.215 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst DC axial fan is suitable for cooling applications in electronic equipment, control panels, and other systems requiring robust protection against dust and water, along with efficient air movement.
