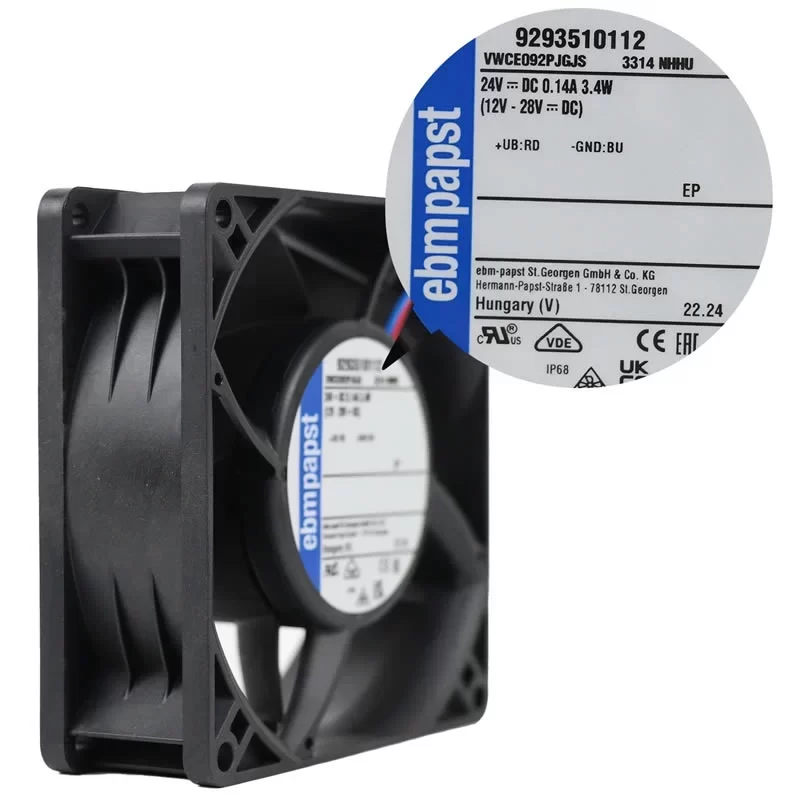

3314NHHU ebmpapst 24V 0.14A 92x92x32mm IP68 DC Axial Fan

Description

The ebmpapst 3314NHHU (Part No. 9293510112) is a professional-grade 24 VDC axial fan from the S-Panther series, specifically engineered for extreme environmental resilience. Featuring a compact 92 mm glass-fiber reinforced plastic construction, this unit is defined by its IP68 protection rating, ensuring complete immunity to dust and reliable operation under water submersion. Driven by a high-efficiency 3.4 W brushless motor, it delivers a consistent 3450 RPM while maintaining a low current draw of 0.14 A. The fan is equipped with premium ball bearings and comprehensive electronic protection, including reverse polarity and locked-rotor restart capabilities. Designed for maintenance-free S1 continuous operation, the 3314NHHU is the definitive thermal solution for outdoor telecommunications, marine electronics, and ruggedized industrial systems operating across a wide DC voltage range of 12-28 V.

3314NHHU Fan Parameters
Model Number: 3314NHHU
Part Number: 9293510112
Series Reference: VWCE092PJGJS
Manufacturer: ebmpapst
Series: S-Panther DC Axial Series
Type: DC Axial Fan
Size: 92 mm
Dimensions: 92 x 92 x 32 mm
Weight: 0.22 kg
Bearing Type: Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 12 – 28 VDC
Power Consumption: 3.4 W
Nominal Current: 0.14 A
Speed: 3450 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 104 m³/h
Actual Static Pressure: 83 Pa
Motor Design: Brushless DC motor
Motor Protection: Reverse polarity and locked-rotor protection
Insulation Class: Class E
Electrical Hookup: 2 Lead wires (Red: +24V; Blue: GND)
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Intake over struts
Impeller Material: Glass-fiber reinforced plastic (PA)
Housing Material: Glass-fiber reinforced plastic (PBT)
Installation Position: Any
Degree of Protection: IP68
Operating Temperature: -20 – +75 °C
Service Life (L10 @ 40 °C): 67500 h
Standard Compliance: EN 60950-1, CE
Approval Agency: VDE, UL, CSA

Application
The ebmpapst 3314NHHU axial fan is primarily utilized in outdoor telecommunications cabinets, marine navigation systems, renewable energy inverters, and industrial equipment located in high-pollution or salt-fog environments.
