3314NN ebmpapst 24V DC Axial Fan

Description

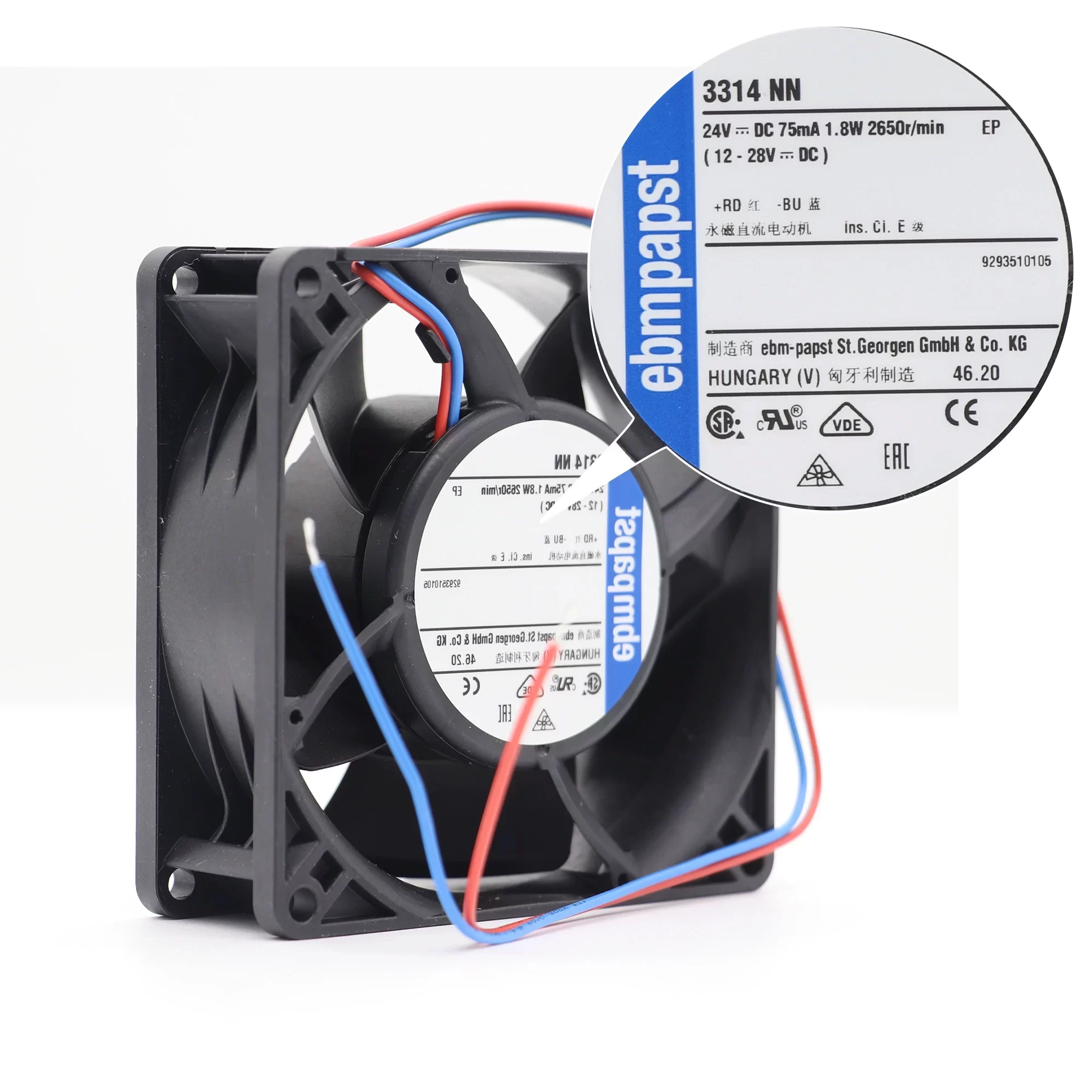

The ebmpapst 3314 NN is a compact DC Axial Fan measuring 92x92x32mm. It operates on a 24VDC nominal voltage, with an operating voltage range from 18V to 28VDC. It consumes 1.8W of power and achieves a speed of 2650 RPM. This fan delivers an airflow of 80 m³/h (47.09 CFM) and has a sound pressure level of 35 dB(A) and a sound power level of 4.7 B. It features a durable ball bearing system, with a service life of 65,000 hours at 40°C. The housing is made of glass-fiber reinforced PBT plastic, and the impeller is made of glass-fiber reinforced PA plastic. The fan has an IP40 degree of protection and operates in ambient temperatures from -20°C to 75°C. It includes 2-wire leads (AWG 24 UL 1061, TR 64) for connection.

3314 NN Fan Parameters
Model: 3314 NN
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 92 x 92 x 32 mm
Weight: 0.19 kg
Nominal Voltage: 24 VDC
Nominal Voltage Range: 18 – 28 VDC
Speed: 2650 RPM
Power Consumption: 1.8 W
Airflow: 80 m³/h (47.09 CFM)
Sound Power Level: 4.7 B
Sound Pressure Level: 35 dB(A)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 75 °C
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Airflow Direction: Exhaust over struts
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP40
Bearing Type: Ball Bearing
Service Life L10 at 40 °C: 65000 h
Service Life L10 at Maximum Temperature: 27500 h
Cable: 2-wire leads AWG 24 UL 1061, TR 64
Application: General electronics cooling, Control cabinets, Medical equipment, IT and server cooling.
