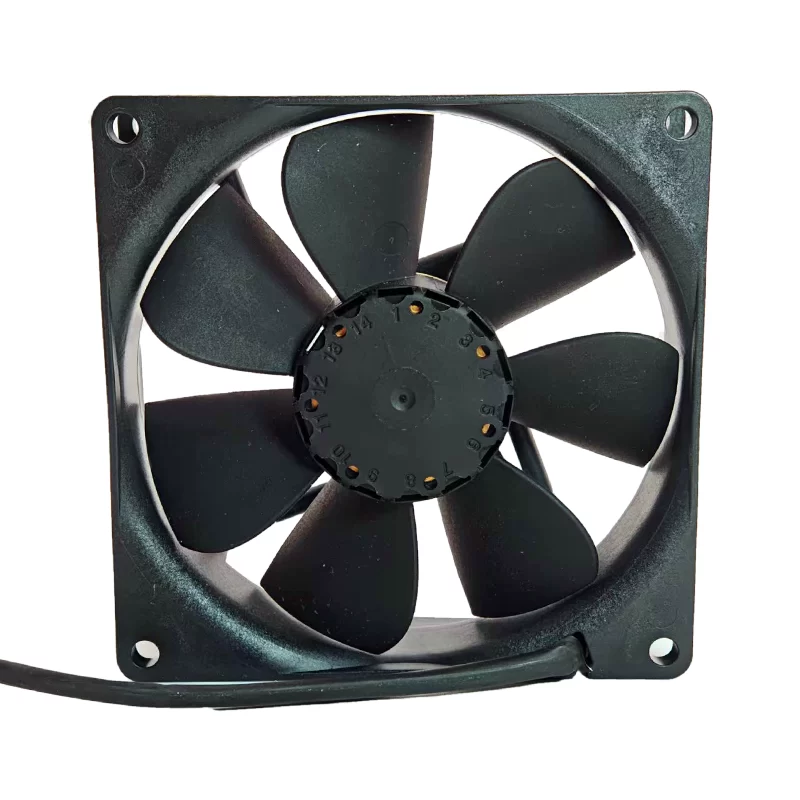

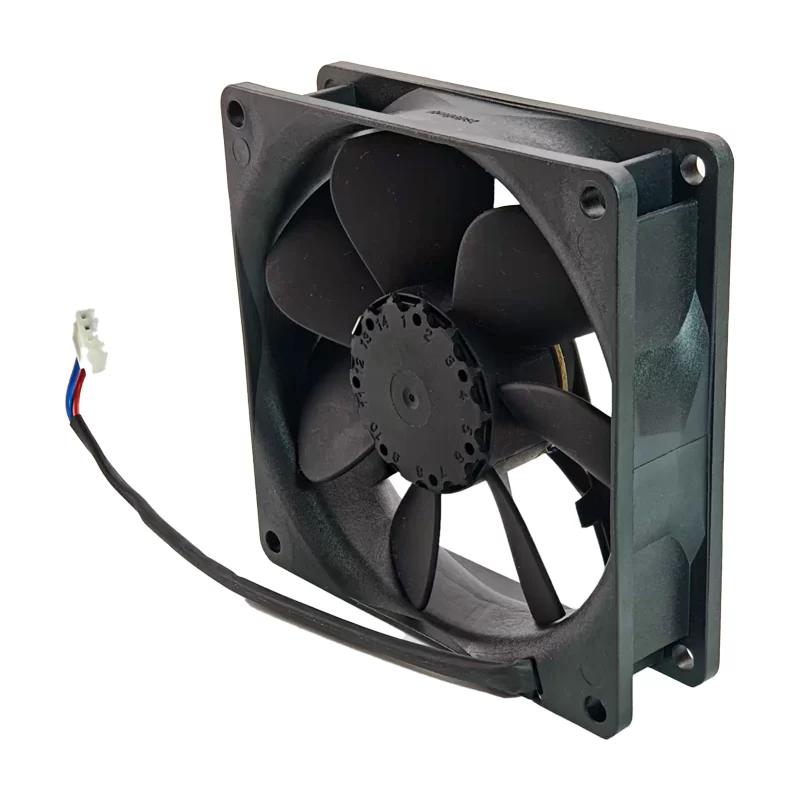

3414NHH ebmpapst 24V 0.14A 3.2W inverter fan

Description

The ebmpapst 3414NHH is a highly efficient DC axial fan with compact dimensions of 92 x 92 x 25 mm. It operates on a rated voltage of 24V DC, supporting an operating range of 18-26V. The fan draws 0.14 A of current, consuming 3.2 W of power. It delivers an airflow of 102 m³/h at a speed of 3250 RPM, with a low noise level of 39 dB(A). It features a ball bearing with a long service life of 70,000 hours at 40°C (35,000 hours at maximum temperature). The housing is made from glass-fiber reinforced PBT plastic and the impeller from glass-fiber reinforced PA plastic. The fan weighs 0.1 kg, is terminated with stripped and tin-plated AWG 24 cable leads, and includes motor protection against reversed polarity and blocked rotors.

3414NHH Fan Parameters
Manufacturer: ebmpapst
Model: 3414NHH
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 18-26 V
Current Rating: 0.14 A
Power Consumption: 3.2 W
Airflow: 102 m³/h
Speed: 3250 RPM
Noise Level: 39 dB(A)
Weight: 0.1 kg
Bearing Type: Ball bearing
Termination: Cable Leads (AWG 24, stripped and tin-plated)
Housing Material: Glass-fiber reinforced PBT plastic
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 °C to 70 °C
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor
Service Life: L10 at 40 °C 70000 h; L10 at maximum temperature 35000 h
Motor Protection: Protection against reverse polarity and blocked rotor.
Approval: VDE, CSA, UL
Option: Alarm signal

Application
The 3414NHH fan is suitable for applications requiring a balance of efficient cooling and quiet operation in a compact form factor, such as in electronics enclosures, IT equipment, medical devices, and industrial control panels.
