Description

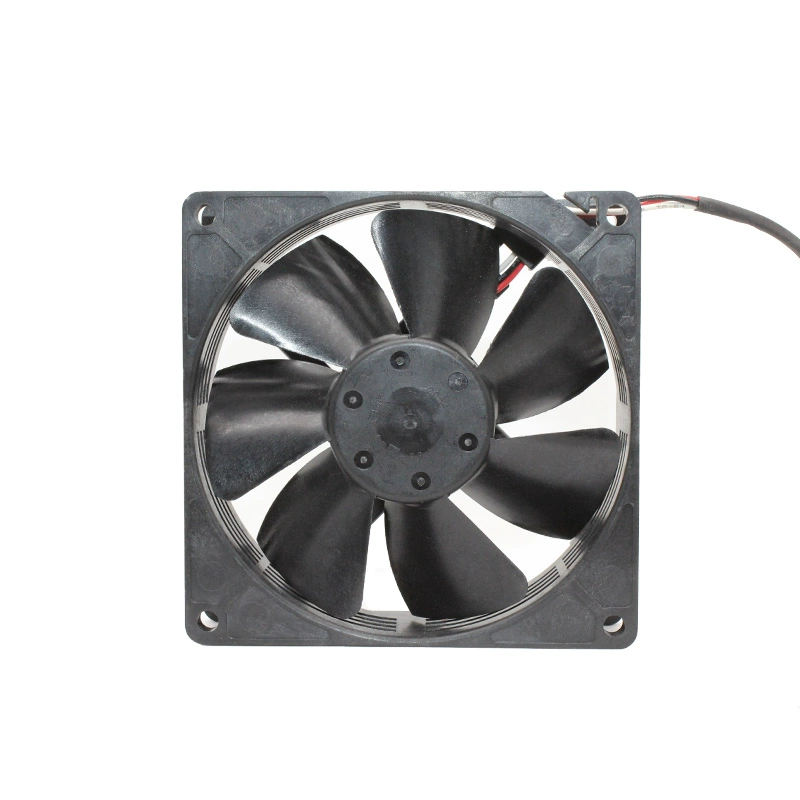

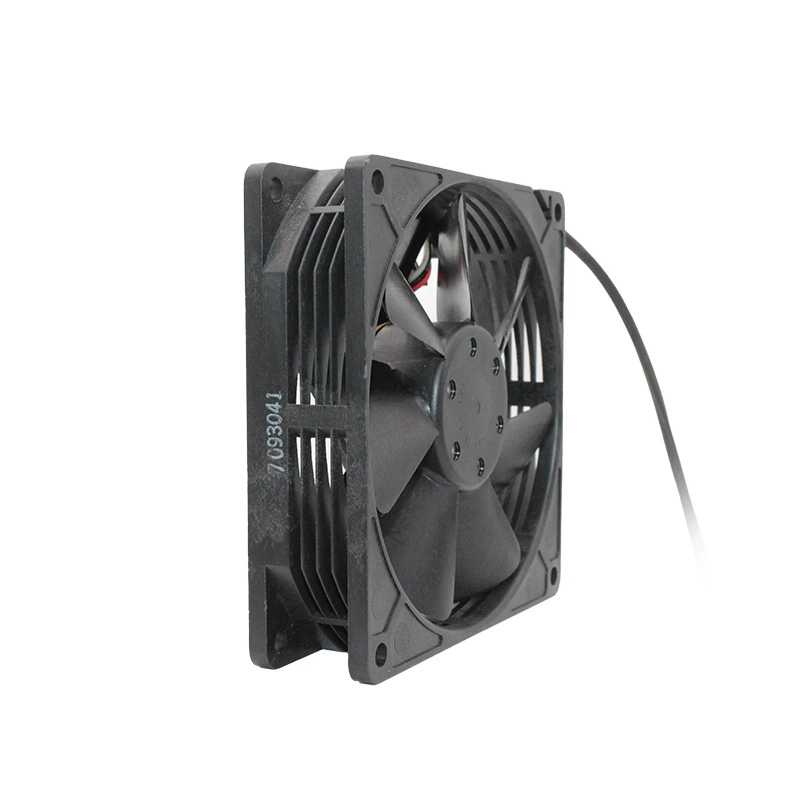

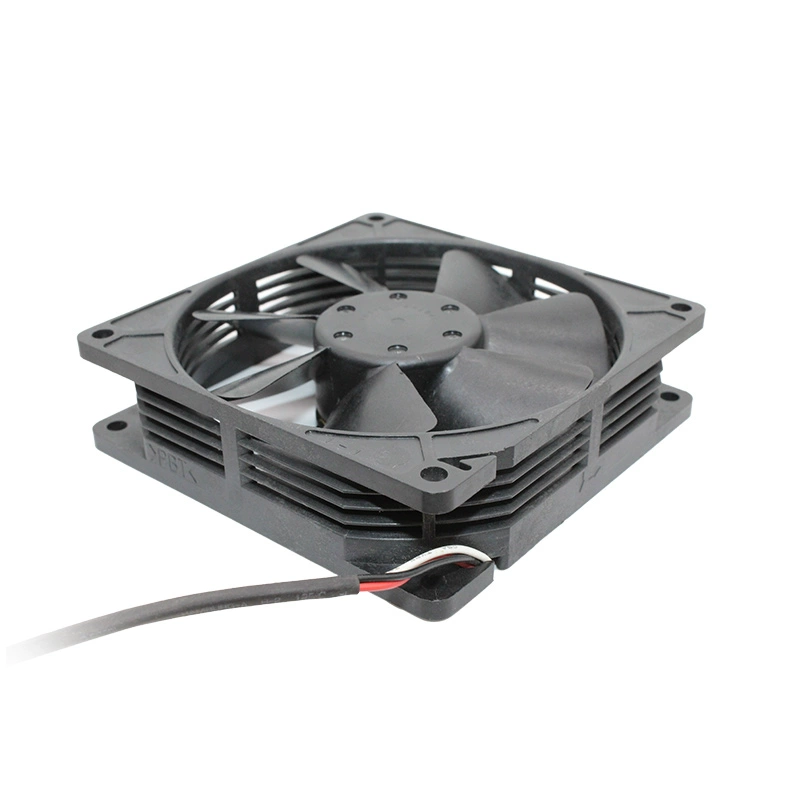

The NMB 3610KL-04W-B29-X02, now updated with a 0.12A current and a 3-wire configuration, is a reliable 12V DC axial cooling fan from NMB Technologies, measuring 92x92x25mm. This fan provides a balanced performance with a focus on quieter operation, suitable for general-purpose cooling applications. Operating at 0.12A (1.44W), it achieves a speed of 1750 RPM, delivering 31.8 CFM of airflow and a static pressure of 0.063 inch-H2O. Equipped with durable ball bearings, it offers a long life expectancy of 70,000 hours at 25°C. The 3-wire connector provides a speed sensor for monitoring, ensuring reliable performance with a low noise level of 27.0 dBA, making it ideal for environments where acoustic performance is important.
Model Number: 3610KL-04W-B29-X02
Manufacturer: NMB Technologies Corporation
Series: 3610KL Series
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.12A
Rated Power: 1.44W
Speed: 1750 RPM
Airflow: 31.8 CFM / 0.90 m³/min
Static Pressure: 0.063 inch-H2O / 15.6 Pa
Noise Level: 27.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Speed Sensor, Auto Restart, Polarity Protection
