Description

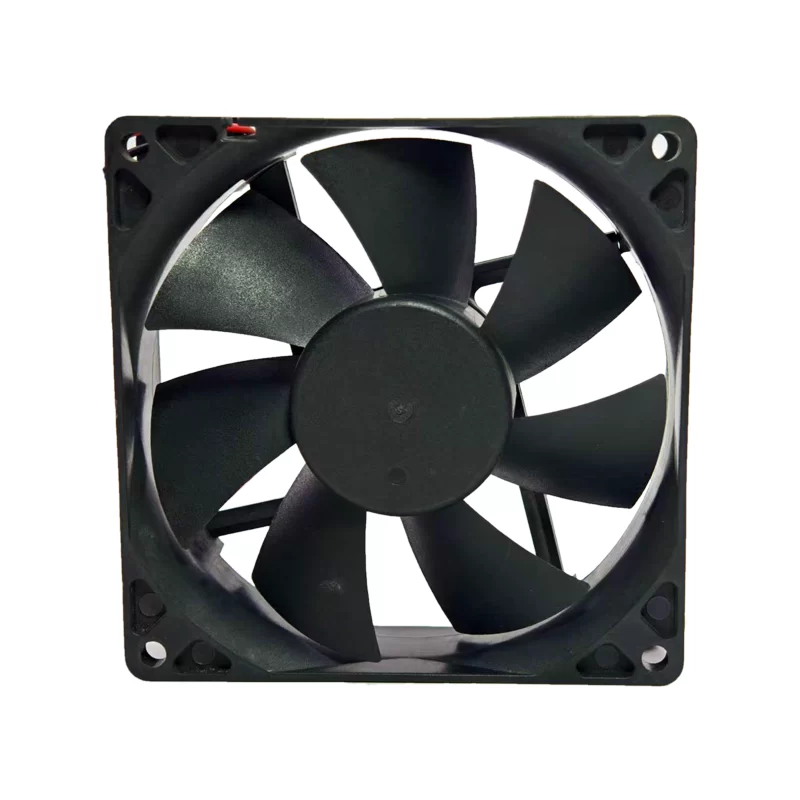

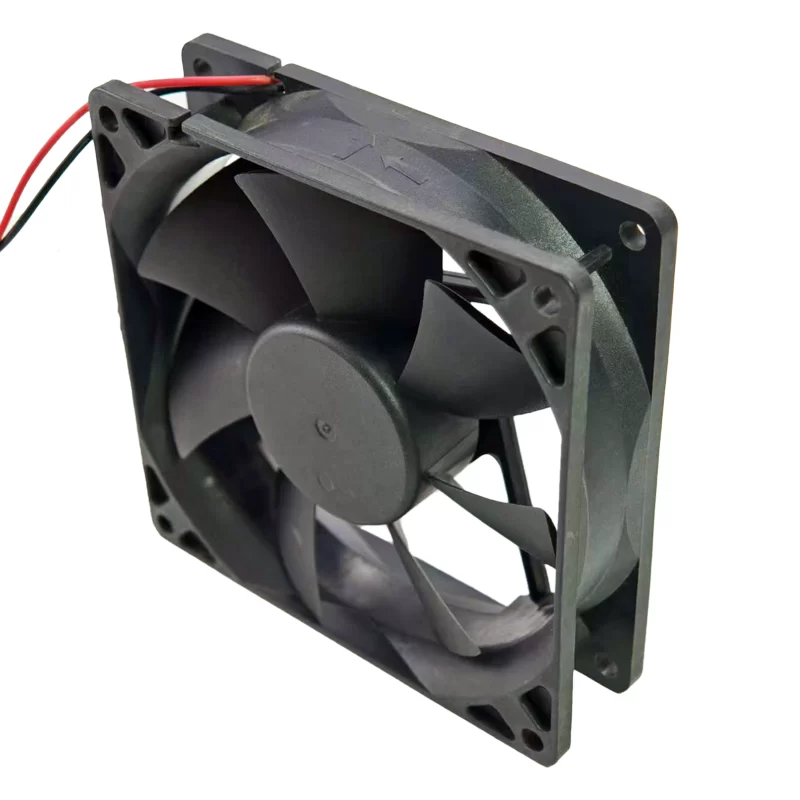

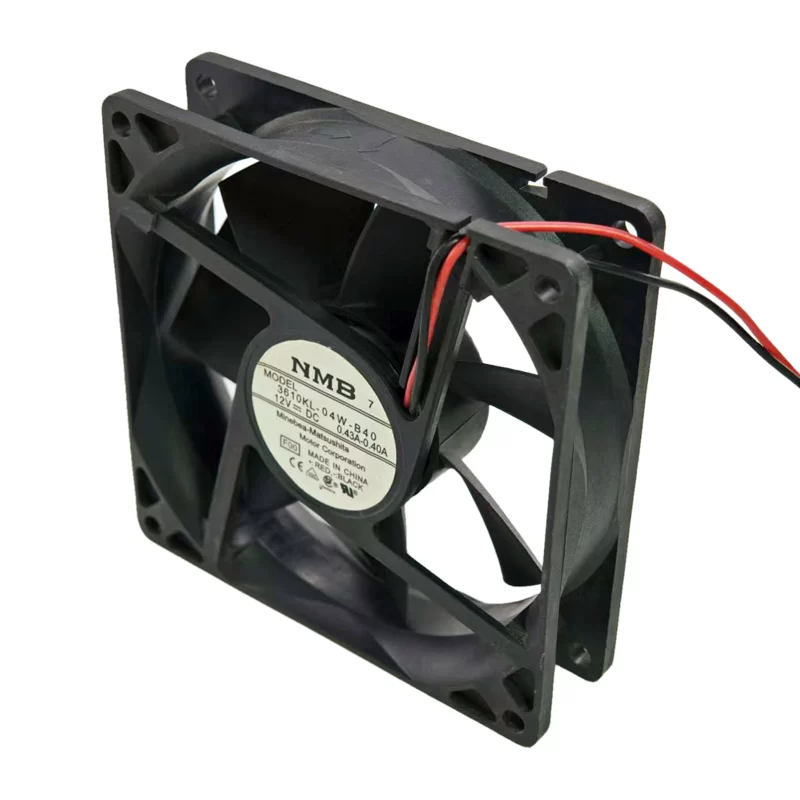

The NMB 3610KL-04W-B40-F00 is a 12V DC Axial Fan with dimensions of 92x92x25mm. It operates within a voltage range of 10.2 to 13.8V DC. The fan has a rated current of 0.22A and a power consumption of 2.64W, achieving a speed of 2850RPM. It provides an airflow of 80.87m³/h (47.6 CFM) and a static pressure of 37.1Pa (0.149 inchH2O), with a noise level of 37.5dB(A). It is equipped with ball bearings for a life expectancy of 60000 hours at 40°C. Both the frame and impeller are typically made of plastic (PBT). It commonly features a 2-wire termination. This model is designed to operate within an ambient temperature range of -10 to 70°C.
3610KL-04W-B40-F00 Fan Parameters
Model: 3610KL-04W-B40-F00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 10.2 .. 13.8 V DC
Rated Current: 0.22 A
Power Consumption: 2.64 W
Speed: 2850 RPM
Airflow: 80.87 m³/h (47.6 CFM)
Static Pressure: 37.1 Pa (0.149 inchH2O)
Noise Level: 37.5 dB(A)
Bearing Type: Ball Bearing
Material Frame: Plastic (PBT)
Material Impeller: Plastic (PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 40 °C: 60000 h
Termination: 2-wire leads
Application: Suitable for server cooling, networking equipment, industrial automation, and other applications requiring efficient and reliable DC airflow.
