Description

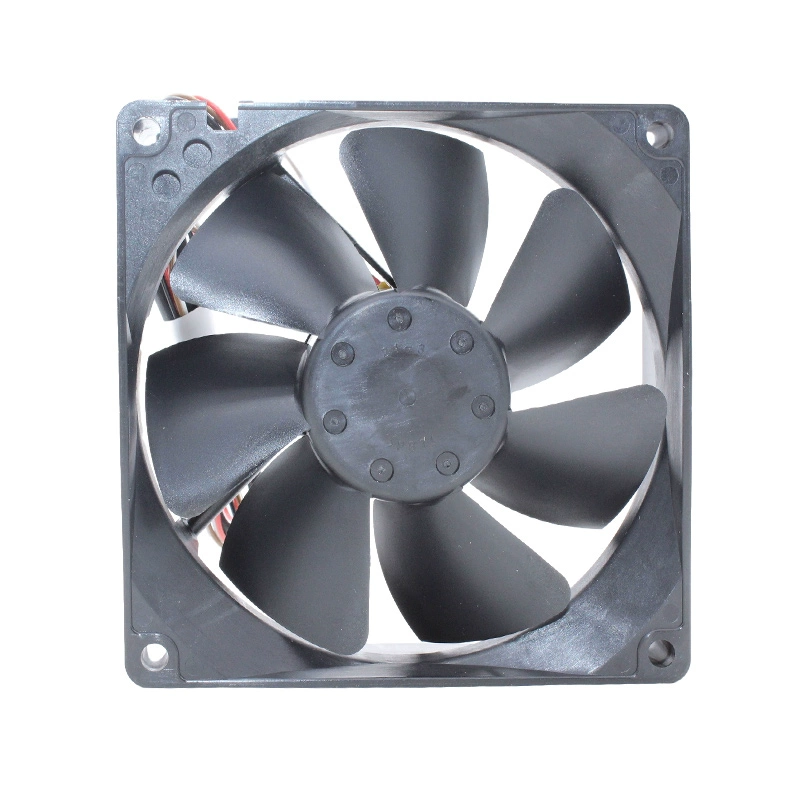

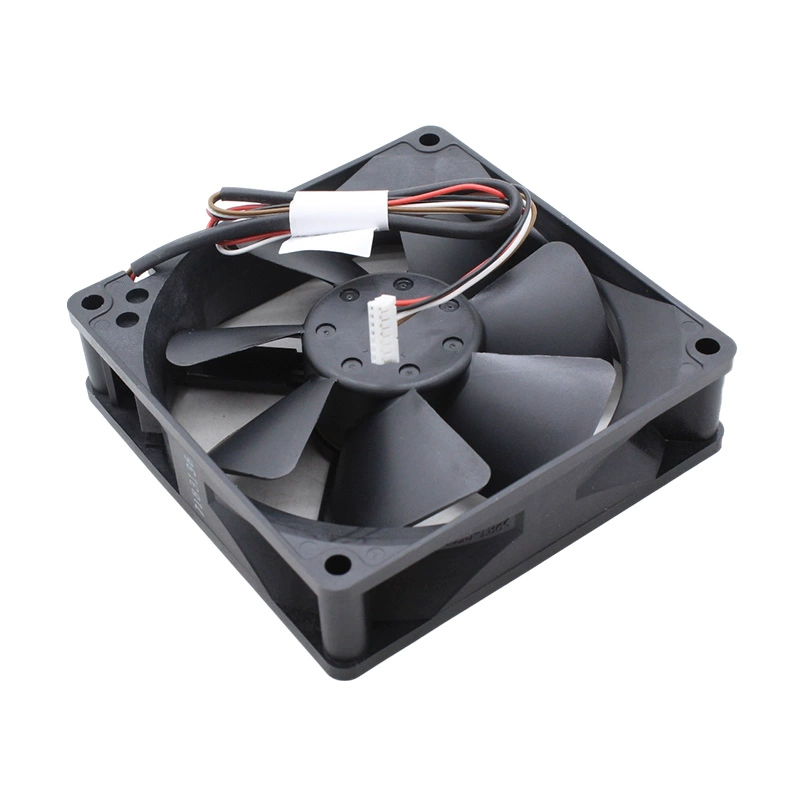

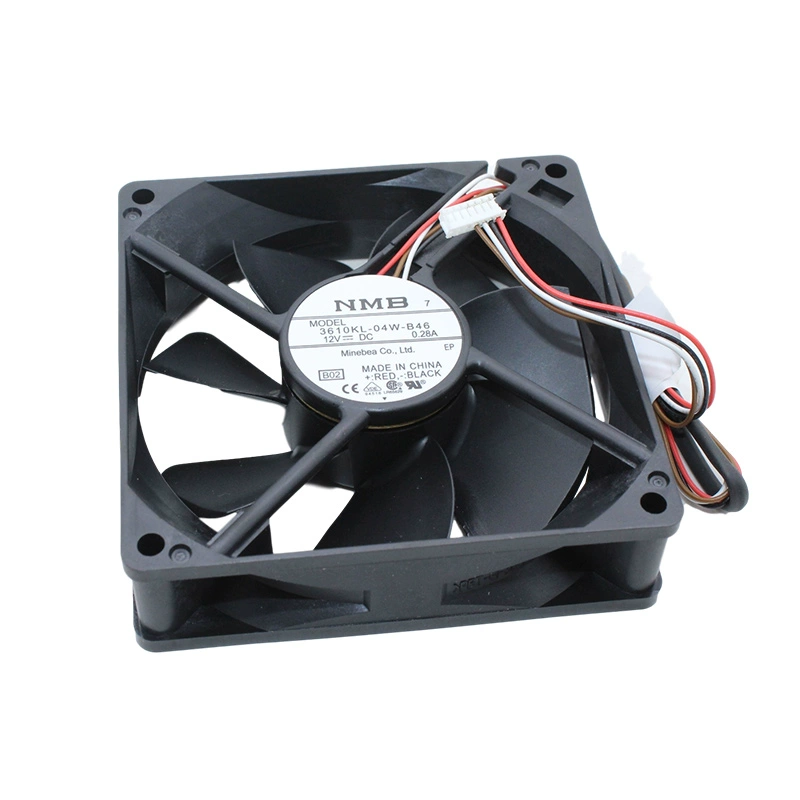

The NMB 3610KL-04W-B46-B02 is a high-performance 12V DC axial cooling fan from NMB Technologies, measuring 92x92x25mm. This fan is designed for efficient and reliable thermal management in various electronic systems. It operates at 0.28A (3.36W), achieving a speed of 2850 RPM. This generates a substantial 47.6 CFM of airflow and a static pressure of 0.15 inch-H2O, making it effective for cooling components or enclosures. Equipped with durable ball bearings, it boasts a reliable life expectancy of 70,000 hours at 25°C. Its 4-wire configuration includes a locked rotor sensor for tachometer output and also provides PWM control, allowing for precise speed adjustment based on cooling needs. This ensures enhanced system reliability and optimized performance, all while operating at a noise level of 37.5 dBA.
Model Number: 3610KL-04W-B46-B02
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.28A
Rated Power: 3.36W
Speed: 2850 RPM
Airflow: 47.6 CFM / 1.35 m³/min
Static Pressure: 0.15 inch-H2O / 37.1 Pa
Noise Level: 37.5 dBA
Dimensions: 92mm x 92mm x 25mm
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Locked Rotor Sensor, Auto Restart, Polarity Protection, PWM Control
