Description

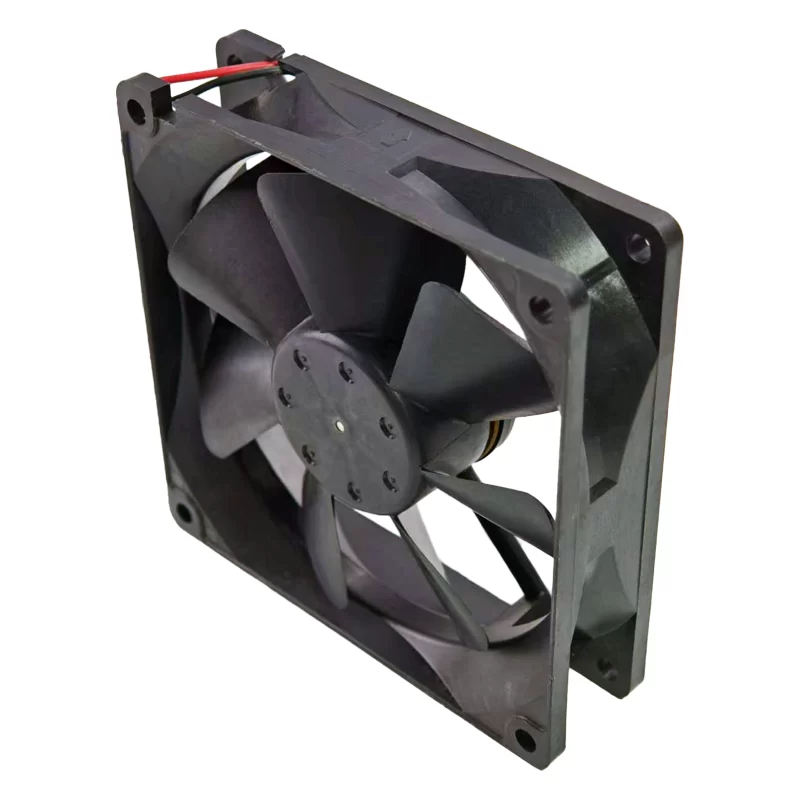

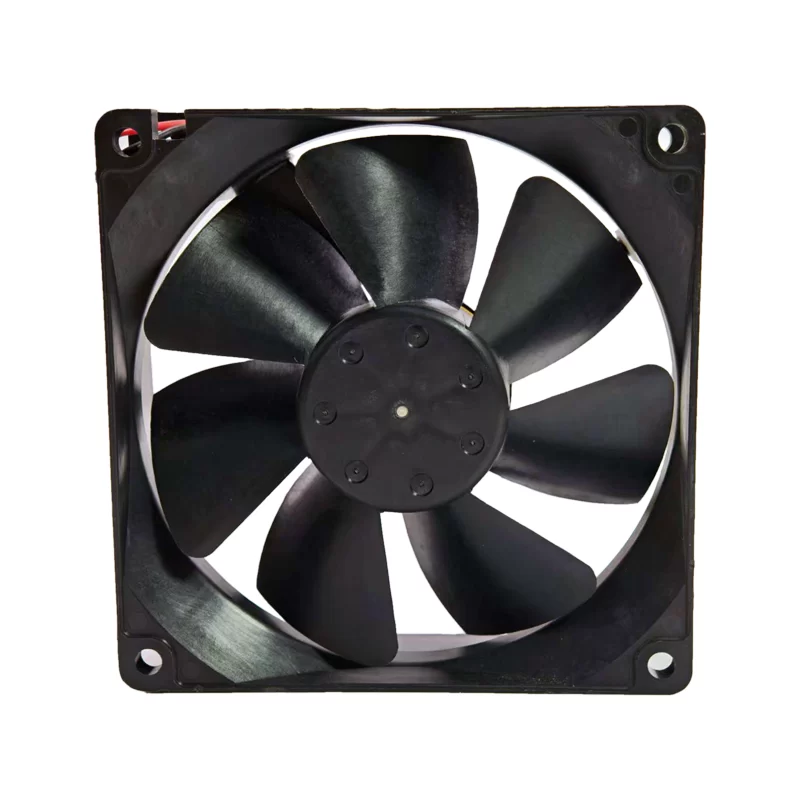

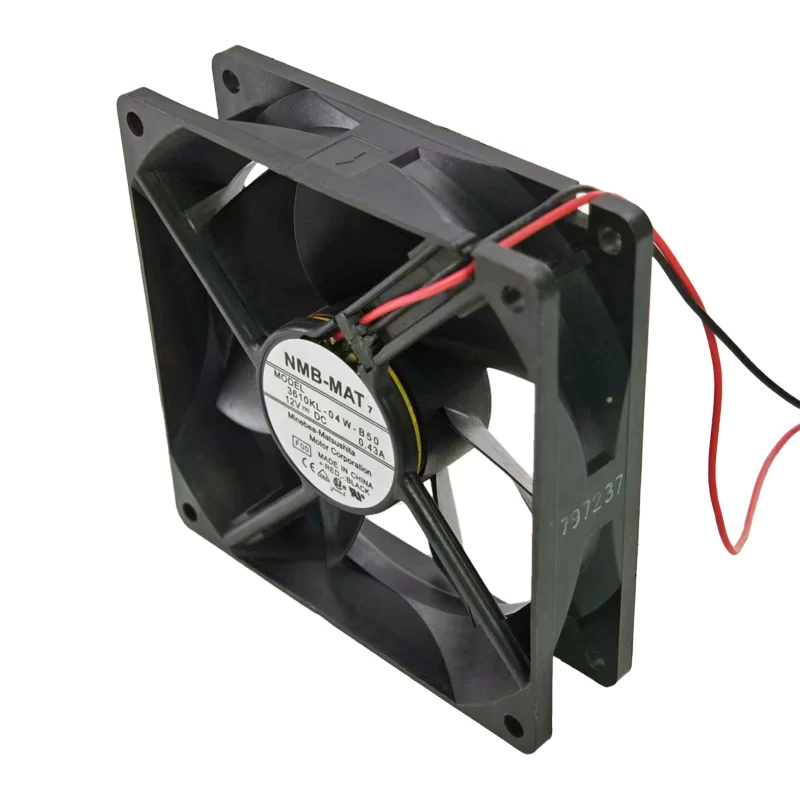

The NMB 3610KL-04W-B50-F00 is a DC Axial Fan with dimensions of 92x92x25mm, designed for 12VDC operation within a voltage range of 9 to 13.8V. It draws 0.43A (3.8W), spins at 3200RPM, and delivers an airflow of 93.0m³/h (54.7CFM), while producing a noise level of 41dB(A). This fan features durable ball bearings, and its frame and impeller are constructed from UL94V-0 rated plastic (PBT). It comes with a 2-wire termination. It is widely used in sensitive electronic equipment, industrial machinery, and other applications requiring efficient and reliable cooling.
3610KL-04W-B50-F00 Fan Parameters
Model: 3610KL-04W-B50-F00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 9 .. 13.8 V DC
Rated Current: 0.43 A
Power Consumption: 3.8 W
Speed: 3200 RPM
Airflow: 93.0 m³/h (54.7 CFM)
Static Pressure: Not specified
Noise Level: 41 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 60 °C: 60000 h
Termination: 2-wire leads
Approval: UL, CSA, TUV, CE
Application: Electronic equipment, industrial machinery, telecommunications, and general cooling.
