Description

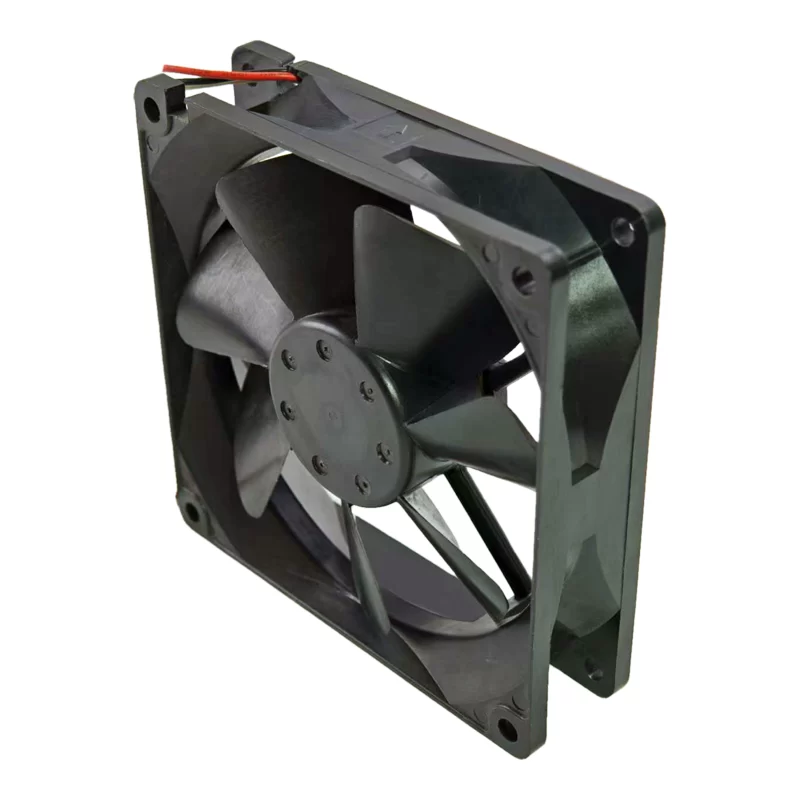

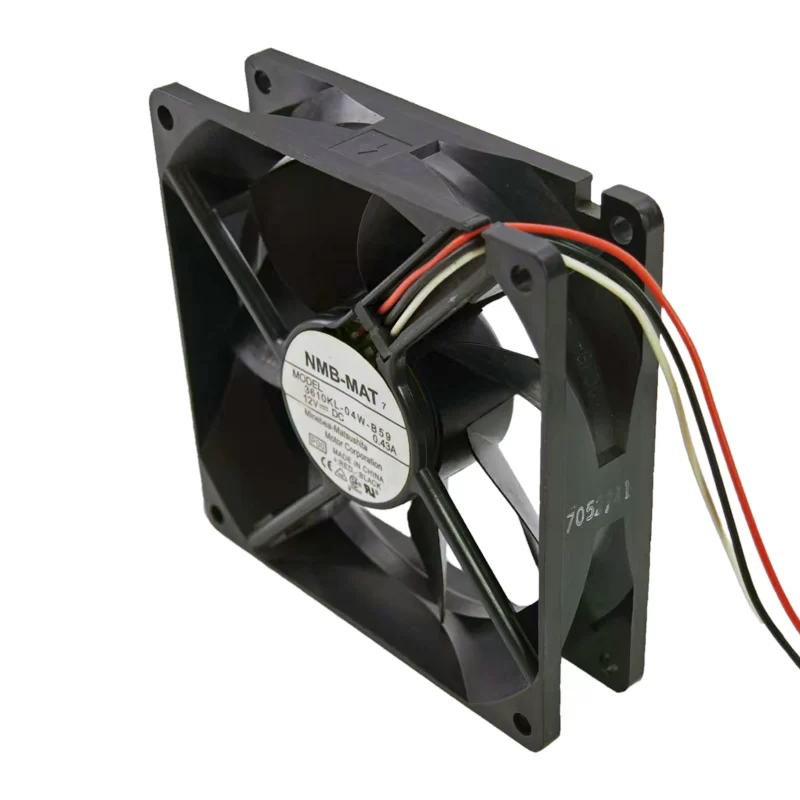

The NMB 3610KL-04W-B59-P00 is a high-performance 12VDC Axial Fan with dimensions of 92x92x25mm. It operates within a voltage range of 9 to 13.8VDC. The fan has a rated current of 0.43A and a power consumption of 5.16W.This fan is equipped with ball bearings for durable and reliable operation, offering a life expectancy of 60000h (L10) at 60°C. Both the frame and impeller are made of UL94V-0 rated plastic (PBT). It features a 3-wire termination, typically including connections for power (Red: +), ground (Black: -), and a pulse sensor (Yellow). This model incorporates locked rotor protection and reverse polarity protection. It is designed to operate within an ambient temperature range of -10 to 70°C and holds UL, CSA, TUV, and CE approvals. It is suitable for various applications such as servers, industrial machinery, and general electronic cooling.
3610KL-04W-B59-P00 Fan Parameters
Model: 3610KL-04W-B59-P00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 9 .. 13.8 V DC
Rated Current: 0.43 A
Power Consumption: 5.16 W
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 60 °C: 60000 h
Termination: 3-wire leads (Red: +, Black: -, Yellow: Pulse Sensor)
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Features: Pulse Sensor
Approval: UL, CSA, TUV, CE
Application: Suitable for servers, industrial machinery, networking equipment, and general electronic cooling requiring reliable air movement.
