Description

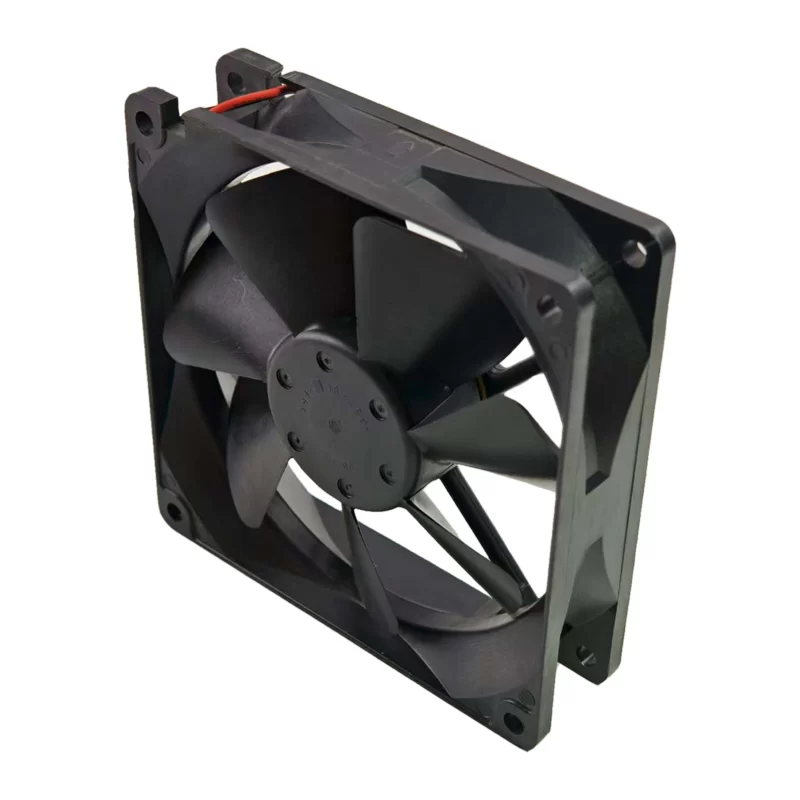

The NMB 3610KL-05W-B60-P00 is a high-performance 24VDC Axial Fan with dimensions of 92x92x25mm. It operates within a voltage range of 14 to 27.6VDC. The fan has a rated current of 0.26A and a power consumption of 6.24W. This fan is equipped with ball bearings for durable and reliable operation, offering a life expectancy of 60000h (L10) at 60°C. Both the frame and impeller are made of UL94V-0 rated plastic (PBT). It features 2-wire termination and incorporates locked rotor protection and reverse polarity protection. It is designed to operate within an ambient temperature range of -10 to 70°C and holds UL, CSA, TUV, and CE approvals. It is suitable for various applications such as servers, industrial machinery, and general electronic cooling requiring reliable air movement.
3610KL-05W-B60-P00 Fan Parameters
Model: 3610KL-05W-B60-P00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 14 .. 27.6 V DC
Rated Current: 0.26 A
Power Consumption: 6.24 W
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy L10 at 60 °C: 60000 h
Termination: 2-wire leads
Motor Protection: Locked Rotor Protection, Reverse Polarity Protection
Features: Not specified for 2-wire termination
Approval: UL, CSA, TUV, CE
Application: Suitable for servers, industrial machinery, networking equipment, and general electronic cooling requiring reliable air movement.
