Description

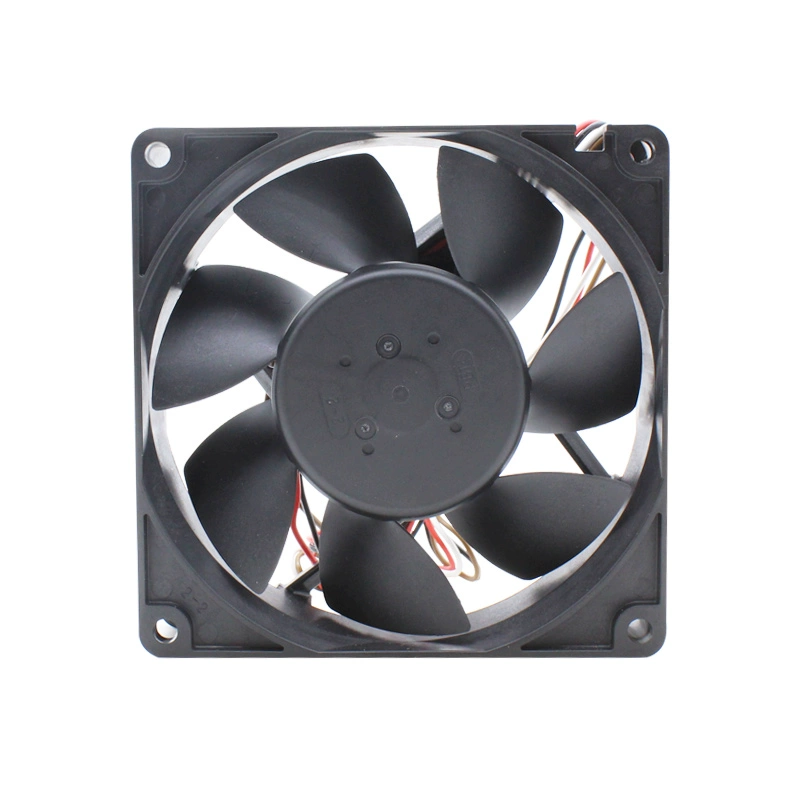

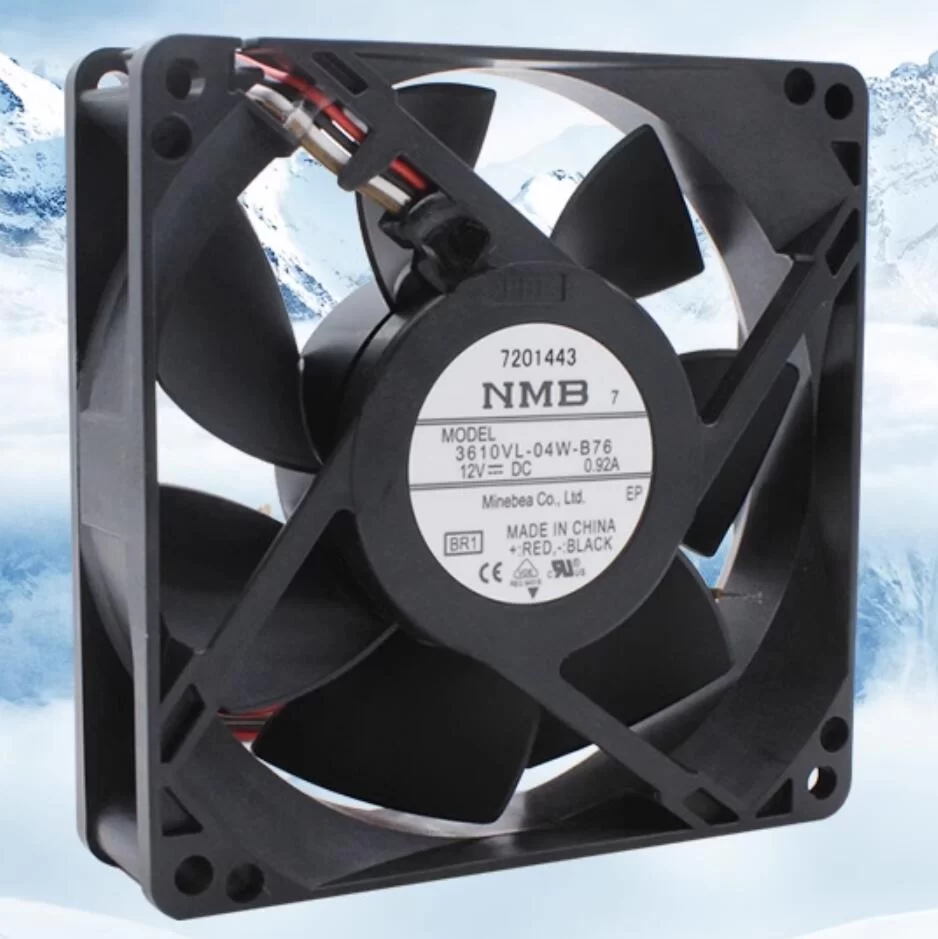

The NMB 3610VL-04W-B76-BR1 is an extremely high-performance 12V DC axial cooling fan. Measuring 92mm x 92mm x 25mm, this fan is engineered for critical thermal management in demanding applications such as high-end servers, industrial machinery, and telecommunications equipment, especially where high airflow and static pressure are paramount, even in environments requiring waterproof capabilities. It operates at a rated voltage of 12V DC and draws a significant current of 0.92A, resulting in a power consumption of 11.04W. This robust power allows it to achieve a high rotational speed of 5600 RPM, delivering an exceptional airflow of 115.0 CFM and a high static pressure of 0.48 inch-H2O. Its noise level is 51.0 dBA. The fan features durable ball bearings for an operational lifespan of 40,000 hours at 60°C. It comes with 4-wire leads for power, ground, PWM speed control, and a tachometer output for speed monitoring, along with auto-restart and polarity protection.
Model Number: 3610VL-04W-B76-BR1
Manufacturer: NMB Technologies Corporation
Series: VL Series
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Rated Current: 0.92A
Rated Power: 11.04W
Speed: 5600 RPM
Airflow: 115.0 CFM (3.26 m³/min)
Static Pressure: 0.48 inch-H2O (119 Pa)
Noise Level: 51.0 dBA

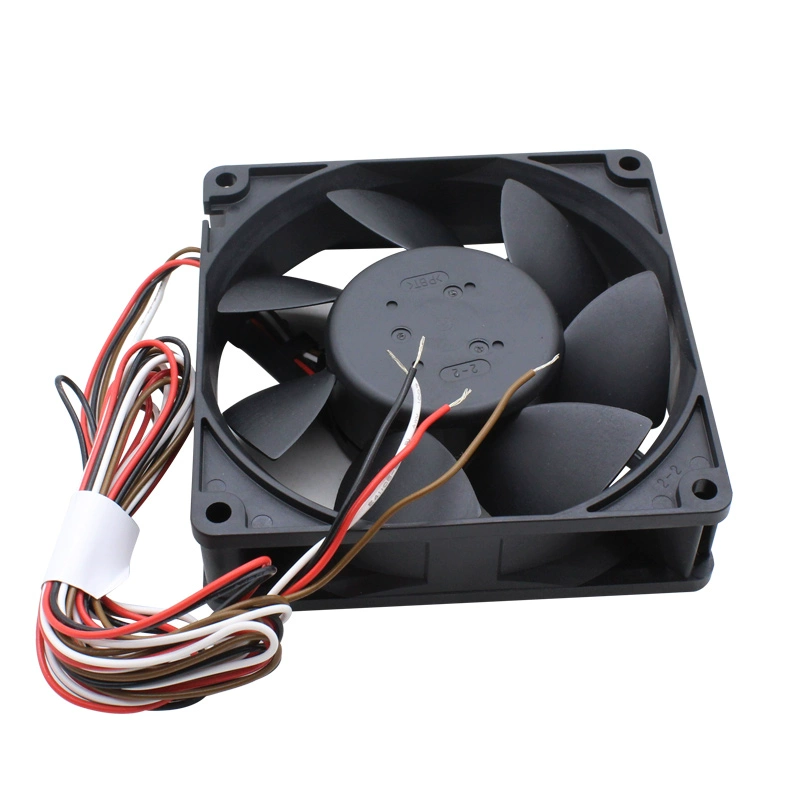

Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, PWM Control, Tachometer Output, Waterproof
Operating Temperature: -10°C to +70°C
Weight: 135g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
