Description

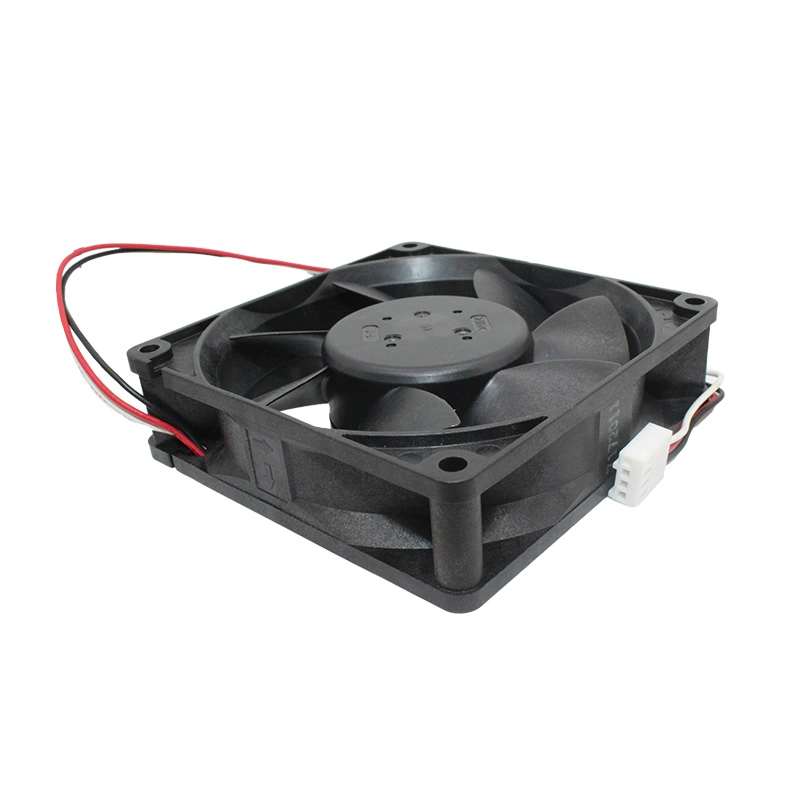

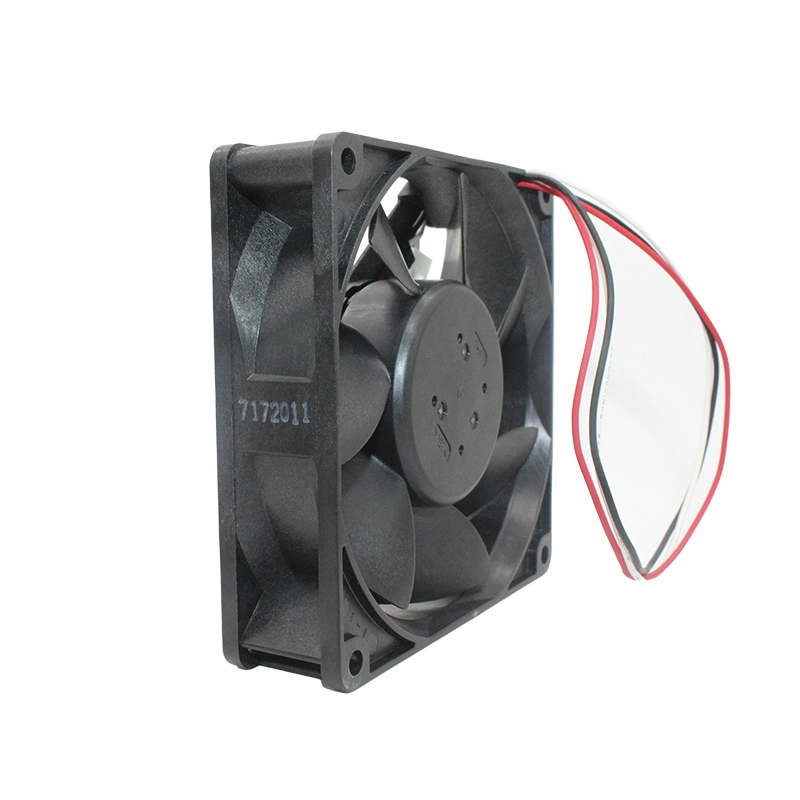

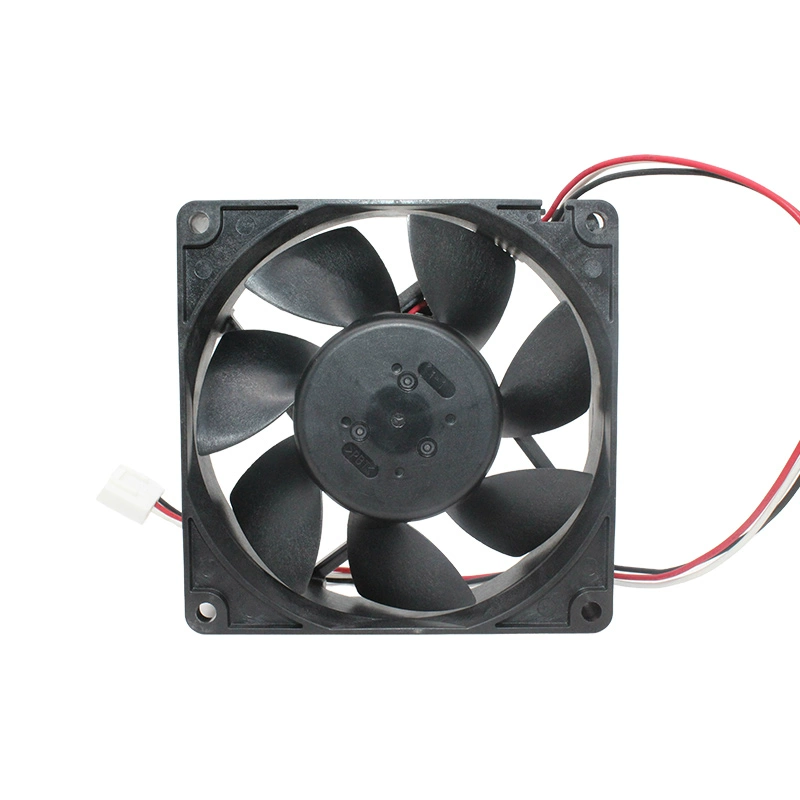

The NMB 3610VL-04W-B79-B50, now specified with a powerful 0.92A current, represents an even more extreme high-performance 12V DC axial cooling fan from NMB Technologies, maintaining its 92x92x25mm dimensions. This fan is engineered for the most demanding thermal management applications where maximum airflow and static pressure are critical.
It consumes 11.04W and achieves a blistering speed of 6800 RPM. This results in an incredibly high airflow of 118.0 CFM and a significant static pressure of 0.827 inch-H2O, making it exceptionally effective for pushing air through highly restrictive environments like tightly packed server blades, high-density power supplies, or specialized industrial machinery.
Equipped with durable ball bearings, it boasts an excellent life expectancy of 100,000 hours at 25°C. Its 3-wire configuration provides a speed sensor for real-time monitoring of fan status, ensuring reliable system operation. While delivering such immense power, it operates at a noise level of 57.0 dBA, making it a top-tier solution for situations prioritizing performance above all else.
Model Number: 3610VL-04W-B79-B50
Manufacturer: NMB Technologies Corporation
Series: 09225VA
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Rated Current: 0.92A
Rated Power: 11.04W
Speed: 6800 RPM
Airflow: 118.0 CFM / 3.34 m³/min
Static Pressure: 0.827 inch-H2O / 205.9 Pa
Noise Level: 57.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy (L10): 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Speed Sensor, Auto Restart, Polarity Protection
Approvals: CE, UL, VDE
