3656 ebmpapst 230V 12W axial fan

Description

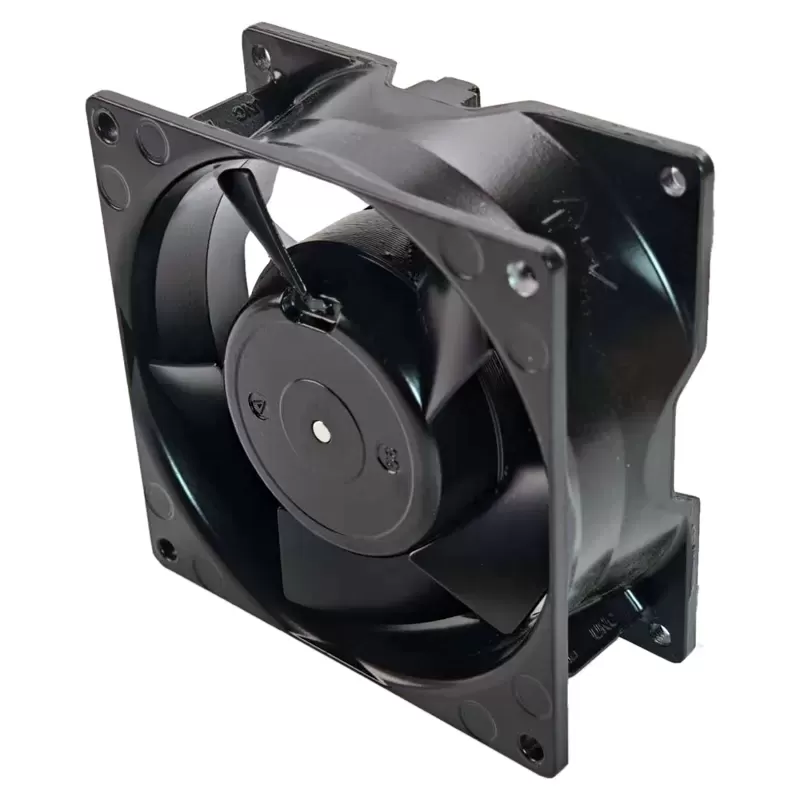

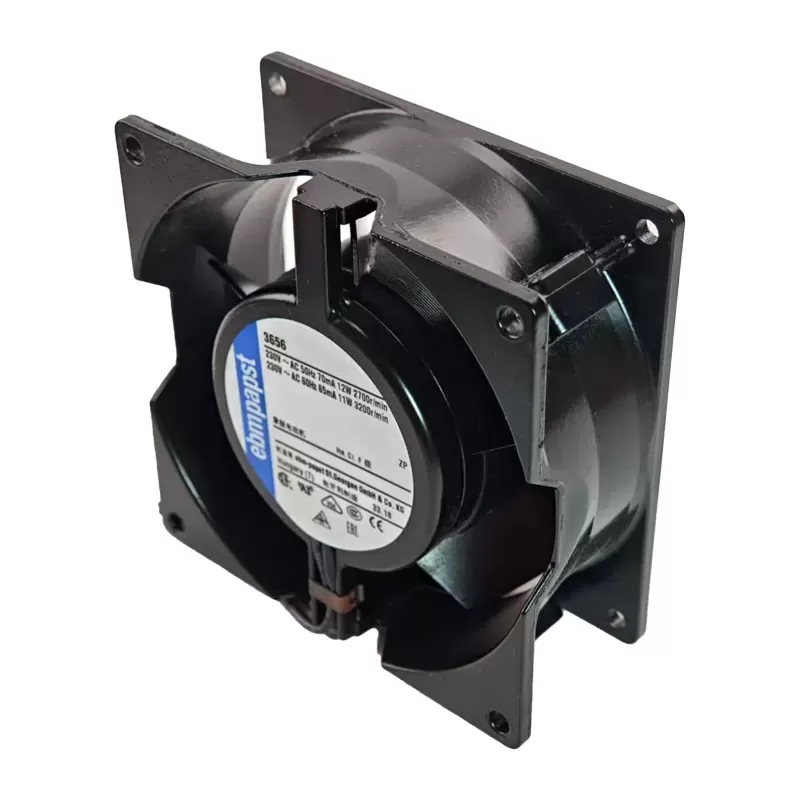

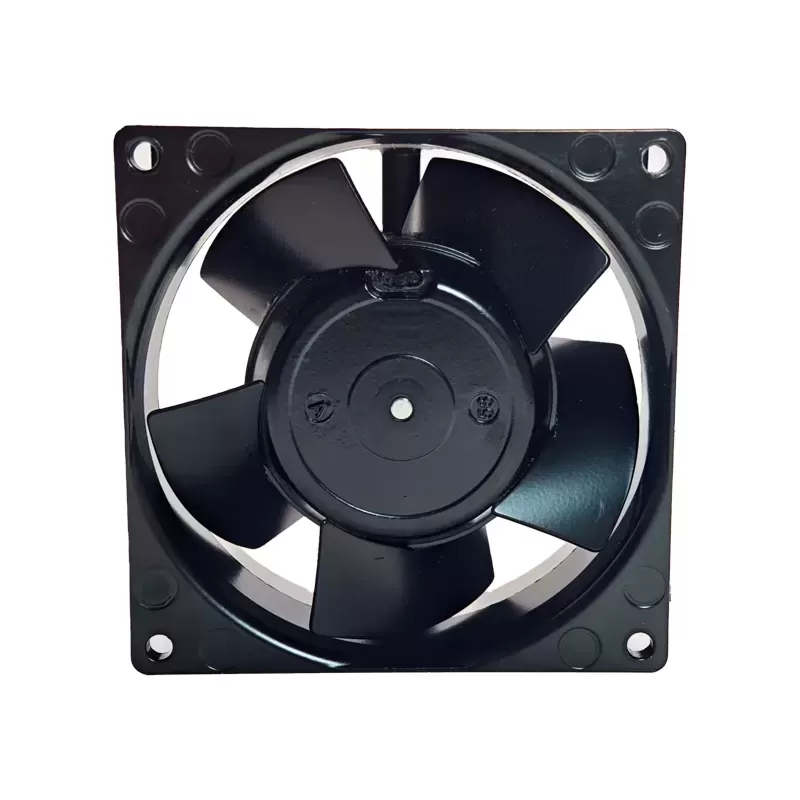

The ebmpapst 3656 is a compact and efficient AC axial fan with dimensions of 92.5mm x 92.5mm x 38mm. It operates on 230 VAC at 50 Hz, drawing approximately 0.052A (though some sources indicate slightly higher, up to 0.07A) of current and consuming 12W of power. This fan provides an airflow of 75 m³/h (44.1 CFM) and has a quiet noise level of 37 dB(A). Featuring a robust die-cast aluminum housing and a metal impeller, along with ball bearings for a long service life, it is designed for reliable cooling in control cabinets, electronic enclosures, and general industrial applications where space is limited. It is protected against overloading by impedance protection.

3656 Fan Parameters
Model: 3656
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 92.5mm x 92.5mm x 38mm
Rated Voltage: 230 VAC
Frequency: 50 Hz
Rated Current: 0.052A (typical)
Power Consumption: 12 W
Speed: 2700 RPM
Airflow: 44.1 CFM (75 m³/h)
Noise Level: 37 dB(A)
Bearing Type: Ball Bearing
Frame Material: Die-cast Aluminum
Impeller Material: Sheet Steel (painted black)
Termination: 2-Wire Leads (0.31m length, 18AWG)
Operating Temperature: -40°C to +75°C
Weight: 0.42 kg
Features: Impedance protected against overloading, exhaust over struts airflow direction.
Application: Control cabinets, electronic enclosures, general industrial cooling, machinery.
