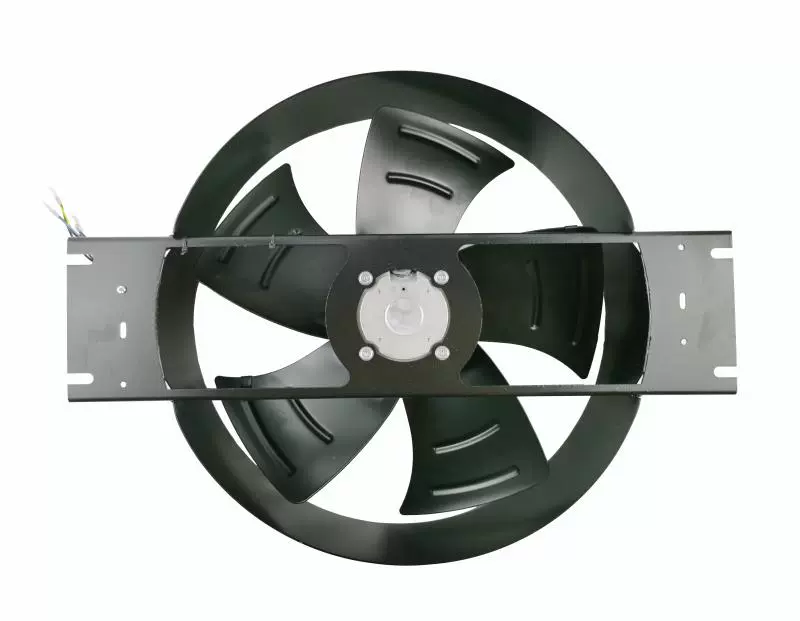

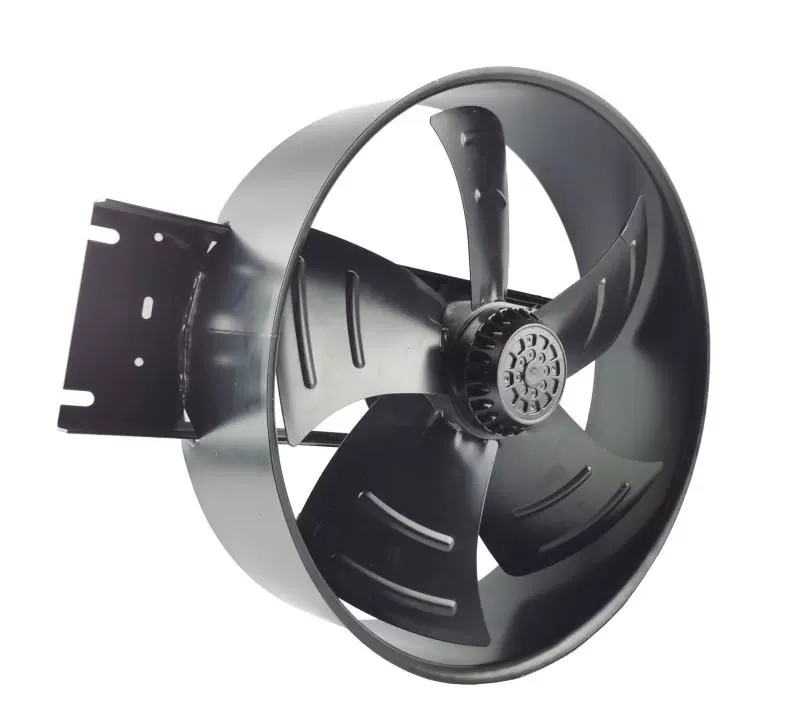

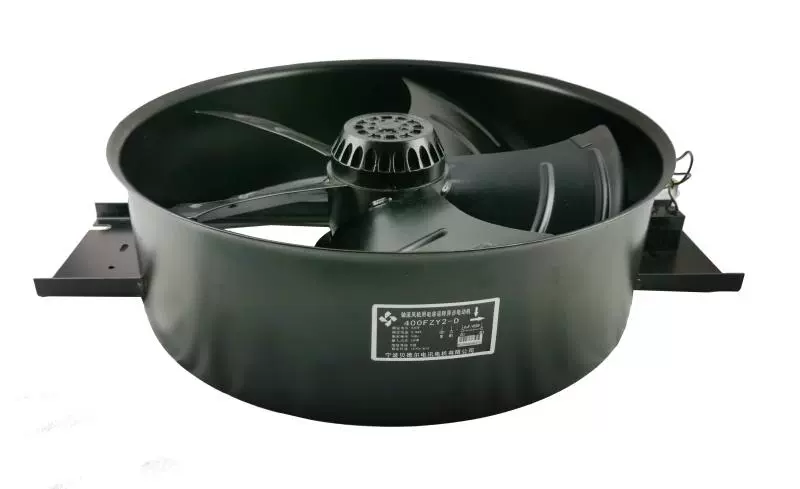

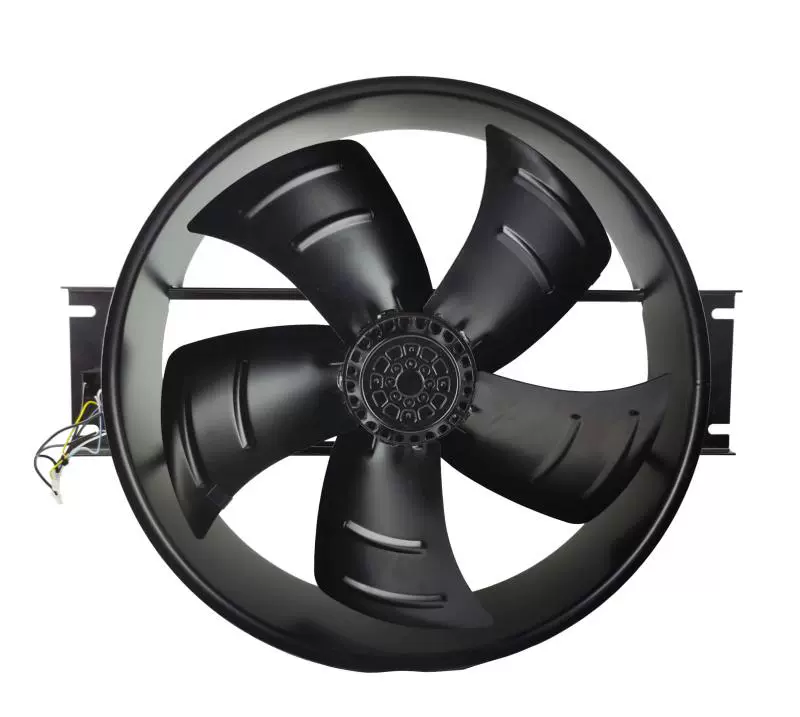

400FZY2-D Bedel 220V180W axial fan

Description

Model:400FZY2-D BedelVoltage: ‌200-240V AC‌ (50/60Hz dual-frequency compatible)
Current: ‌0.8A‌ (rated load)
Power: ‌180W‌ (input power)
Capacitor: ‌6.0μF/500V‌ (start/run capacitor)
Speed: ‌1440 RPM (50Hz) / 1560 RPM (60Hz)‌
Airflow: ‌4080 m³/h (50Hz) / 4400 m³/h (60Hz)‌
(Equivalent to ‌2400–2589 CFM‌)
Noise Level: ‌68–70 dBA‌ (1m distance)
Bearing Type: ‌Ball bearing‌ (long-life design)
Phase: ‌Single-phase‌
Mounting: ‌Bracket-mounted axial fan‌ (suitable for duct/equipment installation)
Industrial ventilation systems
High-temperature environments (e.g., ovens, transformers)

Bedel bracket fan 400FZY2-D 220V180W axial flow fan capacitor operation asynchronous motor
