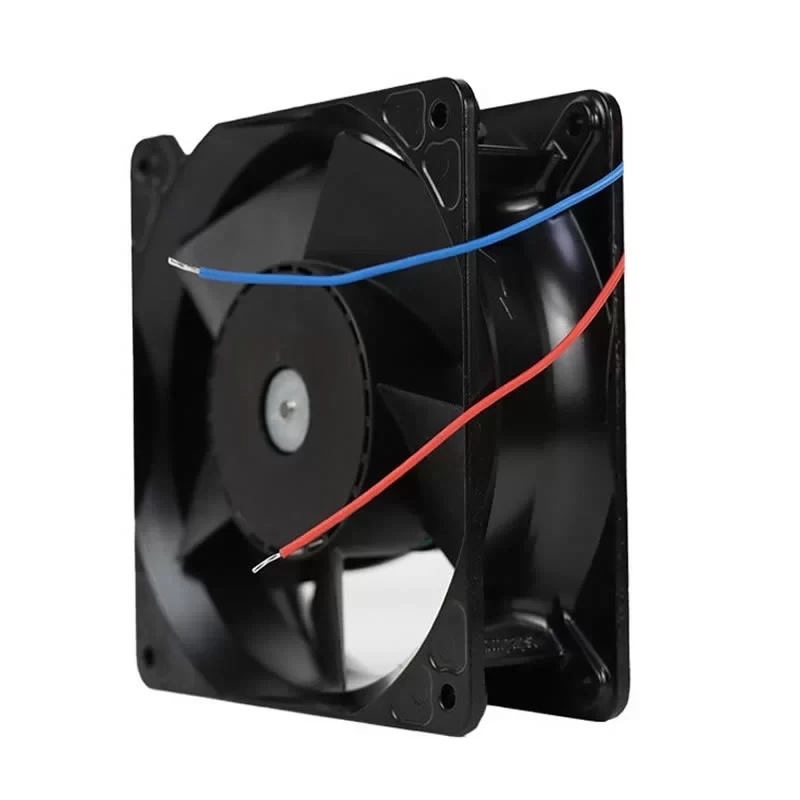

4112NH4 ebmpapst 12V 2.66A 119x119x38mm DC Axial Fan

Description

The ebmpapst 4112NH4 is an ultra-high-performance 12 VDC axial compact fan featuring a 119 mm aerodynamic impeller designed for intense thermal management in high-density electronic environments. Driven by a massive 2.66 A brushless DC motor, this unit is engineered for maximum air displacement, delivering an exceptional airflow at a rated speed of 6800 RPM with a power consumption of 32 W. The robust design features a die-cast aluminum housing and a glass-fiber reinforced plastic impeller, ensuring superior structural rigidity and heat dissipation under high-torque operation. As a specialized two-wire version, it is designed for direct-power applications requiring constant, high-velocity cooling. Equipped with premium ball bearings and electronic protection against reverse polarity and locked-rotor conditions, the 4112NH4 offers a professional-grade thermal solution for server racks and industrial power systems across an ambient temperature range of -20 °C to 65 °C.

4112NH4 Fan Parameters
Model Number: 4112NH4
Manufacturer: ebmpapst
Series: 4100 N Series
Type: DC Axial Fan
Size: 119 mm
Dimensions: 119 x 119 x 38 mm
Weight: 0.39 kg
Bearing Type: Ball Bearing
Nominal Voltage: 12 VDC
Voltage Range: 9.0 – 14.0 VDC
Power Consumption: 32 W
Nominal Current: 2.66 A
Speed: 6800 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 355 m³/h
Sound Power Level: 7.4 Bel(A)
Sound Pressure Level: 67 dB(A)
Motor Design: Brushless DC motor
Motor Protection: Electronic protection against reverse polarity and locked-rotor
Insulation Class: Class E
Electrical Hookup: 2 Lead wires (Red: +12V; Blue: GND)
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Intake over struts
Impeller Material: Glass-fiber reinforced plastic (PA)
Housing Material: Die-cast aluminum
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -20 – +65 °C
Service Life (L10 @ 40 °C): 62500 h
Standard Compliance: EN 60950-1, CE
Approval Agency: VDE, UL, CSA

Application
The ebmpapst 4112NH4 axial fan is primarily utilized in high-performance server racks, telecommunications infrastructure, industrial power supplies, data center cooling systems, and high-density electronic enclosures.
