Description

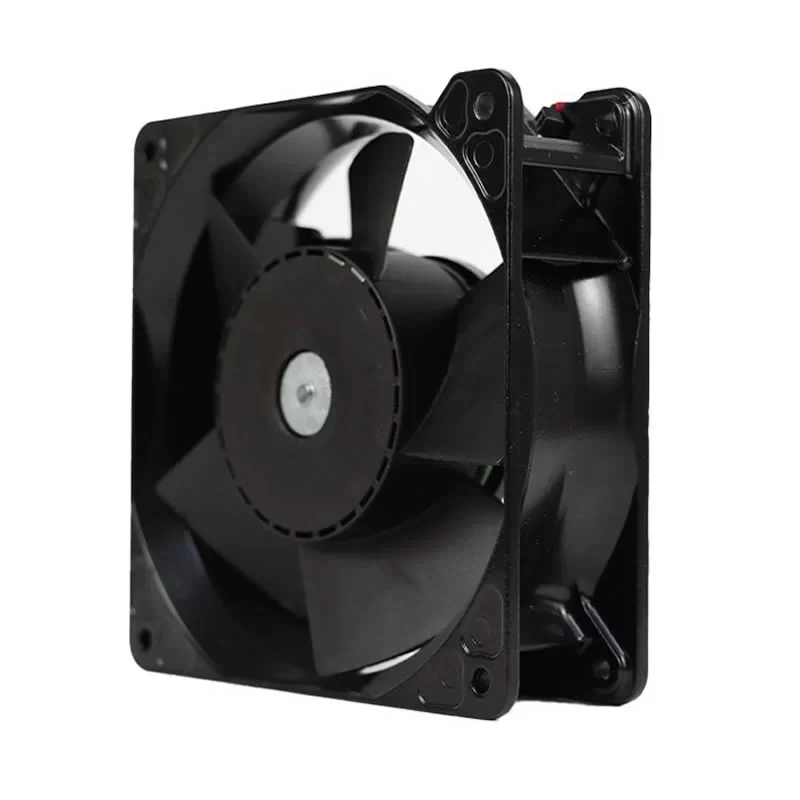

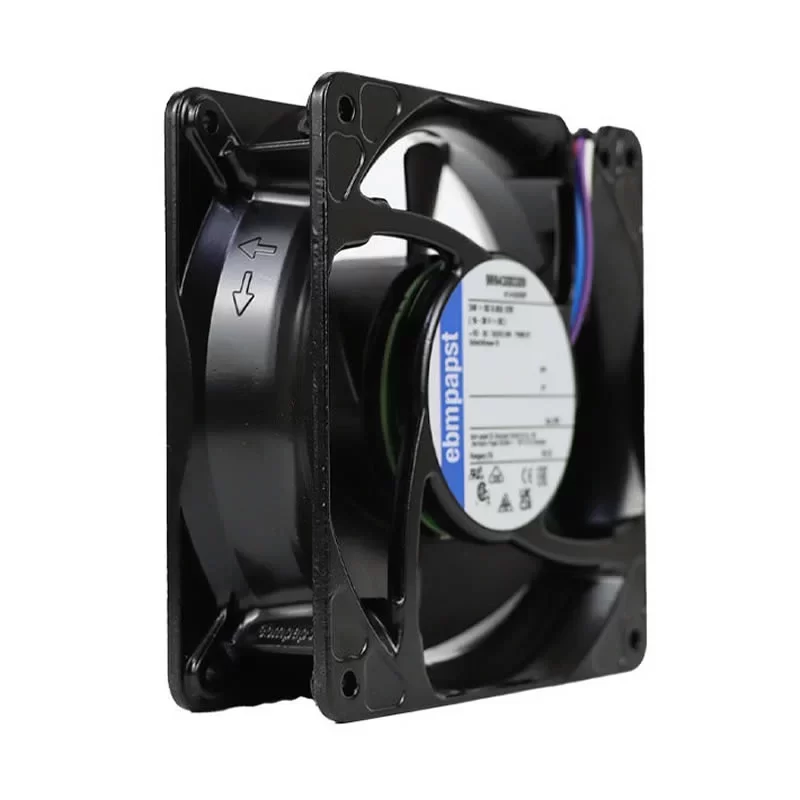

The ebmpapst 4114N/2H3P-309 (9694300309) is a specialized 24 V DC Axial Fan with dimensions of 119 x 119 x 38 mm, meticulously engineered for precision thermal management in high-end Siemens drive systems and industrial electronics. This unit features a sophisticated 4-wire interface, including an integrated PWM speed control input and a speed signal (FG) output for real-time monitoring. Driven by an electronically commutated external rotor motor with auto-restart locked-rotor protection, it delivers a precise Max. Power Consumption of 22.0 W and a Max. Current Draw of 0.92 A at 24 V DC. Operating at a peak rated speed of 5000 RPM, it provides a high-velocity airflow of 285.0 m³/h (167.7 CFM) to maintain optimal temperature in high-power VFD cabinets. Constructed with a die-cast aluminum metal housing and a 5-blade glass-fiber reinforced plastic impeller with precision dual ball bearings, this 390 g unit ensures maximum cooling performance and long-term mechanical stability for integrated industrial switchgear systems at the end.
4114N/2H3P-309 Fan Parameters

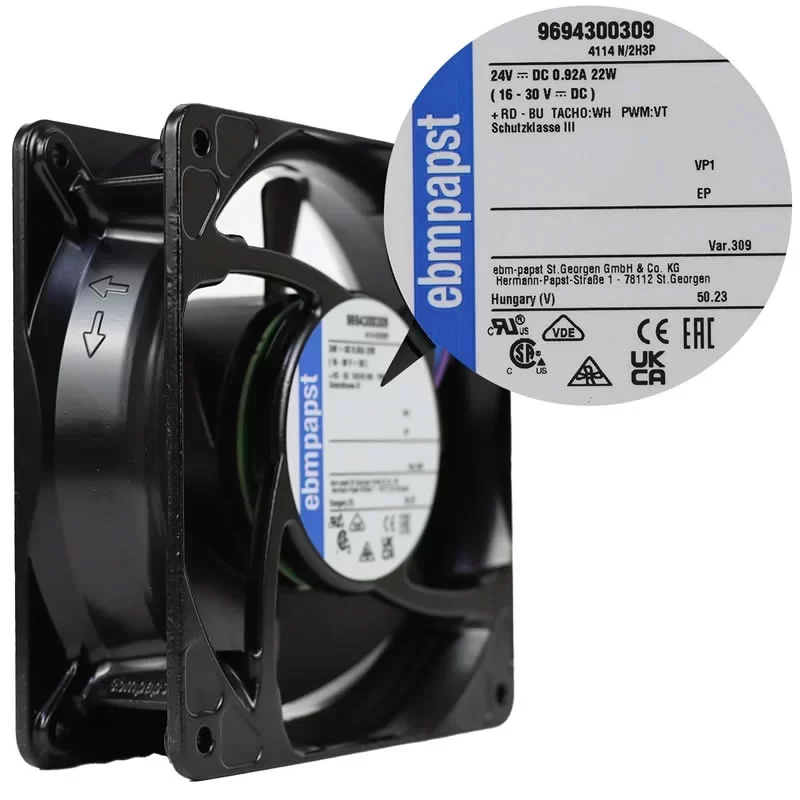

Model Number: 4114N/2H3P-309
Part Number: 9694300309
Manufacturer: ebmpapst
Type: DC Axial Fan (PWM Control)
Dimensions: 119.0 x 119.0 x 38.0 mm
Weight: 390 g
Bearing Type: Ball bearing
Nominal Voltage: 24 V DC
Voltage Range: 16.0 – 30.0 V DC
Max. Power Consumption: 22.0 W
Max. Current Draw: 0.92 A (920 mA)
Starting Current: 1.50 A
Rated Speed: 5000 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Working Air Flow: 285.0 m³/h (167.7 CFM)
Static Pressure Increase: 215 Pa (0.86 inH₂O)
Speed Control: PWM (Pulse Width Modulation)
Speed Signal: Open Collector (Tachometer output)
Motor Protection: Auto-restart locked rotor and reverse polarity protection
Insulation Class: Class E
Electrical Hookup: 4 lead wires (Red: +UB, Blue: GND, White: FG, Violet: PWM)
Wire Length: 310 mm (22 AWG)
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward rotor)
Airflow Direction: Intake over struts
Housing Material: Metal (Die-cast aluminum)
Impeller Material: Glass-fiber reinforced PA plastic
Operation Mode: S1 (Continuous operation)
Sound Power Level: 6.6 bel(A)
Sound Pressure Level: 57.0 dB(A)
Service Life (L10): 70,000 h (at 40 °C) / 35,000 h (at 70 °C)
Operating Temperature: -20 – +70 °C
Storage Temperature: -40 – +80 °C
Degree of Protection: IP20
Standard Compliance: DIN EN 60335; CE; EAC
Approval Agency: VDE; CSA; UL
Application
The ebmpapst 4114N/2H3P-309 DC fan is designed for Siemens SINAMICS drive cooling and high-density industrial control cabinets requiring precise PWM-based variable speed thermal control.
