Description

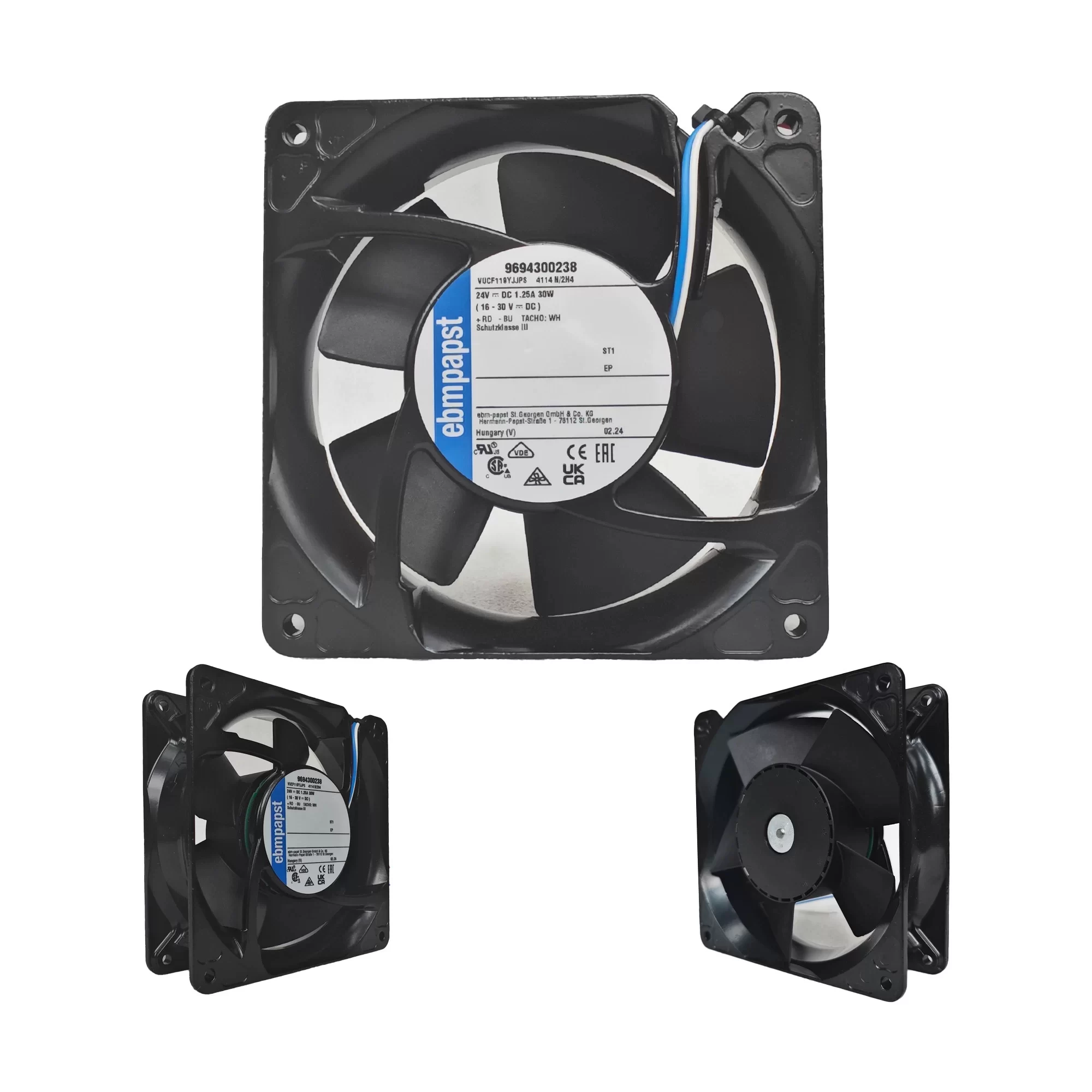

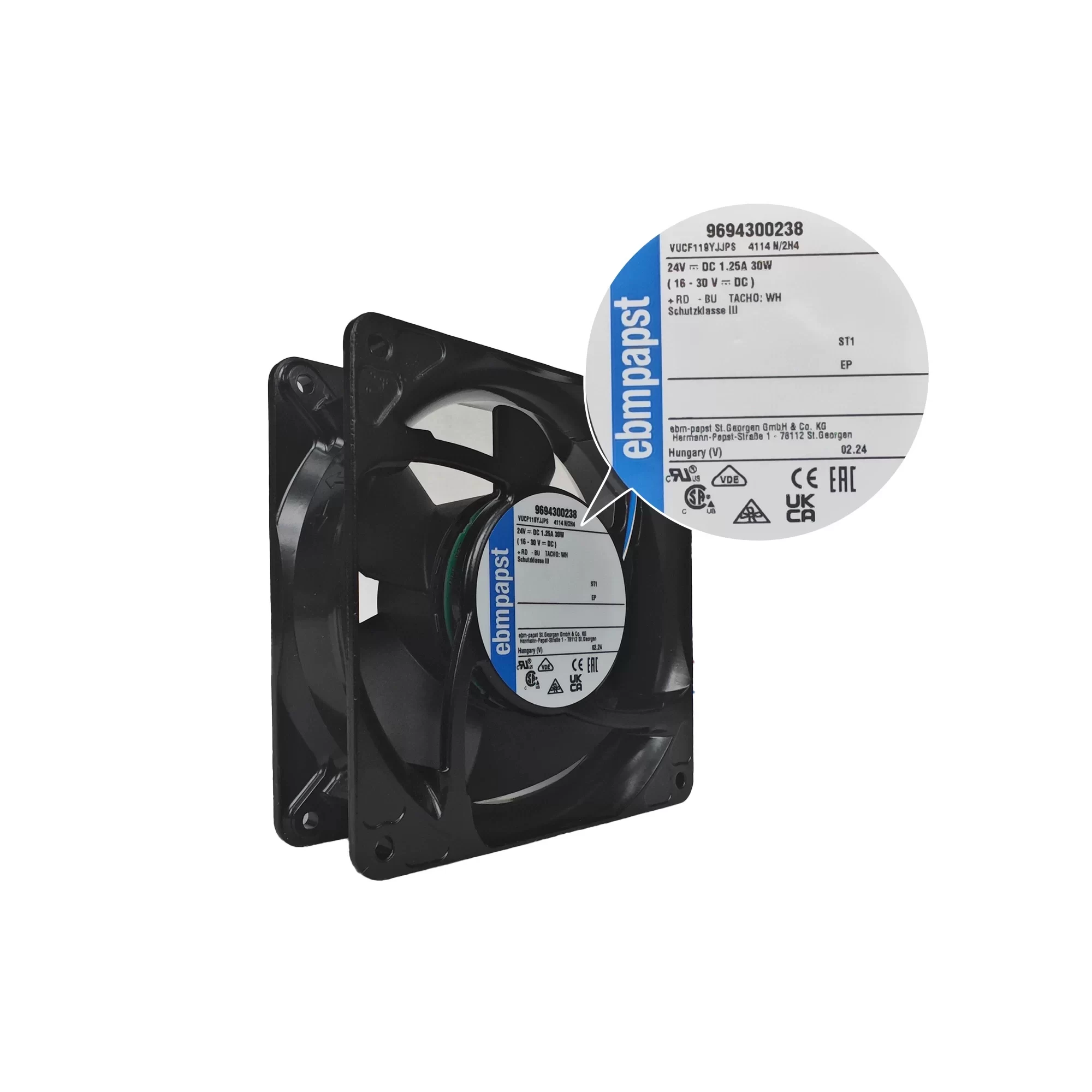

The ebmpapst 4114N/2H4 is a 24VDC axial fan with dimensions of 119x119x38mm. This model, part number 9694300238, operates within a 16-30VDC range, drawing 1.25A of current and consuming 30W of power. It delivers an airflow of 350m³/h (206CFM) and achieves a static pressure of 400Pa. It operates at a high speed of 6800RPM, with a noise level of 67dB(A). Featuring durable ball bearings and three wire leads (with tachometer output for speed monitoring), it is constructed with a metal housing and a plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 65°C and has a typical service life of 62,500 hours at 40°C.
4114N/2H4 Fan Parameters
Manufacturer: ebmpapst
Model: 4114N/2H4
Part number: 9694300238
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 30 VDC
Current Rating: 1.25 A
Power Consumption: 30 W
Airflow: 350 m³/h (206 CFM)
Static Pressure: 400 Pa
Speed: 6800 RPM
Noise Level: 67 dB(A)
Bearing Type: Ball Bearing
Termination: Three Wire Leads (Tachometer)
Operating Temperature: -20 ~ 65°C
Lifetime @ Temp: 62,500 Hours (at 40°C)
Housing Material: Metal
Impeller Material: Plastic
IP Rating: IP20
Weight: 0.39 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for high-performance cooling in demanding electronic systems, industrial equipment, and server applications where high airflow and static pressure are required.
