Description

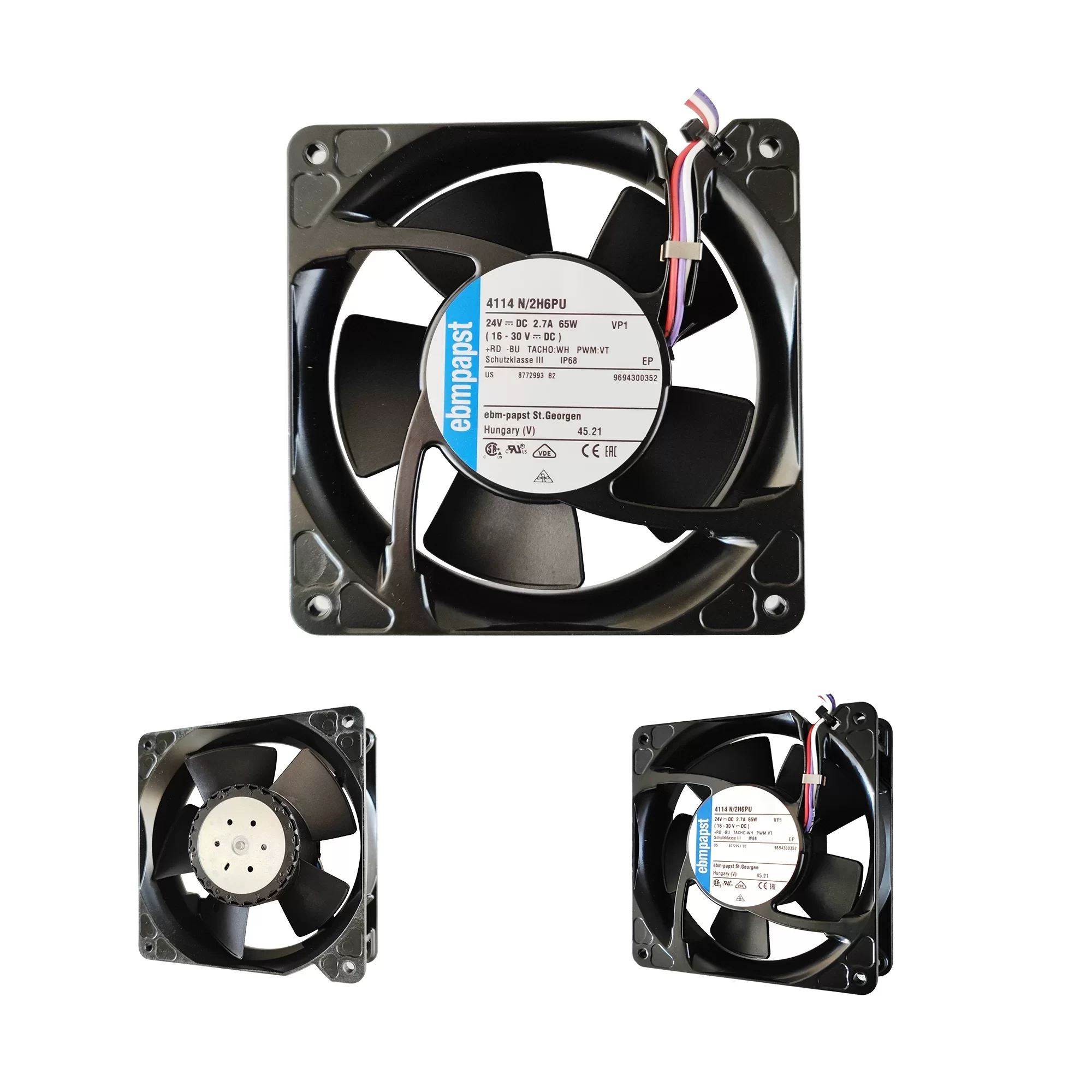

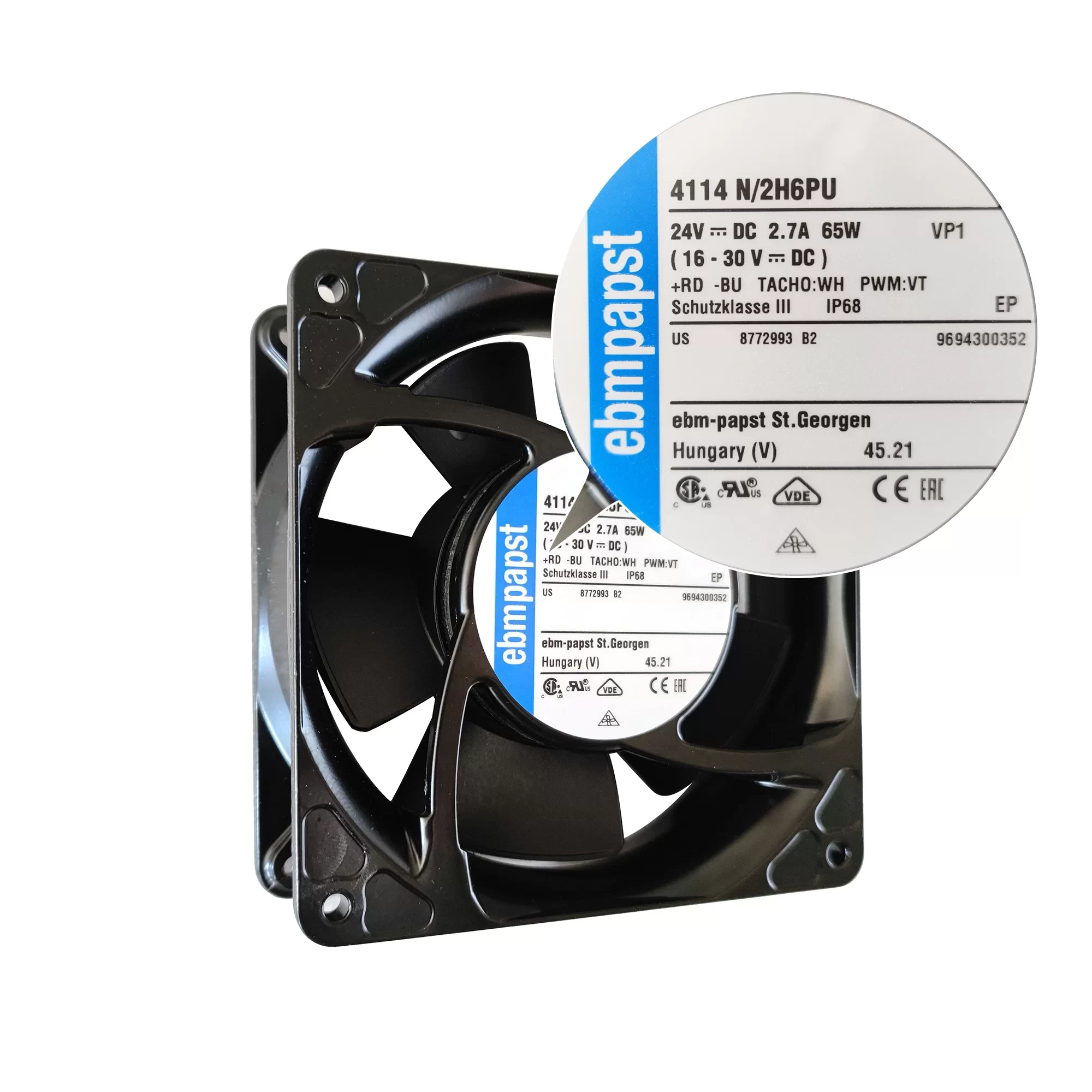

The ebmpapst 4114N/2H6PU is a DC Axial Fan measuring 119x119x38mm. It operates on 24VDC with a wide operating voltage range of 10 to 28VDC. This fan draws 2.7A of current, consumes 65W of power, and achieves a high speed of 8400 RPM. It provides a static pressure of 860 Pa. It is built with a die-cast aluminum housing and a fiberglass-reinforced PA plastic impeller. The fan features a durable ball bearing system and includes protection against reverse polarity and a locked rotor. With an IP20 ingress protection level and a long lifespan of 80000 hours, it is a reliable solution for cooling applications in industrial and electronic equipment.
4114N/2H6PU Fan Parameters
Model: 4114N/2H6PU
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10 to 28 VDC
Current Draw: 2.7 A
Power Input: 65 W
Fan Speed: 8400 RPM
Static Pressure: 860 Pa
Bearing Type: Ball Bearing
Protection Level: IP20
Weight: 0.350 kg
Lifespan: 80000 h at 40°C
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Fiberglass-reinforced PA plastic
Operating Temperature: -20 to 70 °C
Motor Protection: Protection against reverse polarity and locked rotor
Application: Cooling in industrial and electronic equipment.
