Description

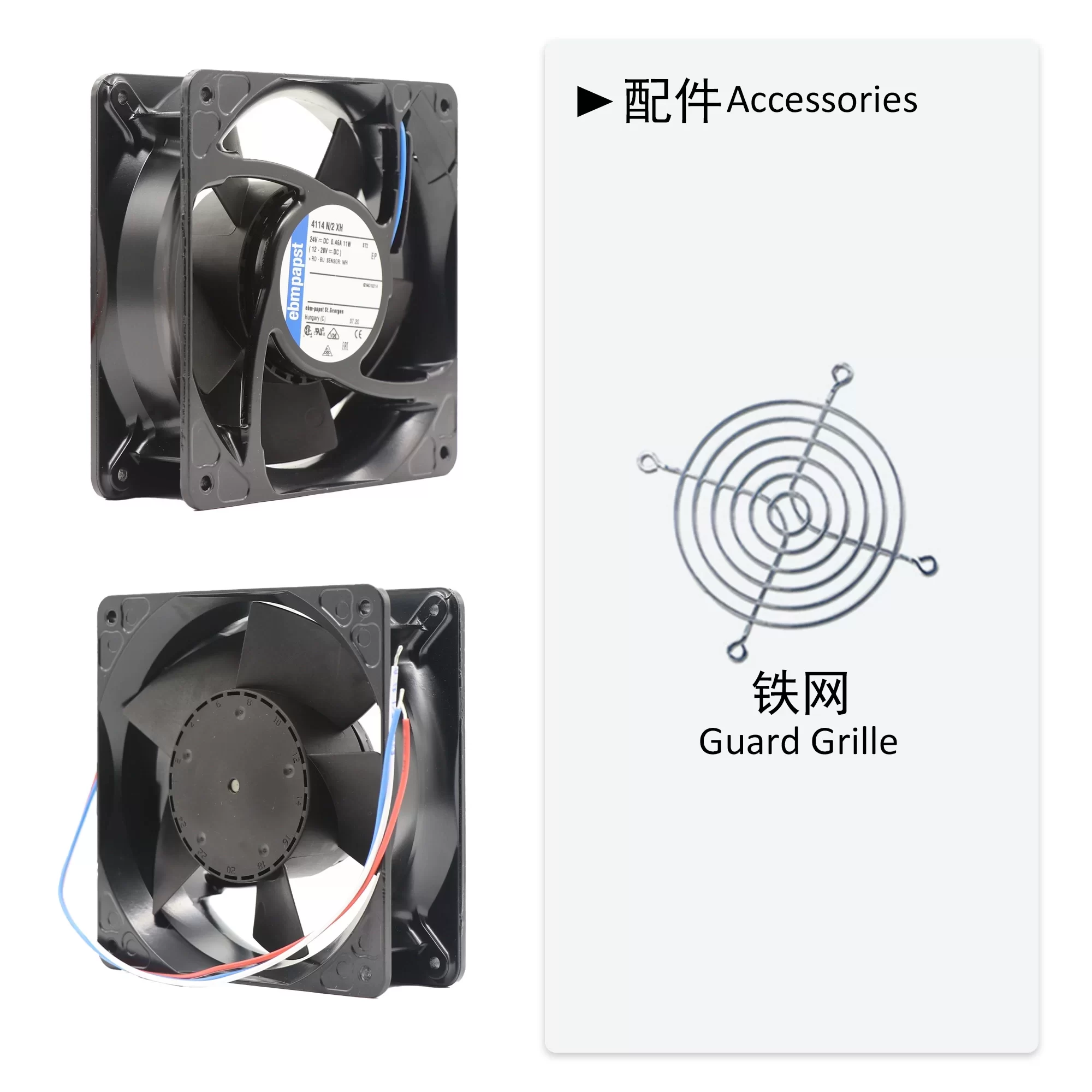

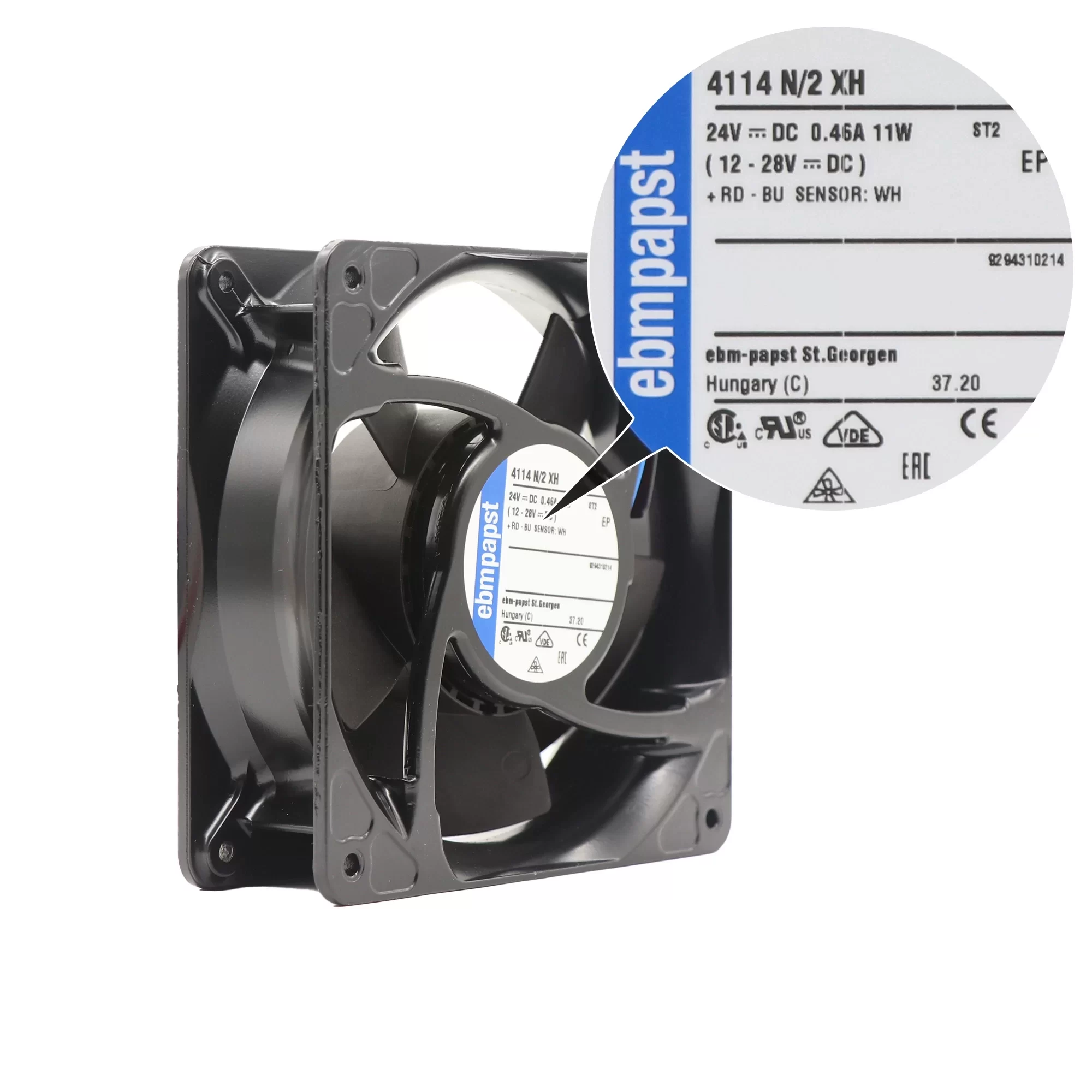

The ebmpapst 4114N/2XH is a high-performance DC axial fan, measuring 119x119x38mm, designed for demanding cooling applications. Operating at 24VDC within a 12-28V range, it draws 0.46A of current and consumes 11W of power. This fan delivers an airflow of 227.0m³/h and a static pressure of 180Pa at a speed of 4400RPM. It features durable ball bearings and comes with 3 wire leads, providing a speed signal output for monitoring. Built with a robust metal housing and a plastic impeller, it ensures reliable performance within an ambient temperature range of -20 to 70°C, and is certified by CE, EAC, UL, VDE, and CSA.
4114N/2XH Fan Parameters
Manufacturer: ebmpapst
Model: 4114N/2XH
Fan Type: Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 28 VDC
Current Rating: 0.46 A
Power Consumption: 11 W
Airflow: 227.0 m³/h
Static Pressure: 180 Pa
Speed: 4400 RPM
Noise Level: Not specified
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Fan Features: Speed Signal
Operating Temperature: -20 ~ 70°C
Frame Material: Metal
Blade Material: Plastic
IP Rating: IP20
Weight: 0.38 kg
Approval Agency: CE, EAC, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for various high-airflow cooling requirements in industrial setups, power supplies, telecommunications equipment, and other electronic devices.
