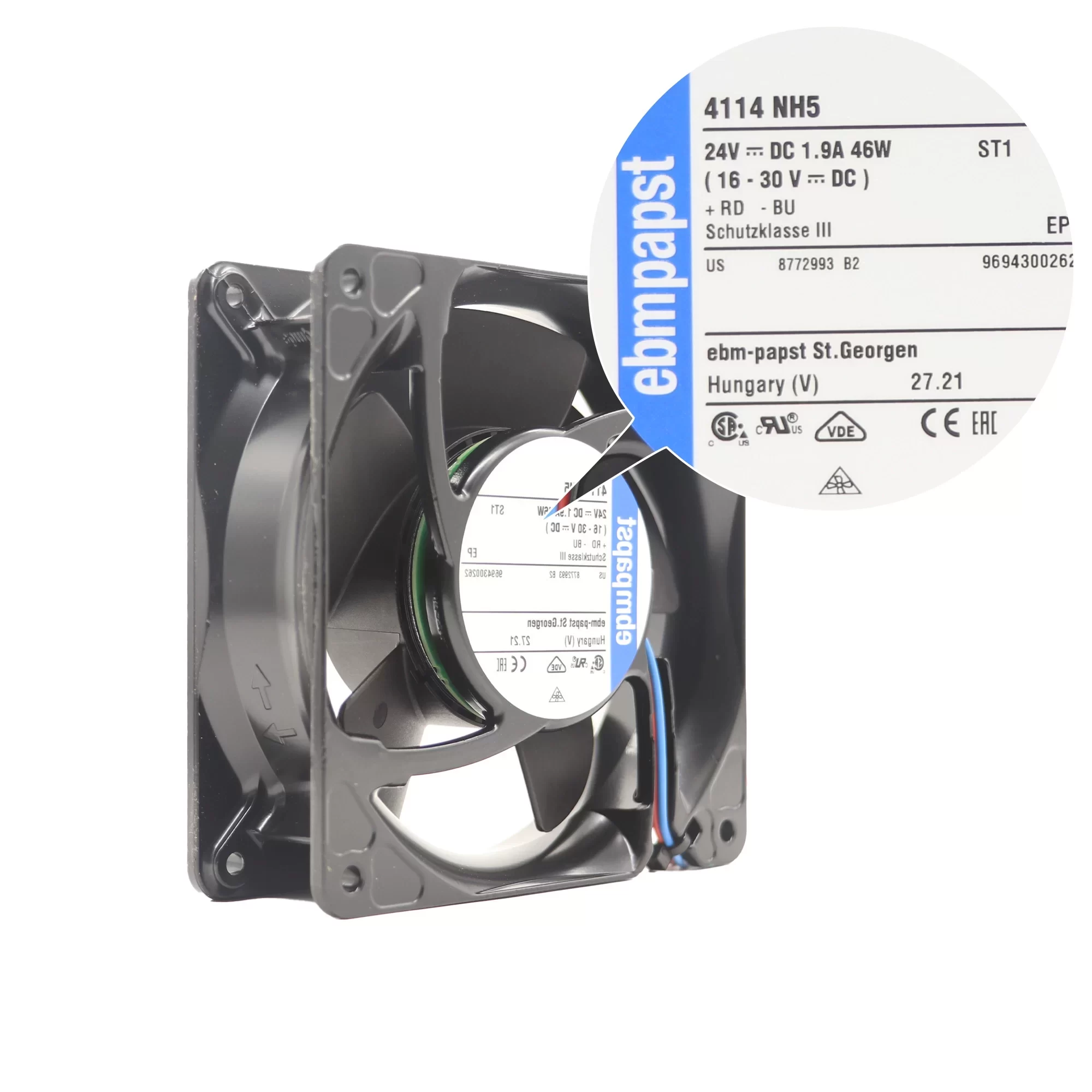

4114NH5 ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4114NH5 is a 24VDC axial fan with dimensions of 119x119x38mm. Operating within a 16-30VDC range, it draws 1.9A of current and consumes 46W of power. This fan delivers an airflow of 390m³/h (229CFM) and operates at a high speed of 7500RPM, with a noise level of 70dB(A). Featuring durable ball bearings and 2 wire leads, it is constructed with a die-cast aluminum frame and a PA plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 65°C and has a typical service life of 60,000hours at 40°C.

4114NH5 Fan Parameters
Manufacturer: ebmpapst
Model: 4114NH5
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 30 VDC
Current Rating: 1.9 A
Power Consumption: 46 W
Airflow: 390 m³/h (229 CFM)
Speed: 7500 RPM
Noise Level: 70 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 65°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Frame Material: Die-cast aluminum
Blade Material: PA plastic
IP Rating: IP20
Weight: 0.39 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst DC axial fan is highly suitable for demanding cooling applications in electronic enclosures, servers, inverter cooling, and other systems where high airflow and compact design are critical.
