Description

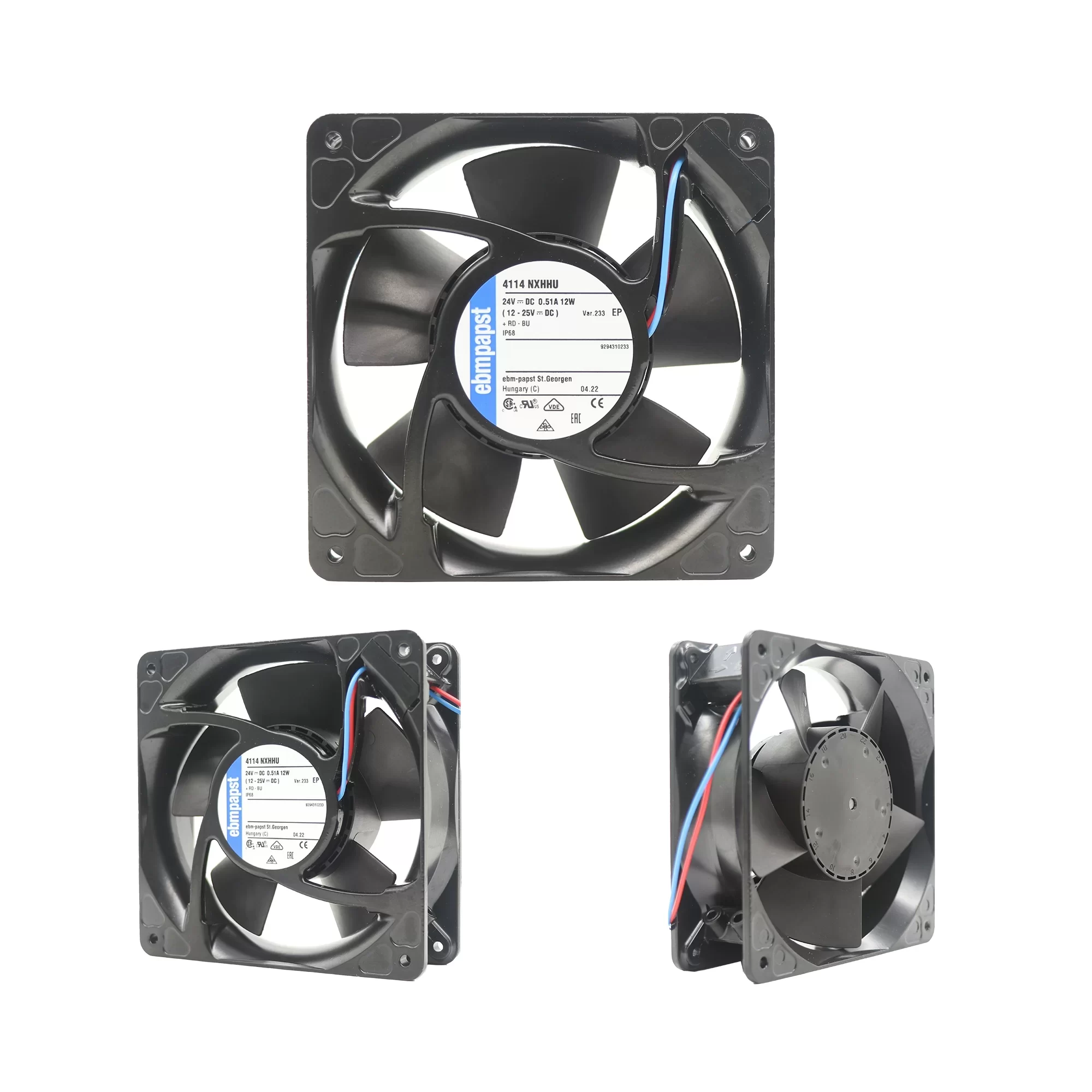

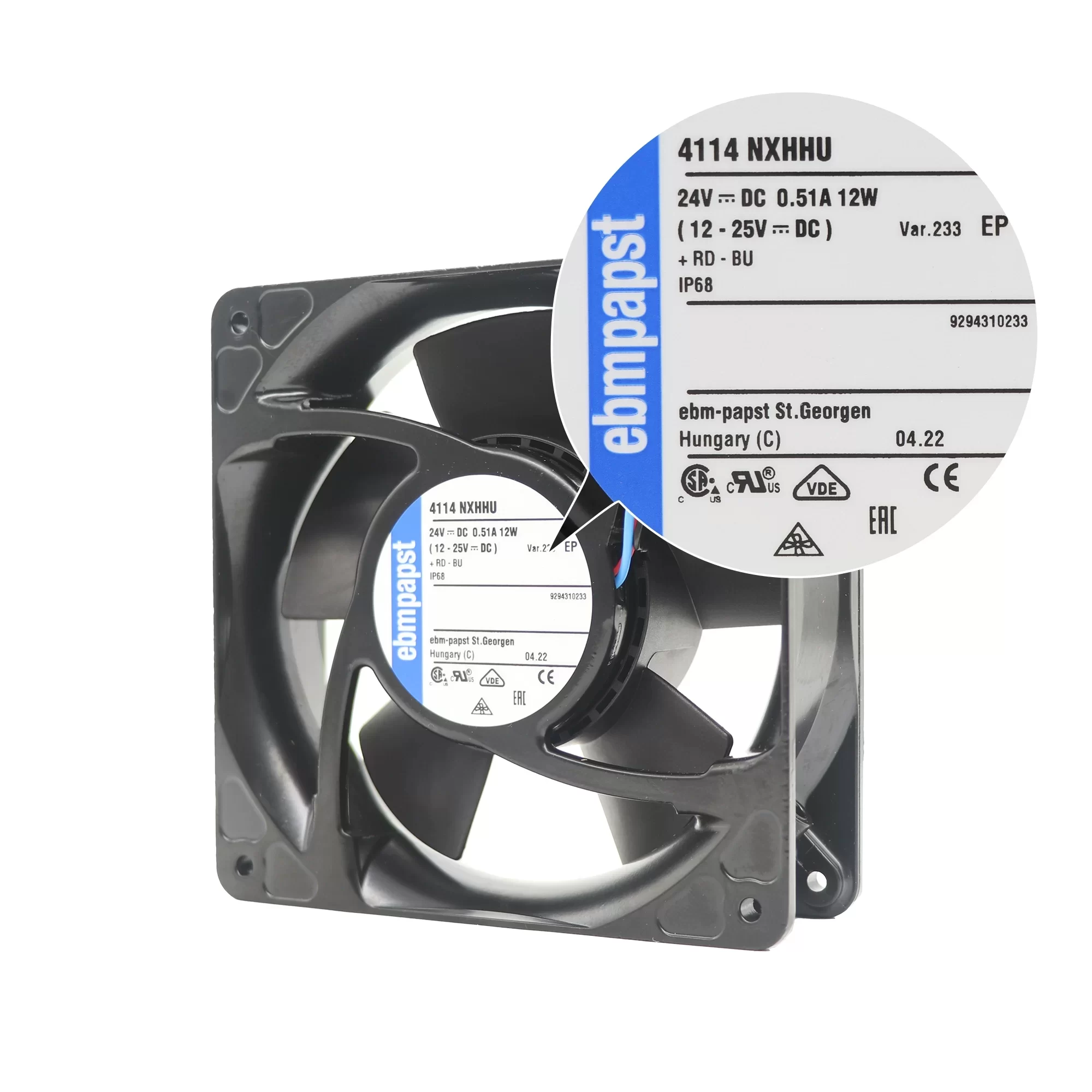

The ebmpapst 4114NXHHU-233 is a DC Axial Fan measuring 119x119x38mm. It operates at a nominal voltage of 24VDC within a wide operating voltage range of 12 to 25VDC. This fan draws 0.51A of current, consumes 12W of power, achieving a speed of 4900 RPM, and provides an airflow of 260 m³/h (153 CFM) at a noise level of 60 dB(A). It is built with a die-cast aluminum housing and a glass-fiber reinforced PA plastic impeller. The fan features a durable ball bearing system and has an IP68 ingress protection level, making it highly resistant to dust and water. It includes protection against reverse polarity and a blocked rotor, making it a reliable solution for cooling demanding electronic and industrial equipment in harsh environments.
4114NXHHU-233 Fan Parameters
Model: 4114NXHHU-233
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 to 25 VDC
Current Draw: 0.51 A
Power Input: 12 W
Fan Speed: 4900 RPM
Airflow: 260 m³/h (153 CFM)
Noise Level: 60 dB(A)
Bearing Type: Ball Bearing
Protection Level: IP68
Weight: 0.390 kg
Termination: 2-Pin Stranded Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20 to 65 °C
Motor Protection: Protection against reverse polarity and blocked rotor
Application: Cooling of demanding electronic and industrial equipment in harsh environments.
