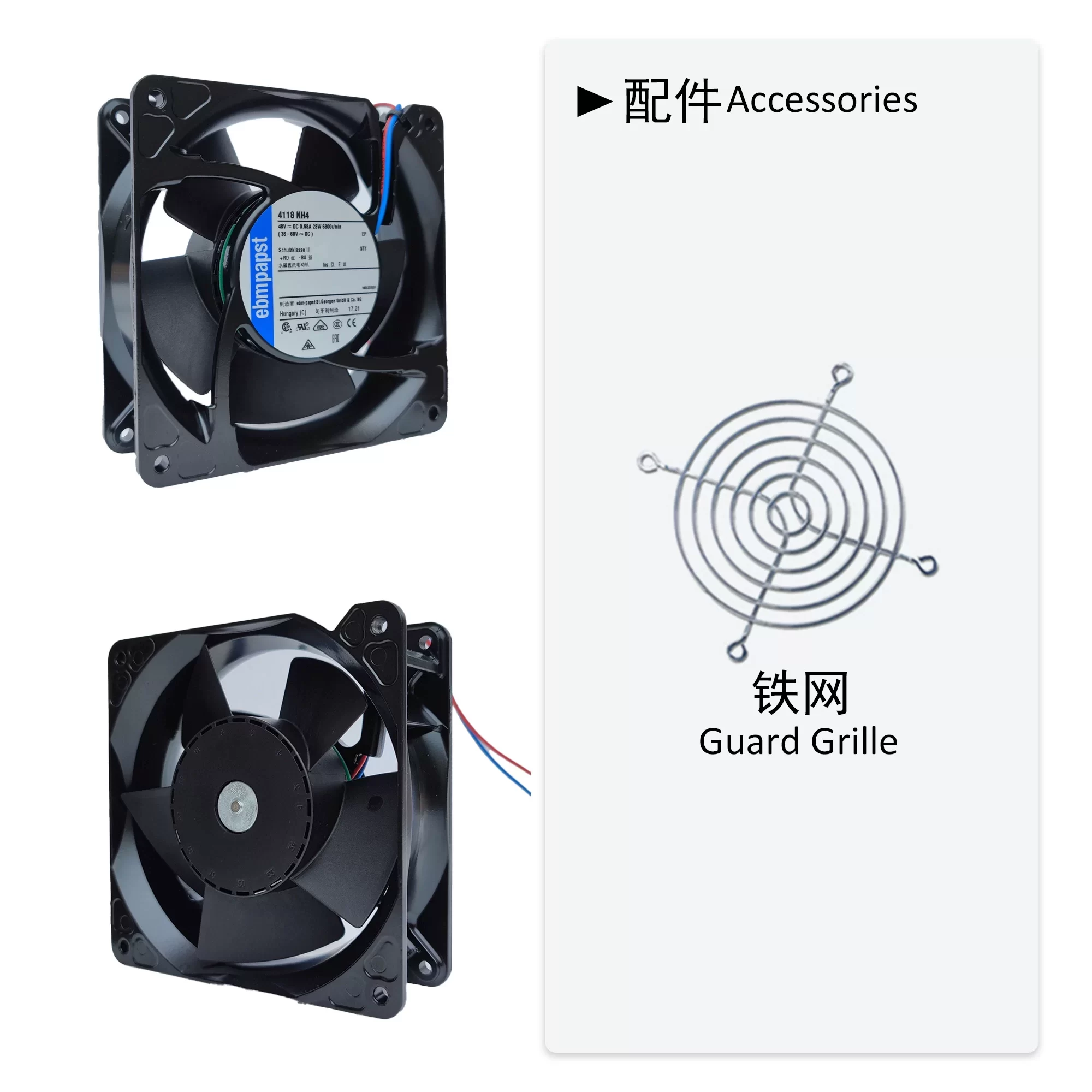

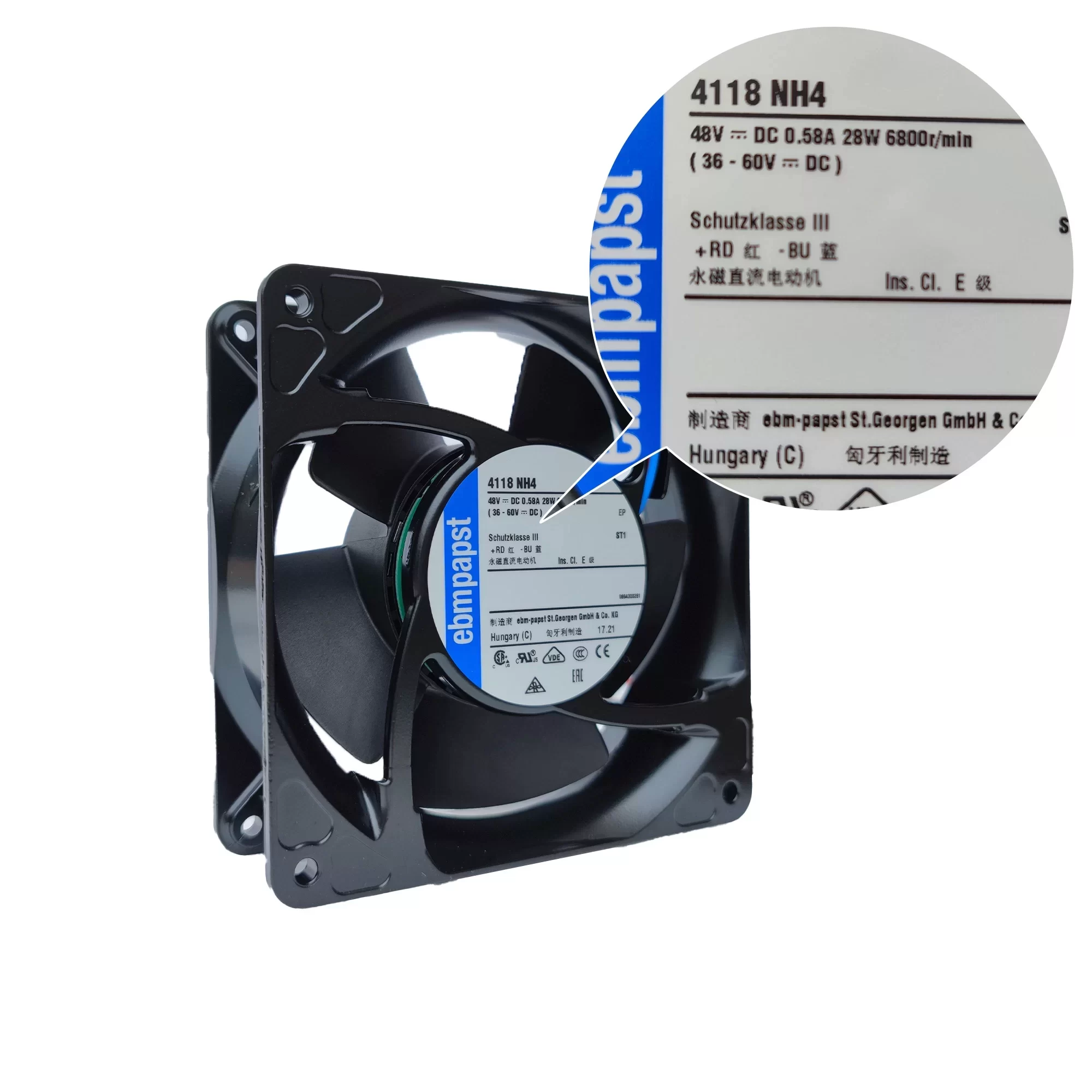

4118NH4 ebmpapst 48V DC Axial Fan

Description

The ebmpapst 4118NH4 is a 48VDC axial fan with dimensions of 119x119x38mm. Operating within a 36-60VDC range, it draws 0.58A of current and consumes 28W of power. This fan delivers an airflow of 350m³/h (206CFM) and a high static pressure of 400Pa. It operates at a speed of 6800RPM, with a noise level of 67dB(A). Featuring durable ball bearings and 2 wire leads, it is constructed with a metal housing and a plastic impeller, boasting an IP20 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -20 to 65°C and has a typical service life of 62,500hours at 40°C.

4118NH4 Fan Parameters
Manufacturer: ebmpapst
Model: 4118NH4
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 48 VDC
Operating Voltage Range: 36 ~ 60 VDC
Current Rating: 0.58 A
Power Consumption: 28 W
Airflow: 350 m³/h (206 CFM)
Static Pressure: 400 Pa
Speed: 6800 RPM
Noise Level: 67 dB(A)
Bearing Type: Ball Bearing
Termination: 2 Wire Leads
Operating Temperature: -20 ~ 65°C
Lifetime @ Temp: 62,500 Hours (at 40°C)
Housing Material: Metal
Impeller Material: Plastic
IP Rating: IP20
Weight: 0.39 kg
Approval Agency: CE, EAC, UL, VDE, CSA, CCC
Application: This ebmpapst DC axial fan is highly suitable for demanding cooling applications in electronic equipment, servers, and industrial systems where high airflow, significant static pressure, and reliable DC operation are essential.
